SDO HMI 2014-08-09 18:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.45 | 80.91 | 0.24 | 42.84 | 9.46 | 174.63 | 19.78 | 281.86 | 0.3420 | 113.1 | 129.3 | |
|
previous
or next observation for the same group /

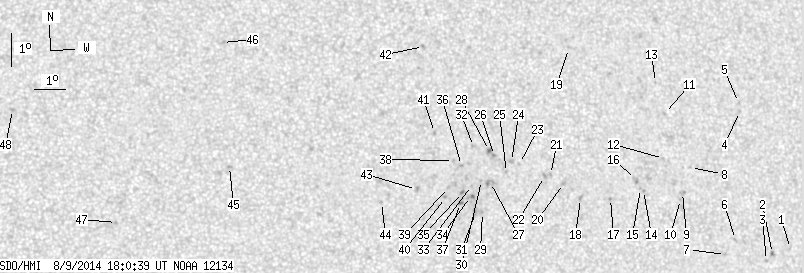

back to the solar disc SDO HMI 2014-08-09 18:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.17 | 0.00 | 0.66 | 6.84 | 183.44 | 28.59 | 272.66 | 0.4776 | -675.0 | -605.3 | |
| 0.00 | 1.90 | 0.00 | 1.06 | 6.72 | 182.80 | 27.96 | 272.39 | 0.4679 | -1005.0 | -781.1 | |
| 0.00 | 1.44 | 0.00 | 0.81 | 6.52 | 182.58 | 27.74 | 271.95 | 0.4645 | -803.0 | -669.9 | |
| 0.00 | 1.44 | 0.00 | 0.80 | 11.09 | 182.02 | 27.17 | 281.94 | 0.4599 | -675.0 | -500.1 | |
| 0.00 | 1.08 | 0.00 | 0.60 | 11.36 | 182.01 | 27.17 | 282.54 | 0.4604 | -568.0 | -547.8 | |
| 0.00 | 1.53 | 0.00 | 0.85 | 7.21 | 181.56 | 26.71 | 273.45 | 0.4486 | -705.0 | -558.2 | |
| 0.00 | 1.08 | 0.00 | 0.60 | 6.77 | 181.19 | 26.34 | 272.46 | 0.4428 | -762.0 | -627.6 | |
| 0.00 | 0.81 | 0.00 | 0.45 | 9.47 | 180.18 | 25.34 | 278.77 | 0.4289 | -721.0 | -566.7 | |
| 0.00 | 2.98 | 0.00 | 1.63 | 8.72 | 179.85 | 25.01 | 277.08 | 0.4228 | -581.0 | -601.4 | |
| 0.00 | 0.90 | 0.00 | 0.49 | 8.51 | 179.77 | 24.92 | 276.59 | 0.4213 | -688.0 | -551.9 | |
| 0.00 | 1.44 | 0.00 | 0.79 | 11.15 | 179.44 | 24.59 | 282.93 | 0.4207 | -699.0 | -598.3 | |
| 0.00 | 0.99 | 0.00 | 0.54 | 9.79 | 179.29 | 24.44 | 279.73 | 0.4155 | -848.0 | -747.0 | |
| 0.00 | 0.81 | 0.00 | 0.44 | 12.11 | 179.23 | 24.38 | 285.28 | 0.4201 | -638.0 | -451.4 | |
| 0.00 | 0.90 | 0.00 | 0.49 | 8.84 | 178.54 | 23.70 | 277.60 | 0.4023 | -773.0 | -693.4 | |
| 0.00 | 0.72 | 0.00 | 0.39 | 8.91 | 178.45 | 23.60 | 277.78 | 0.4009 | -820.0 | -680.4 | |
| 0.00 | 3.88 | 0.00 | 2.10 | 9.19 | 178.30 | 23.45 | 278.51 | 0.3990 | -723.0 | -661.4 | |
| 0.00 | 1.17 | 0.00 | 0.63 | 8.65 | 177.43 | 22.58 | 277.32 | 0.3844 | -901.0 | -712.4 | |
| 0.00 | 2.17 | 0.00 | 1.15 | 8.69 | 176.43 | 21.59 | 277.63 | 0.3685 | -1017.0 | -802.2 | |
| 0.00 | 0.54 | 0.00 | 0.29 | 13.27 | 176.39 | 21.55 | 289.74 | 0.3814 | -582.0 | -500.5 | |
| 0.00 | 2.08 | 0.00 | 1.10 | 9.17 | 175.90 | 21.06 | 279.08 | 0.3607 | -816.0 | -653.2 | |
| 0.00 | 1.53 | 0.00 | 0.81 | 9.46 | 175.49 | 20.65 | 280.03 | 0.3547 | -914.0 | -703.9 | |
| 0.00 | 2.44 | 0.00 | 1.29 | 9.41 | 175.29 | 20.45 | 279.95 | 0.3514 | -819.0 | -759.8 | |
| 0.00 | 1.35 | 0.00 | 0.71 | 9.83 | 174.50 | 19.65 | 281.49 | 0.3396 | 543.0 | 401.9 | |
| 0.00 | 2.26 | 0.00 | 1.19 | 9.91 | 174.24 | 19.39 | 281.81 | 0.3356 | 877.0 | 712.9 | |
| 0.00 | 1.17 | 0.00 | 0.62 | 9.58 | 174.06 | 19.21 | 280.92 | 0.3319 | 646.0 | 540.5 | |
| 0.00 | 1.17 | 0.00 | 0.61 | 10.11 | 173.70 | 18.85 | 282.69 | 0.3275 | 960.0 | 806.9 | |
| 0.00 | 4.60 | 0.00 | 2.41 | 9.29 | 173.52 | 18.67 | 280.28 | 0.3225 | 610.0 | 726.0 | |
| 0.45 | 2.35 | 0.24 | 1.23 | 10.27 | 173.55 | 18.70 | 283.25 | 0.3255 | 991.4 | 816.9 | |
| 0.00 | 0.63 | 0.00 | 0.33 | 8.39 | 173.21 | 18.37 | 277.56 | 0.3158 | 741.0 | 607.6 | |
| 0.00 | 0.99 | 0.00 | 0.52 | 9.36 | 173.23 | 18.38 | 280.62 | 0.3180 | 1062.0 | 802.2 | |
| 0.00 | 3.43 | 0.00 | 1.79 | 8.40 | 172.99 | 18.14 | 277.65 | 0.3121 | 845.0 | 764.4 | |
| 0.00 | 1.90 | 0.00 | 0.99 | 10.41 | 173.03 | 18.19 | 283.97 | 0.3177 | 885.0 | 650.0 | |
| 0.00 | 1.17 | 0.00 | 0.61 | 9.22 | 172.90 | 18.05 | 280.32 | 0.3123 | 682.0 | 580.2 | |
| 0.00 | 3.52 | 0.00 | 1.83 | 8.89 | 172.85 | 18.00 | 279.28 | 0.3108 | 875.0 | 834.6 | |
| 0.00 | 1.62 | 0.00 | 0.85 | 9.02 | 172.60 | 17.75 | 279.80 | 0.3069 | 1124.0 | 905.4 | |
| 0.00 | 0.99 | 0.00 | 0.52 | 9.84 | 172.61 | 17.76 | 282.44 | 0.3092 | 960.0 | 785.2 | |
| 0.00 | 1.90 | 0.00 | 0.99 | 8.69 | 172.52 | 17.67 | 278.75 | 0.3049 | 978.0 | 875.8 | |
| 0.00 | 1.26 | 0.00 | 0.66 | 10.00 | 172.36 | 17.51 | 283.10 | 0.3056 | 779.0 | 500.9 | |
| 0.00 | 1.53 | 0.00 | 0.80 | 9.19 | 172.15 | 17.31 | 280.54 | 0.3000 | 889.0 | 649.8 | |
| 0.00 | 1.35 | 0.00 | 0.70 | 8.89 | 172.04 | 17.20 | 279.59 | 0.2975 | 993.0 | 783.7 | |
| 0.00 | 1.26 | 0.00 | 0.66 | 10.87 | 171.80 | 16.95 | 286.32 | 0.2996 | 804.0 | 707.6 | |
| 0.00 | 1.99 | 0.00 | 1.03 | 13.51 | 171.62 | 16.77 | 294.77 | 0.3103 | 790.0 | 663.5 | |
| 0.00 | 2.89 | 0.00 | 1.49 | 9.16 | 171.12 | 16.28 | 280.97 | 0.2831 | 820.0 | 647.4 | |
| 0.00 | 1.53 | 0.00 | 0.79 | 8.80 | 169.99 | 15.14 | 280.27 | 0.2635 | 781.0 | 492.6 | |
| 0.00 | 1.81 | 0.00 | 0.91 | 10.01 | 165.23 | 10.39 | 290.37 | 0.1903 | 850.0 | 695.5 | |
| 0.00 | 2.08 | 0.00 | 1.05 | 13.80 | 165.16 | 10.32 | 307.13 | 0.2191 | 761.0 | 552.7 | |
| 0.00 | 1.35 | 0.00 | 0.68 | 8.37 | 161.67 | 6.83 | 287.16 | 0.1237 | 793.0 | 600.5 | |
| 0.00 | 1.81 | 0.00 | 0.90 | 11.85 | 158.51 | 3.67 | 326.98 | 0.1154 | 914.0 | 696.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
