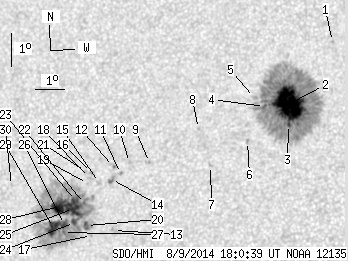

SDO HMI 2014-08-09 18:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 132.59 | 670.68 | 73.83 | 372.22 | 12.51 | 128.81 | -26.04 | 73.91 | 0.4479 | -31.5 | -96.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-09 18:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.17 | 0.00 | 0.63 | 16.09 | 133.29 | -21.56 | 63.39 | 0.3965 | -915.0 | -606.2 | |
| 64.90 | 376.29 | 35.13 | 203.72 | 14.13 | 132.04 | -22.81 | 69.03 | 0.4042 | -1306.6 | -425.5 | |
| 1.17 | -2.00 | 0.63 | -2.00 | 13.49 | 132.07 | -22.77 | 70.55 | 0.4009 | -969.3 | 999999 | |
| 1.35 | -2.00 | 0.74 | -2.00 | 14.01 | 131.20 | -23.65 | 69.89 | 0.4161 | -668.4 | 999999 | |
| 0.00 | 2.26 | 0.00 | 1.23 | 14.27 | 130.83 | -24.02 | 69.53 | 0.4228 | 89.0 | 44.4 | |
| 0.00 | 1.99 | 0.00 | 1.08 | 12.91 | 130.73 | -24.11 | 72.71 | 0.4188 | -670.0 | -468.3 | |
| 0.00 | 1.53 | 0.00 | 0.84 | 12.13 | 129.55 | -25.30 | 75.09 | 0.4342 | 791.0 | 660.7 | |
| 0.00 | 1.08 | 0.00 | 0.60 | 13.24 | 129.01 | -25.83 | 72.85 | 0.4457 | -752.0 | -547.4 | |
| 0.00 | 0.99 | 0.00 | 0.56 | 12.12 | 127.43 | -27.42 | 75.93 | 0.4660 | 958.0 | 860.2 | |
| 0.00 | 1.44 | 0.00 | 0.81 | 12.08 | 126.73 | -28.12 | 76.24 | 0.4764 | 797.0 | 593.9 | |
| 0.00 | 1.62 | 0.00 | 0.92 | 11.73 | 126.45 | -28.40 | 77.05 | 0.4797 | 887.0 | 710.2 | |
| 0.00 | 1.62 | 0.00 | 0.92 | 11.93 | 126.18 | -28.67 | 76.72 | 0.4842 | 765.0 | 558.9 | |
| 0.00 | 2.35 | 0.00 | 1.32 | 9.99 | 126.38 | -28.46 | 80.70 | 0.4775 | 916.0 | 779.2 | |
| 0.00 | 4.15 | 0.00 | 2.35 | 11.54 | 126.15 | -28.69 | 77.55 | 0.4837 | -841.0 | -520.2 | |
| 0.00 | 3.25 | 0.00 | 1.84 | 11.42 | 125.74 | -29.10 | 77.89 | 0.4896 | 58.0 | -33.0 | |
| 0.00 | 1.35 | 0.00 | 0.77 | 11.71 | 125.42 | -29.42 | 77.39 | 0.4949 | 797.0 | 682.9 | |
| 0.00 | 0.99 | 0.00 | 0.56 | 9.80 | 125.63 | -29.22 | 81.23 | 0.4887 | 806.0 | 726.2 | |
| 0.00 | 1.44 | 0.00 | 0.82 | 11.56 | 125.37 | -29.48 | 77.72 | 0.4954 | 722.0 | 639.1 | |
| 0.00 | 0.72 | 0.00 | 0.41 | 11.37 | 125.32 | -29.53 | 78.10 | 0.4957 | 813.0 | 636.0 | |
| 3.16 | 264.37 | 1.80 | 151.64 | 10.09 | 125.42 | -29.43 | 80.67 | 0.4922 | 1061.8 | 343.9 | |
| 0.00 | 0.99 | 0.00 | 0.57 | 11.73 | 125.21 | -29.64 | 77.41 | 0.4981 | 750.0 | 620.6 | |
| 0.54 | -20.00 | 0.31 | -20.00 | 10.76 | 125.28 | -29.57 | 79.35 | 0.4952 | 1046.2 | 999999 | |
| 5.05 | -20.00 | 2.89 | -20.00 | 10.83 | 124.95 | -29.89 | 79.27 | 0.5002 | 992.2 | 999999 | |
| 2.62 | -20.00 | 1.49 | -20.00 | 10.16 | 124.99 | -29.86 | 80.60 | 0.4987 | 1064.2 | 999999 | |
| 19.41 | -20.00 | 11.09 | -20.00 | 10.58 | 124.91 | -29.94 | 79.77 | 0.5005 | 1139.4 | 999999 | |
| 4.33 | -20.00 | 2.48 | -20.00 | 10.08 | 124.64 | -30.21 | 80.82 | 0.5038 | 1043.3 | 999999 | |
| 0.90 | -20.00 | 0.52 | -20.00 | 9.84 | 124.63 | -30.22 | 81.31 | 0.5037 | 823.2 | 999999 | |
| 15.71 | -20.00 | 9.02 | -20.00 | 10.62 | 124.40 | -30.44 | 79.80 | 0.5080 | 907.0 | 999999 | |
| 13.45 | -20.00 | 7.73 | -20.00 | 9.97 | 124.26 | -30.59 | 81.10 | 0.5093 | 935.5 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.63 | 11.16 | 122.60 | -32.25 | 79.10 | 0.5352 | -687.0 | -463.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
