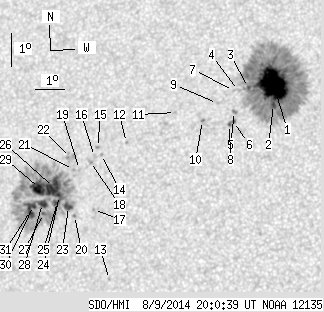

SDO HMI 2014-08-09 20:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 128.15 | 684.45 | 70.70 | 376.47 | 12.44 | 128.79 | -24.95 | 73.54 | 0.4313 | -62.0 | -99.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-09 20:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 59.21 | 374.64 | 31.78 | 201.12 | 14.13 | 132.12 | -21.62 | 68.20 | 0.3864 | -1375.8 | -450.1 | |
| 2.71 | -1.00 | 1.45 | -1.00 | 13.52 | 132.18 | -21.56 | 69.68 | 0.3826 | -1028.9 | 999999 | |
| 1.08 | -1.00 | 0.58 | -1.00 | 14.00 | 131.29 | -22.45 | 69.12 | 0.3982 | -630.8 | 999999 | |
| 0.00 | 1.44 | 0.00 | 0.78 | 13.90 | 130.96 | -22.78 | 69.60 | 0.4026 | -536.0 | -337.9 | |
| 0.00 | 1.99 | 0.00 | 1.07 | 13.25 | 130.89 | -22.85 | 71.20 | 0.4009 | -928.0 | -779.0 | |
| 0.63 | 4.33 | 0.34 | 2.34 | 12.94 | 130.89 | -22.85 | 71.95 | 0.3997 | -849.0 | -614.1 | |
| 0.00 | 0.27 | 0.00 | 0.15 | 13.89 | 130.79 | -22.95 | 69.73 | 0.4051 | -441.0 | -387.7 | |
| 0.45 | -6.00 | 0.24 | -6.00 | 12.85 | 130.76 | -22.98 | 72.26 | 0.4013 | -760.8 | 999999 | |
| 0.00 | 1.44 | 0.00 | 0.78 | 13.47 | 130.29 | -23.45 | 71.05 | 0.4109 | -596.0 | -362.2 | |
| 0.00 | 1.53 | 0.00 | 0.83 | 12.93 | 129.84 | -23.90 | 72.58 | 0.4156 | 841.0 | 620.2 | |
| 0.00 | 0.99 | 0.00 | 0.54 | 13.13 | 128.89 | -24.85 | 72.61 | 0.4306 | -774.0 | -597.1 | |
| 0.00 | 1.08 | 0.00 | 0.60 | 12.14 | 127.30 | -26.44 | 75.54 | 0.4514 | 943.0 | 812.0 | |
| 0.00 | 1.35 | 0.00 | 0.75 | 7.95 | 127.08 | -26.66 | 84.90 | 0.4480 | 655.0 | 532.9 | |
| 0.00 | 1.17 | 0.00 | 0.65 | 11.73 | 126.47 | -27.27 | 76.71 | 0.4628 | 884.0 | 729.0 | |
| 0.00 | 1.44 | 0.00 | 0.81 | 11.94 | 126.31 | -27.43 | 76.33 | 0.4657 | 890.0 | 687.3 | |
| 0.00 | 2.08 | 0.00 | 1.16 | 11.66 | 126.24 | -27.50 | 76.94 | 0.4662 | -176.0 | -91.6 | |
| 0.00 | 0.90 | 0.00 | 0.50 | 10.05 | 126.36 | -27.38 | 80.38 | 0.4612 | 908.0 | 812.4 | |
| 0.00 | 2.26 | 0.00 | 1.26 | 11.50 | 126.11 | -27.63 | 77.32 | 0.4676 | -764.0 | -520.0 | |
| 0.00 | 1.17 | 0.00 | 0.66 | 11.24 | 125.75 | -27.98 | 77.98 | 0.4725 | 578.0 | 502.5 | |
| 0.00 | 1.35 | 0.00 | 0.76 | 9.83 | 125.72 | -28.02 | 80.97 | 0.4706 | 935.0 | 836.3 | |
| 0.00 | 1.17 | 0.00 | 0.66 | 11.23 | 125.54 | -28.19 | 78.06 | 0.4756 | 838.0 | 641.6 | |
| 0.00 | 6.68 | 0.00 | 3.76 | 11.59 | 125.40 | -28.34 | 77.35 | 0.4785 | 811.0 | 671.9 | |
| 4.33 | 277.17 | 2.44 | 157.29 | 10.10 | 125.48 | -28.26 | 80.45 | 0.4746 | 1050.8 | 344.1 | |
| 3.43 | -23.00 | 1.93 | -23.00 | 10.41 | 125.13 | -28.60 | 79.86 | 0.4803 | 1214.3 | 999999 | |
| 4.24 | -23.00 | 2.39 | -23.00 | 10.23 | 125.08 | -28.66 | 80.26 | 0.4808 | 1083.6 | 999999 | |
| 19.22 | -23.00 | 10.87 | -23.00 | 10.65 | 124.90 | -28.84 | 79.43 | 0.4842 | 1119.0 | 999999 | |
| 0.72 | -23.00 | 0.41 | -23.00 | 9.84 | 124.63 | -29.11 | 81.15 | 0.4871 | 772.2 | 999999 | |
| 5.23 | -23.00 | 2.97 | -23.00 | 10.14 | 124.56 | -29.18 | 80.54 | 0.4885 | 1039.5 | 999999 | |
| 16.70 | -23.00 | 9.49 | -23.00 | 10.59 | 124.41 | -29.33 | 79.65 | 0.4914 | 943.4 | 999999 | |
| 2.44 | -23.00 | 1.39 | -23.00 | 10.06 | 124.25 | -29.49 | 80.75 | 0.4930 | 940.7 | 999999 | |
| 7.76 | -23.00 | 4.42 | -23.00 | 9.91 | 124.16 | -29.58 | 81.08 | 0.4942 | 876.6 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
