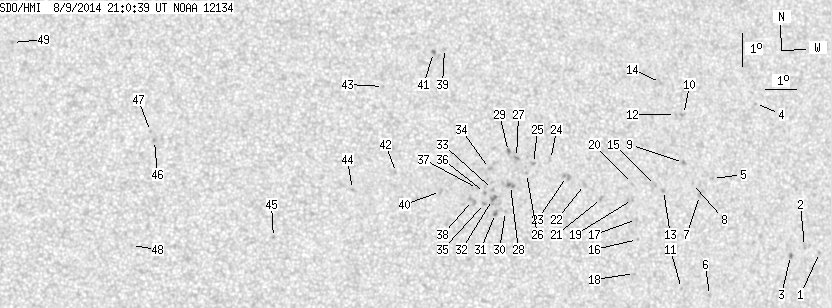

SDO HMI 2014-08-09 21:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.36 | 79.28 | 0.21 | 42.45 | 9.36 | 174.80 | 21.62 | 280.67 | 0.3712 | 87.1 | 112.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-09 21:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.08 | 0.00 | 0.62 | 6.73 | 183.89 | 30.70 | 272.49 | 0.5095 | -652.0 | -546.2 | |
| 0.00 | 2.08 | 0.00 | 1.19 | 6.95 | 183.37 | 30.18 | 272.90 | 0.5017 | -556.0 | -343.8 | |
| 0.36 | 1.90 | 0.21 | 1.08 | 6.70 | 182.86 | 29.67 | 272.39 | 0.4940 | -911.5 | -736.9 | |
| 0.00 | 0.81 | 0.00 | 0.46 | 11.38 | 182.04 | 28.86 | 282.06 | 0.4858 | -726.0 | -593.1 | |
| 0.00 | 1.35 | 0.00 | 0.75 | 9.18 | 180.32 | 27.14 | 277.76 | 0.4563 | -600.0 | -379.9 | |
| 0.00 | 1.44 | 0.00 | 0.80 | 5.64 | 179.98 | 26.79 | 269.91 | 0.4505 | -715.0 | -519.8 | |
| 0.00 | 1.71 | 0.00 | 0.95 | 8.69 | 179.83 | 26.65 | 276.73 | 0.4483 | -668.0 | -546.7 | |
| 0.00 | 0.99 | 0.00 | 0.55 | 9.06 | 179.62 | 26.44 | 277.61 | 0.4454 | -703.0 | -536.9 | |
| 0.00 | 1.90 | 0.00 | 1.05 | 9.72 | 179.37 | 26.18 | 279.13 | 0.4423 | -909.0 | -757.3 | |
| 0.00 | 2.08 | 0.00 | 1.15 | 11.17 | 179.50 | 26.32 | 282.36 | 0.4471 | -673.0 | -591.4 | |
| 0.00 | 0.99 | 0.00 | 0.55 | 5.90 | 179.04 | 25.85 | 270.40 | 0.4356 | -703.0 | -541.4 | |
| 0.00 | 0.99 | 0.00 | 0.55 | 11.19 | 179.23 | 26.04 | 282.48 | 0.4429 | -667.0 | -579.3 | |
| 0.00 | 1.44 | 0.00 | 0.79 | 8.90 | 178.62 | 25.43 | 277.39 | 0.4296 | -927.0 | -741.8 | |
| 0.00 | 1.90 | 0.00 | 1.04 | 12.19 | 178.81 | 25.63 | 284.88 | 0.4392 | -770.0 | -595.0 | |
| 0.00 | 0.99 | 0.00 | 0.54 | 9.06 | 178.36 | 25.17 | 277.82 | 0.4257 | -910.0 | -745.9 | |
| 0.00 | 0.90 | 0.00 | 0.49 | 7.45 | 177.64 | 24.45 | 274.05 | 0.4132 | -668.0 | -569.1 | |
| 0.00 | 1.44 | 0.00 | 0.79 | 8.06 | 177.64 | 24.46 | 275.53 | 0.4136 | -683.0 | -515.2 | |
| 0.00 | 0.72 | 0.00 | 0.39 | 6.43 | 177.48 | 24.29 | 271.55 | 0.4107 | -723.0 | -585.6 | |
| 0.00 | 1.53 | 0.00 | 0.83 | 8.68 | 177.55 | 24.36 | 277.03 | 0.4126 | -771.0 | -556.1 | |
| 0.00 | 0.54 | 0.00 | 0.29 | 9.16 | 177.58 | 24.40 | 278.20 | 0.4138 | -750.0 | -644.3 | |
| 0.00 | 2.08 | 0.00 | 1.12 | 8.75 | 176.51 | 23.33 | 277.40 | 0.3963 | -803.0 | -703.7 | |
| 0.00 | 1.90 | 0.00 | 1.02 | 9.20 | 175.97 | 22.79 | 278.66 | 0.3884 | -720.0 | -596.0 | |
| 0.00 | 4.24 | 0.00 | 2.27 | 9.47 | 175.39 | 22.21 | 279.52 | 0.3796 | -701.0 | -695.0 | |
| 0.00 | 1.53 | 0.00 | 0.82 | 10.01 | 174.90 | 21.71 | 281.11 | 0.3729 | 505.0 | 377.3 | |
| 0.00 | 1.81 | 0.00 | 0.96 | 9.91 | 174.33 | 21.14 | 281.06 | 0.3636 | 834.0 | 682.0 | |
| 0.00 | 1.08 | 0.00 | 0.57 | 9.62 | 174.08 | 20.89 | 280.34 | 0.3589 | 631.0 | 465.0 | |
| 0.00 | 1.90 | 0.00 | 1.00 | 10.12 | 173.78 | 20.59 | 281.84 | 0.3553 | 869.0 | 755.8 | |
| 0.00 | 3.43 | 0.00 | 1.81 | 9.27 | 173.53 | 20.34 | 279.56 | 0.3494 | 774.0 | 751.1 | |
| 0.00 | 2.53 | 0.00 | 1.34 | 10.31 | 173.53 | 20.34 | 282.50 | 0.3518 | 1008.0 | 817.8 | |
| 0.00 | 1.17 | 0.00 | 0.62 | 8.49 | 173.32 | 20.13 | 277.36 | 0.3447 | 733.0 | 542.2 | |
| 0.00 | 2.53 | 0.00 | 1.33 | 8.44 | 172.99 | 19.80 | 277.30 | 0.3393 | 892.0 | 792.0 | |
| 0.00 | 4.69 | 0.00 | 2.47 | 8.87 | 172.91 | 19.73 | 278.59 | 0.3388 | 1091.0 | 841.4 | |
| 0.00 | 1.44 | 0.00 | 0.76 | 9.17 | 172.93 | 19.75 | 279.47 | 0.3396 | 861.0 | 716.2 | |
| 0.00 | 1.08 | 0.00 | 0.57 | 9.82 | 172.87 | 19.69 | 281.38 | 0.3401 | 849.0 | 589.4 | |
| 0.00 | 1.62 | 0.00 | 0.85 | 8.76 | 172.65 | 19.46 | 278.34 | 0.3342 | 975.0 | 775.3 | |
| 0.00 | 1.17 | 0.00 | 0.62 | 9.09 | 172.66 | 19.48 | 279.33 | 0.3351 | 1090.0 | 951.3 | |
| 0.00 | 0.81 | 0.00 | 0.43 | 9.22 | 172.44 | 19.26 | 279.79 | 0.3318 | 892.0 | 666.4 | |
| 0.00 | 4.24 | 0.00 | 2.22 | 8.86 | 172.26 | 19.08 | 278.77 | 0.3282 | 766.0 | 664.4 | |
| 0.00 | 1.26 | 0.00 | 0.66 | 13.53 | 171.66 | 18.48 | 292.94 | 0.3361 | 800.0 | 554.1 | |
| 0.00 | 1.99 | 0.00 | 1.04 | 9.18 | 171.24 | 18.05 | 280.12 | 0.3121 | 730.0 | 703.4 | |
| 0.00 | 1.90 | 0.00 | 0.99 | 13.42 | 171.29 | 18.11 | 293.00 | 0.3299 | 772.0 | 682.4 | |
| 0.00 | 0.63 | 0.00 | 0.33 | 9.80 | 169.85 | 16.67 | 282.90 | 0.2912 | 632.0 | 484.6 | |
| 0.00 | 0.81 | 0.00 | 0.42 | 12.43 | 169.59 | 16.40 | 291.81 | 0.2983 | 814.0 | 596.0 | |
| 0.00 | 1.17 | 0.00 | 0.60 | 9.33 | 168.42 | 15.23 | 282.13 | 0.2664 | 864.0 | 653.5 | |
| 0.00 | 0.90 | 0.00 | 0.46 | 7.94 | 165.86 | 12.68 | 277.95 | 0.2204 | 873.0 | 730.6 | |
| 0.00 | 1.53 | 0.00 | 0.77 | 10.97 | 162.23 | 9.04 | 297.94 | 0.1755 | 792.0 | 604.5 | |
| 0.00 | 0.81 | 0.00 | 0.41 | 11.25 | 162.11 | 8.93 | 299.64 | 0.1759 | 777.0 | 641.1 | |
| 0.00 | 0.72 | 0.00 | 0.36 | 7.79 | 161.43 | 8.24 | 280.45 | 0.1451 | 683.0 | 565.9 | |
| 0.00 | 1.53 | 0.00 | 0.77 | 14.03 | 157.86 | 4.68 | 329.42 | 0.1562 | 878.0 | 658.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
