SDO HMI 2014-08-10 00:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 8.20 | 0.00 | 4.79 | -24.35 | 145.95 | -5.58 | 170.15 | 0.5306 | 17.8 | 220.1 | |
|
previous
or next observation for the same group /

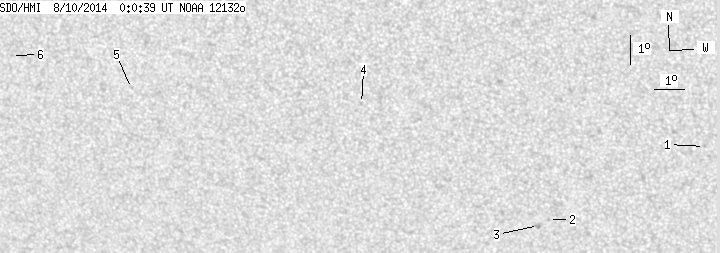

back to the solar disc SDO HMI 2014-08-10 00:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.26 | 0.00 | 0.72 | -23.49 | 154.11 | 2.58 | 184.74 | 0.5014 | 692.0 | 547.2 | |
| 0.00 | 0.99 | 0.00 | 0.58 | -26.08 | 148.88 | -2.65 | 175.57 | 0.5401 | 716.0 | 558.7 | |
| 0.00 | 3.34 | 0.00 | 1.97 | -26.29 | 148.53 | -3.00 | 175.04 | 0.5437 | 735.0 | 539.4 | |
| 0.00 | 1.26 | 0.00 | 0.72 | -22.05 | 142.80 | -8.73 | 163.49 | 0.4970 | -681.0 | -439.7 | |
| 0.00 | 0.63 | 0.00 | 0.37 | -21.72 | 135.10 | -16.42 | 150.62 | 0.5375 | -665.0 | -545.1 | |
| 0.00 | 0.72 | 0.00 | 0.43 | -20.73 | 131.11 | -20.42 | 143.99 | 0.5572 | -690.0 | -485.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
