SDO HMI 2014-08-10 04:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 58.68 | 0.00 | 32.55 | 10.02 | 175.38 | 26.05 | 280.79 | 0.4411 | 42.8 | 77.6 | |
|
previous
or next observation for the same group /

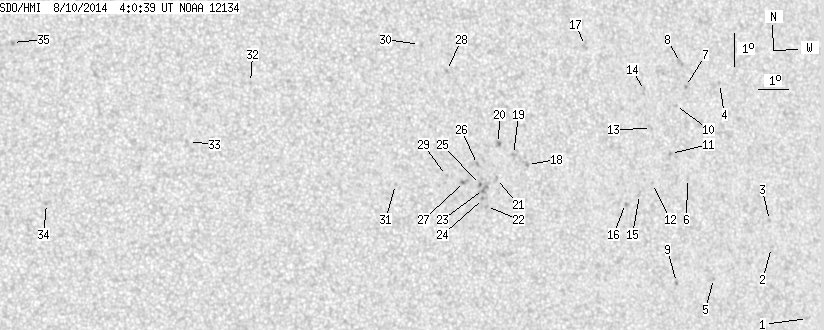

back to the solar disc SDO HMI 2014-08-10 04:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.99 | 0.00 | 1.20 | 4.50 | 184.15 | 34.82 | 268.69 | 0.5716 | -432.0 | -299.8 | |
| 0.00 | 1.08 | 0.00 | 0.64 | 6.74 | 182.97 | 33.64 | 272.57 | 0.5529 | -727.0 | -572.4 | |
| 0.00 | 1.45 | 0.00 | 0.86 | 7.56 | 182.97 | 33.64 | 274.07 | 0.5526 | -654.0 | -521.8 | |
| 0.00 | 1.35 | 0.00 | 0.79 | 11.83 | 181.61 | 32.28 | 282.07 | 0.5366 | -559.0 | -395.1 | |
| 0.00 | 1.08 | 0.00 | 0.63 | 5.92 | 180.81 | 31.48 | 270.91 | 0.5215 | -648.0 | -518.8 | |
| 0.00 | 0.90 | 0.00 | 0.52 | 9.01 | 180.12 | 30.79 | 276.92 | 0.5113 | -557.0 | -450.6 | |
| 0.00 | 1.17 | 0.00 | 0.68 | 11.81 | 180.36 | 31.03 | 282.32 | 0.5185 | -774.0 | -636.2 | |
| 0.00 | 3.34 | 0.00 | 1.93 | 12.55 | 180.28 | 30.95 | 283.76 | 0.5188 | -689.0 | -613.9 | |
| 0.00 | 1.08 | 0.00 | 0.62 | 5.88 | 179.48 | 30.15 | 270.71 | 0.5017 | -814.0 | -687.9 | |
| 0.00 | 1.35 | 0.00 | 0.78 | 11.25 | 179.93 | 30.60 | 281.34 | 0.5112 | -635.0 | -569.6 | |
| 0.00 | 1.26 | 0.00 | 0.72 | 9.80 | 179.59 | 30.26 | 278.55 | 0.5042 | -790.0 | -645.7 | |
| 0.00 | 0.81 | 0.00 | 0.46 | 8.93 | 178.87 | 29.54 | 276.88 | 0.4925 | -633.0 | -536.8 | |
| 0.00 | 0.90 | 0.00 | 0.51 | 10.60 | 179.00 | 29.67 | 280.24 | 0.4964 | -621.0 | -495.5 | |
| 0.00 | 2.98 | 0.00 | 1.70 | 11.77 | 178.88 | 29.55 | 282.62 | 0.4967 | -704.0 | -529.2 | |
| 0.00 | 1.54 | 0.00 | 0.87 | 8.62 | 178.38 | 29.05 | 276.29 | 0.4849 | -566.0 | -508.6 | |
| 0.00 | 0.81 | 0.00 | 0.46 | 8.37 | 177.87 | 28.54 | 275.82 | 0.4770 | -758.0 | -587.0 | |
| 0.00 | 3.52 | 0.00 | 1.98 | 13.25 | 176.97 | 27.64 | 286.29 | 0.4723 | -727.0 | -599.9 | |
| 0.00 | 1.99 | 0.00 | 1.09 | 9.73 | 174.59 | 25.26 | 279.30 | 0.4280 | 502.0 | 382.5 | |
| 0.00 | 1.81 | 0.00 | 0.99 | 10.06 | 174.14 | 24.81 | 280.18 | 0.4216 | 877.0 | 687.8 | |
| 0.00 | 2.62 | 0.00 | 1.42 | 10.41 | 173.66 | 24.33 | 281.17 | 0.4148 | 778.0 | 617.9 | |
| 0.00 | 2.08 | 0.00 | 1.13 | 9.35 | 173.51 | 24.18 | 278.65 | 0.4105 | 642.0 | 541.9 | |
| 0.00 | 1.54 | 0.00 | 0.83 | 8.52 | 173.11 | 23.78 | 276.67 | 0.4032 | 720.0 | 576.7 | |
| 0.00 | 5.33 | 0.00 | 2.88 | 9.04 | 173.05 | 23.72 | 277.97 | 0.4028 | 918.0 | 746.6 | |
| 0.00 | 1.45 | 0.00 | 0.78 | 8.77 | 173.03 | 23.70 | 277.30 | 0.4022 | 815.0 | 705.9 | |
| 0.00 | 1.26 | 0.00 | 0.68 | 9.20 | 172.96 | 23.63 | 278.38 | 0.4016 | 903.0 | 823.3 | |
| 0.00 | 1.72 | 0.00 | 0.93 | 9.81 | 172.90 | 23.57 | 279.92 | 0.4018 | 834.0 | 633.1 | |
| 0.00 | 2.89 | 0.00 | 1.56 | 9.31 | 172.43 | 23.10 | 278.79 | 0.3934 | 776.0 | 754.8 | |
| 0.00 | 1.54 | 0.00 | 0.83 | 12.72 | 172.11 | 22.78 | 287.46 | 0.3976 | 668.0 | 557.8 | |
| 0.00 | 0.99 | 0.00 | 0.53 | 9.52 | 171.84 | 22.51 | 279.49 | 0.3845 | 762.0 | 605.3 | |
| 0.00 | 0.99 | 0.00 | 0.53 | 13.55 | 171.28 | 21.95 | 290.05 | 0.3885 | 150.0 | 198.4 | |
| 0.00 | 1.08 | 0.00 | 0.57 | 9.32 | 170.14 | 20.81 | 279.45 | 0.3569 | 493.0 | 430.2 | |
| 0.00 | 0.99 | 0.00 | 0.52 | 12.59 | 165.62 | 16.29 | 292.35 | 0.2972 | 717.0 | 565.8 | |
| 0.00 | 0.81 | 0.00 | 0.42 | 10.85 | 163.52 | 14.19 | 288.66 | 0.2552 | 436.0 | 460.9 | |
| 0.00 | 1.08 | 0.00 | 0.55 | 9.07 | 158.97 | 9.64 | 286.34 | 0.1731 | 911.0 | 722.8 | |
| 0.00 | 1.90 | 0.00 | 0.96 | 14.00 | 158.07 | 8.74 | 312.24 | 0.2001 | 885.0 | 755.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
