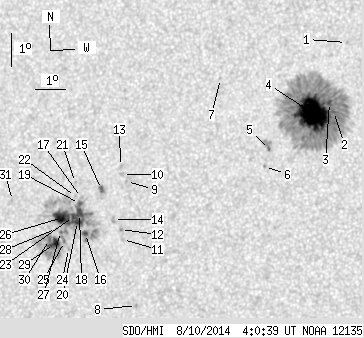

SDO HMI 2014-08-10 04:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 124.46 | 600.23 | 66.12 | 317.82 | 12.88 | 129.89 | -19.44 | 68.74 | 0.3499 | -245.0 | -150.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-10 04:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.08 | 0.00 | 0.57 | 16.33 | 133.43 | -15.90 | 56.08 | 0.3183 | -743.0 | -672.5 | |
| 0.72 | 395.05 | 0.38 | 206.12 | 14.20 | 133.17 | -16.16 | 62.54 | 0.3055 | -1047.8 | -436.7 | |
| 2.62 | -2.00 | 1.36 | -2.00 | 14.47 | 133.02 | -16.31 | 61.93 | 0.3096 | -968.6 | 999999 | |
| 71.80 | -2.00 | 37.46 | -2.00 | 14.12 | 132.49 | -16.84 | 63.65 | 0.3150 | -1374.0 | 999999 | |
| 0.45 | 7.23 | 0.24 | 3.79 | 12.97 | 131.16 | -18.17 | 68.43 | 0.3282 | -1006.0 | -786.8 | |
| 0.00 | 0.99 | 0.00 | 0.52 | 12.45 | 131.04 | -18.29 | 70.07 | 0.3275 | -763.0 | -629.3 | |
| 0.00 | 0.99 | 0.00 | 0.53 | 15.09 | 129.36 | -19.97 | 64.43 | 0.3672 | -723.0 | -626.5 | |
| 0.00 | 1.08 | 0.00 | 0.58 | 8.06 | 127.10 | -22.23 | 84.28 | 0.3780 | 846.0 | 694.0 | |
| 0.00 | 0.90 | 0.00 | 0.49 | 11.82 | 126.50 | -22.83 | 74.79 | 0.3952 | 892.0 | 770.6 | |
| 0.00 | 2.08 | 0.00 | 1.12 | 12.03 | 126.35 | -22.98 | 74.35 | 0.3983 | 766.0 | 657.2 | |
| 0.00 | 1.63 | 0.00 | 0.87 | 10.05 | 126.51 | -22.82 | 79.25 | 0.3904 | 694.0 | 557.6 | |
| 0.00 | 1.26 | 0.00 | 0.68 | 10.35 | 126.42 | -22.91 | 78.51 | 0.3925 | 1001.0 | 873.4 | |
| 0.00 | 1.90 | 0.00 | 1.02 | 12.27 | 126.26 | -23.07 | 73.80 | 0.4005 | 791.0 | 639.0 | |
| 0.00 | 2.80 | 0.00 | 1.51 | 10.64 | 126.16 | -23.17 | 77.87 | 0.3972 | 838.0 | 752.0 | |
| 1.99 | 4.52 | 1.08 | 2.45 | 11.54 | 125.68 | -23.65 | 75.86 | 0.4070 | 836.1 | 454.4 | |
| 2.08 | 15.72 | 1.13 | 8.52 | 10.18 | 125.25 | -24.08 | 79.32 | 0.4104 | 1030.5 | 771.7 | |
| 0.00 | 1.26 | 0.00 | 0.69 | 11.27 | 125.02 | -24.31 | 76.78 | 0.4164 | 389.0 | 390.6 | |
| 5.78 | 109.64 | 3.15 | 59.83 | 10.78 | 125.00 | -24.33 | 77.96 | 0.4156 | 1100.9 | 533.9 | |
| 1.45 | -18.00 | 0.79 | -18.00 | 11.08 | 124.97 | -24.36 | 77.24 | 0.4167 | 854.2 | 999999 | |
| 7.50 | -18.00 | 4.08 | -18.00 | 10.53 | 124.95 | -24.38 | 78.56 | 0.4158 | 1171.6 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.44 | 11.71 | 124.78 | -24.55 | 75.82 | 0.4214 | 547.0 | 458.8 | |
| 0.00 | 0.90 | 0.00 | 0.49 | 11.29 | 124.82 | -24.51 | 76.81 | 0.4196 | 249.0 | 253.4 | |
| 2.89 | -18.00 | 1.58 | -18.00 | 10.68 | 124.80 | -24.53 | 78.26 | 0.4184 | 1114.7 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.59 | 9.70 | 124.71 | -24.62 | 80.63 | 0.4179 | 298.0 | 269.8 | |
| 0.45 | -18.00 | 0.25 | -18.00 | 9.90 | 124.56 | -24.77 | 80.17 | 0.4206 | 814.4 | 999999 | |
| 17.34 | -18.00 | 9.48 | -18.00 | 10.63 | 124.43 | -24.90 | 78.49 | 0.4240 | 974.3 | 999999 | |
| 0.36 | -18.00 | 0.20 | -18.00 | 10.20 | 124.40 | -24.93 | 79.51 | 0.4236 | 949.2 | 999999 | |
| 0.00 | 1.26 | 0.00 | 0.69 | 10.29 | 124.26 | -25.07 | 79.35 | 0.4260 | 723.0 | 549.1 | |
| 7.86 | 47.15 | 4.30 | 25.82 | 9.83 | 124.23 | -25.10 | 80.44 | 0.4257 | 1063.3 | 272.8 | |
| 1.17 | -29.00 | 0.64 | -29.00 | 9.94 | 124.05 | -25.28 | 80.21 | 0.4287 | 852.1 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.50 | 11.07 | 122.67 | -26.66 | 78.04 | 0.4519 | -683.0 | -553.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
