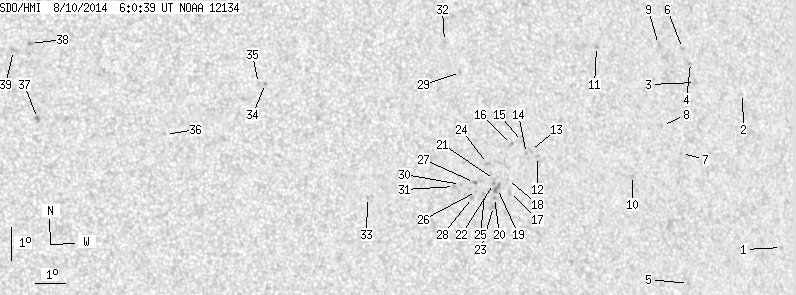

SDO HMI 2014-08-10 06:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 59.23 | 0.00 | 32.44 | 10.39 | 172.48 | 24.24 | 282.82 | 0.4145 | 380.4 | 375.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-10 06:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.99 | 0.00 | 0.60 | 6.73 | 183.03 | 34.80 | 272.60 | 0.5695 | -686.0 | -540.5 | |
| 0.00 | 0.45 | 0.00 | 0.27 | 11.49 | 182.10 | 33.87 | 281.14 | 0.5587 | -608.0 | -533.6 | |
| 0.00 | 2.98 | 0.00 | 1.75 | 11.93 | 180.42 | 32.19 | 282.27 | 0.5354 | -703.0 | -648.2 | |
| 0.00 | 0.81 | 0.00 | 0.48 | 12.55 | 180.32 | 32.09 | 283.45 | 0.5352 | -636.0 | -607.0 | |
| 0.00 | 0.90 | 0.00 | 0.52 | 5.84 | 179.57 | 31.33 | 270.74 | 0.5194 | -839.0 | -673.0 | |
| 0.00 | 1.72 | 0.00 | 1.00 | 12.99 | 180.09 | 31.86 | 284.33 | 0.5329 | -715.0 | -537.9 | |
| 0.00 | 0.99 | 0.00 | 0.58 | 9.80 | 179.65 | 31.42 | 278.38 | 0.5212 | -804.0 | -664.4 | |
| 0.00 | 0.72 | 0.00 | 0.42 | 10.69 | 179.06 | 30.83 | 280.20 | 0.5137 | -669.0 | -494.5 | |
| 0.00 | 0.63 | 0.00 | 0.37 | 13.16 | 179.24 | 31.00 | 284.91 | 0.5210 | -272.0 | -328.3 | |
| 0.00 | 0.63 | 0.00 | 0.36 | 9.23 | 177.84 | 29.60 | 277.48 | 0.4938 | -635.0 | -496.6 | |
| 0.00 | 1.54 | 0.00 | 0.87 | 13.23 | 177.01 | 28.77 | 285.79 | 0.4889 | -839.0 | -692.0 | |
| 0.00 | 1.72 | 0.00 | 0.95 | 9.98 | 174.59 | 26.35 | 279.63 | 0.4452 | 751.0 | 488.8 | |
| 0.00 | 2.26 | 0.00 | 1.25 | 10.18 | 174.36 | 26.13 | 280.12 | 0.4421 | 663.0 | 533.8 | |
| 0.00 | 1.08 | 0.00 | 0.60 | 10.09 | 174.22 | 25.98 | 279.96 | 0.4397 | 924.0 | 764.8 | |
| 0.00 | 1.17 | 0.00 | 0.65 | 10.46 | 174.11 | 25.88 | 280.84 | 0.4388 | 723.0 | 597.9 | |
| 0.00 | 1.54 | 0.00 | 0.84 | 10.39 | 173.73 | 25.49 | 280.77 | 0.4328 | 887.0 | 587.8 | |
| 0.00 | 2.62 | 0.00 | 1.43 | 8.94 | 173.54 | 25.31 | 277.43 | 0.4276 | 675.0 | 498.7 | |
| 0.00 | 1.26 | 0.00 | 0.69 | 9.33 | 173.50 | 25.27 | 278.37 | 0.4275 | 670.0 | 529.7 | |
| 0.00 | 5.06 | 0.00 | 2.76 | 9.08 | 173.14 | 24.91 | 277.83 | 0.4216 | 852.0 | 764.4 | |
| 0.00 | 1.45 | 0.00 | 0.79 | 8.81 | 173.02 | 24.79 | 277.22 | 0.4194 | 896.0 | 728.4 | |
| 0.00 | 0.54 | 0.00 | 0.30 | 9.36 | 173.06 | 24.83 | 278.51 | 0.4207 | 748.0 | 632.8 | |
| 0.00 | 1.17 | 0.00 | 0.64 | 9.24 | 173.02 | 24.78 | 278.24 | 0.4198 | 1043.0 | 887.5 | |
| 0.00 | 4.43 | 0.00 | 2.41 | 8.54 | 172.97 | 24.73 | 276.57 | 0.4182 | 834.0 | 618.6 | |
| 0.00 | 1.72 | 0.00 | 0.94 | 9.85 | 172.86 | 24.63 | 279.74 | 0.4184 | 726.0 | 680.8 | |
| 0.00 | 0.54 | 0.00 | 0.29 | 8.92 | 172.69 | 24.46 | 277.53 | 0.4143 | 797.0 | 630.3 | |
| 0.00 | 0.99 | 0.00 | 0.54 | 9.02 | 172.43 | 24.19 | 277.83 | 0.4103 | 723.0 | 616.5 | |
| 0.00 | 1.54 | 0.00 | 0.83 | 9.30 | 172.38 | 24.15 | 278.51 | 0.4099 | 954.0 | 821.8 | |
| 0.00 | 1.54 | 0.00 | 0.83 | 8.84 | 172.28 | 24.05 | 277.43 | 0.4077 | 841.0 | 640.9 | |
| 0.00 | 1.08 | 0.00 | 0.59 | 12.67 | 172.20 | 23.97 | 286.68 | 0.4155 | 665.0 | 465.6 | |
| 0.00 | 1.08 | 0.00 | 0.59 | 9.26 | 171.91 | 23.67 | 278.52 | 0.4024 | 764.0 | 637.7 | |
| 0.00 | 1.90 | 0.00 | 1.02 | 9.21 | 171.70 | 23.47 | 278.44 | 0.3991 | 943.0 | 741.9 | |
| 0.00 | 0.90 | 0.00 | 0.49 | 13.64 | 171.76 | 23.52 | 289.22 | 0.4125 | 713.0 | 552.6 | |
| 0.00 | 1.26 | 0.00 | 0.67 | 8.99 | 168.80 | 20.56 | 278.61 | 0.3524 | 715.0 | 561.6 | |
| 0.00 | 1.17 | 0.00 | 0.61 | 12.59 | 165.69 | 17.46 | 291.11 | 0.3153 | 779.0 | 621.0 | |
| 0.00 | 1.17 | 0.00 | 0.61 | 12.59 | 165.47 | 17.23 | 291.36 | 0.3118 | 777.0 | 624.2 | |
| 0.00 | 0.81 | 0.00 | 0.42 | 11.13 | 162.38 | 14.14 | 289.75 | 0.2559 | 580.0 | 517.1 | |
| 0.00 | 2.17 | 0.00 | 1.10 | 11.72 | 158.34 | 10.11 | 298.84 | 0.1971 | 1044.0 | 856.5 | |
| 0.00 | 1.90 | 0.00 | 0.96 | 14.01 | 158.22 | 9.98 | 308.63 | 0.2163 | 893.0 | 761.3 | |
| 0.00 | 2.80 | 0.00 | 1.42 | 13.81 | 157.67 | 9.43 | 309.39 | 0.2069 | 662.0 | 626.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
