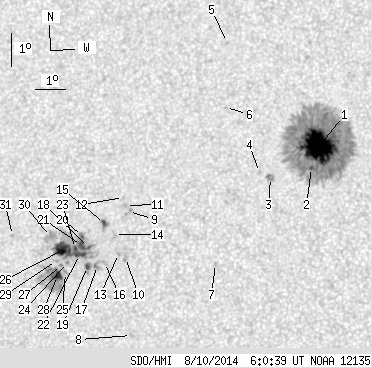

SDO HMI 2014-08-10 06:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 112.46 | 616.67 | 59.26 | 323.88 | 12.99 | 130.21 | -18.02 | 67.11 | 0.3287 | -262.4 | -154.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-10 06:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 69.73 | 427.17 | 36.17 | 221.60 | 14.09 | 132.60 | -15.63 | 62.15 | 0.2969 | -1403.7 | -413.7 | |
| 1.54 | -1.00 | 0.80 | -1.00 | 13.44 | 132.42 | -15.82 | 64.40 | 0.2953 | -762.9 | 999999 | |
| 0.00 | 4.70 | 0.00 | 2.45 | 13.10 | 131.11 | -17.13 | 67.01 | 0.3130 | -784.0 | -852.8 | |
| 0.00 | 1.90 | 0.00 | 0.99 | 13.24 | 130.74 | -17.50 | 66.98 | 0.3194 | -670.0 | -325.0 | |
| 0.00 | 1.26 | 0.00 | 0.67 | 17.20 | 129.32 | -18.91 | 58.01 | 0.3666 | -651.0 | -484.0 | |
| 0.00 | 0.90 | 0.00 | 0.48 | 15.19 | 129.45 | -18.78 | 62.92 | 0.3505 | -761.0 | -594.0 | |
| 0.00 | 0.99 | 0.00 | 0.52 | 10.42 | 129.49 | -18.75 | 76.46 | 0.3266 | -830.0 | -670.7 | |
| 0.00 | 1.72 | 0.00 | 0.91 | 8.13 | 126.86 | -21.37 | 83.98 | 0.3643 | 786.0 | 656.7 | |
| 0.00 | 3.70 | 0.00 | 1.98 | 11.90 | 126.51 | -21.73 | 74.01 | 0.3784 | 604.0 | 734.2 | |
| 0.00 | 3.79 | 0.00 | 2.03 | 10.49 | 126.52 | -21.72 | 77.69 | 0.3740 | 779.0 | 624.4 | |
| 0.00 | 2.44 | 0.00 | 1.31 | 12.07 | 126.39 | -21.84 | 73.61 | 0.3809 | 595.0 | 484.0 | |
| 0.00 | 0.99 | 0.00 | 0.53 | 12.32 | 126.30 | -21.93 | 73.05 | 0.3831 | 721.0 | 550.1 | |
| 0.00 | 1.35 | 0.00 | 0.72 | 10.60 | 126.27 | -21.96 | 77.50 | 0.3781 | 976.0 | 788.2 | |
| 0.00 | 3.43 | 0.00 | 1.84 | 11.18 | 126.10 | -22.14 | 76.08 | 0.3825 | 715.0 | 609.3 | |
| 1.99 | 6.41 | 1.07 | 3.45 | 11.50 | 125.74 | -22.50 | 75.43 | 0.3891 | 906.9 | 532.0 | |
| 0.00 | 2.08 | 0.00 | 1.11 | 10.31 | 125.83 | -22.41 | 78.43 | 0.3844 | 870.0 | 677.4 | |
| 0.00 | 5.06 | 0.00 | 2.72 | 10.21 | 125.60 | -22.63 | 78.77 | 0.3878 | 770.0 | 857.4 | |
| 0.90 | 77.41 | 0.49 | 41.85 | 10.74 | 125.26 | -22.98 | 77.54 | 0.3944 | 1016.3 | 694.5 | |
| 2.17 | 5.15 | 1.17 | 2.77 | 10.17 | 125.27 | -22.96 | 79.00 | 0.3929 | 1033.9 | 769.0 | |
| 0.99 | -18.00 | 0.54 | -18.00 | 11.07 | 125.03 | -23.20 | 76.82 | 0.3988 | 919.0 | 999999 | |
| 4.88 | -18.00 | 2.63 | -18.00 | 10.80 | 125.02 | -23.22 | 77.51 | 0.3983 | 1118.3 | 999999 | |
| 5.87 | -18.00 | 3.17 | -18.00 | 10.52 | 124.97 | -23.26 | 78.21 | 0.3983 | 1161.9 | 999999 | |
| 1.72 | -18.00 | 0.93 | -18.00 | 10.70 | 124.82 | -23.41 | 77.83 | 0.4011 | 1180.3 | 999999 | |
| 0.00 | 1.63 | 0.00 | 0.88 | 10.26 | 124.59 | -23.65 | 78.99 | 0.4038 | 935.0 | 758.4 | |
| 0.00 | 2.26 | 0.00 | 1.22 | 9.95 | 124.55 | -23.69 | 79.76 | 0.4038 | 1047.0 | 726.7 | |
| 17.07 | -18.00 | 9.25 | -18.00 | 10.65 | 124.42 | -23.81 | 78.09 | 0.4072 | 972.4 | 999999 | |
| 0.00 | 1.35 | 0.00 | 0.73 | 10.16 | 124.39 | -23.84 | 79.30 | 0.4066 | 959.0 | 782.9 | |
| 5.60 | 46.61 | 3.04 | 25.30 | 9.85 | 124.28 | -23.95 | 80.09 | 0.4077 | 1150.2 | 347.7 | |
| 0.00 | 1.72 | 0.00 | 0.93 | 10.30 | 124.21 | -24.02 | 79.00 | 0.4097 | 687.0 | 537.6 | |
| 0.00 | 11.02 | 0.00 | 6.00 | 11.03 | 123.95 | -24.28 | 77.35 | 0.4154 | -13.0 | 56.4 | |
| 0.00 | 1.63 | 0.00 | 0.89 | 11.00 | 122.65 | -25.58 | 77.86 | 0.4353 | -816.0 | -608.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
