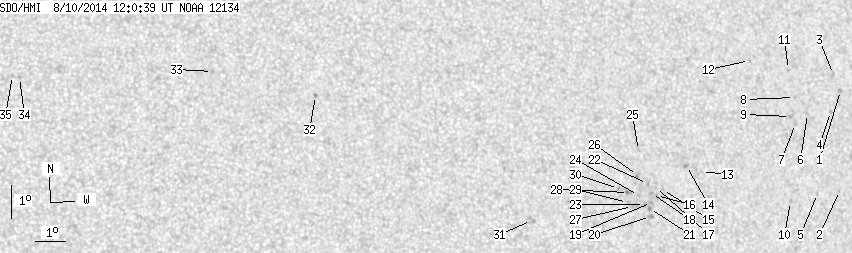

SDO HMI 2014-08-10 12:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 48.12 | 0.00 | 27.17 | 10.41 | 172.87 | 27.93 | 281.72 | 0.4701 | 218.1 | 227.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-10 12:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.26 | 0.00 | 0.77 | 12.12 | 180.41 | 35.47 | 281.96 | 0.5821 | -819.0 | -688.1 | |
| 0.00 | 0.27 | 0.00 | 0.16 | 9.09 | 179.96 | 35.02 | 276.76 | 0.5728 | -708.0 | -603.0 | |
| 0.00 | 1.44 | 0.00 | 0.88 | 12.62 | 180.22 | 35.28 | 282.86 | 0.5803 | -743.0 | -594.9 | |
| 0.00 | 1.35 | 0.00 | 0.82 | 11.51 | 179.94 | 34.99 | 280.98 | 0.5746 | -637.0 | -495.4 | |
| 0.00 | 1.35 | 0.00 | 0.81 | 9.05 | 179.13 | 34.19 | 276.74 | 0.5610 | -589.0 | -401.5 | |
| 0.00 | 0.81 | 0.00 | 0.49 | 11.50 | 179.07 | 34.12 | 281.11 | 0.5624 | -688.0 | -589.4 | |
| 0.00 | 1.54 | 0.00 | 0.91 | 11.22 | 178.58 | 33.64 | 280.70 | 0.5551 | -783.0 | -620.5 | |
| 0.00 | 0.81 | 0.00 | 0.48 | 12.02 | 178.65 | 33.71 | 282.11 | 0.5573 | -690.0 | -581.3 | |
| 0.00 | 1.81 | 0.00 | 1.07 | 11.45 | 178.42 | 33.48 | 281.13 | 0.5532 | -923.0 | -776.6 | |
| 0.00 | 1.54 | 0.00 | 0.91 | 8.87 | 178.11 | 33.17 | 276.47 | 0.5462 | -730.0 | -648.7 | |
| 0.00 | 0.90 | 0.00 | 0.54 | 12.88 | 178.56 | 33.61 | 283.68 | 0.5575 | -721.0 | -588.7 | |
| 0.00 | 1.35 | 0.00 | 0.80 | 13.24 | 177.16 | 32.22 | 284.70 | 0.5386 | -706.0 | -551.6 | |
| 0.00 | 0.27 | 0.00 | 0.15 | 9.97 | 175.00 | 30.06 | 278.90 | 0.5014 | 518.0 | 426.3 | |
| 0.00 | 2.08 | 0.00 | 1.18 | 10.18 | 174.49 | 29.55 | 279.41 | 0.4940 | 830.0 | 685.4 | |
| 0.00 | 1.63 | 0.00 | 0.92 | 9.50 | 173.58 | 28.63 | 278.16 | 0.4794 | 459.0 | 373.9 | |
| 0.00 | 0.81 | 0.00 | 0.46 | 9.32 | 173.35 | 28.41 | 277.83 | 0.4758 | 775.0 | 654.7 | |
| 0.00 | 0.36 | 0.00 | 0.20 | 9.57 | 173.34 | 28.39 | 278.35 | 0.4759 | 659.0 | 655.5 | |
| 0.00 | 1.17 | 0.00 | 0.66 | 9.39 | 173.18 | 28.24 | 278.00 | 0.4733 | 1030.0 | 864.8 | |
| 0.00 | 1.54 | 0.00 | 0.86 | 9.12 | 173.16 | 28.21 | 277.43 | 0.4726 | 968.0 | 704.8 | |
| 0.00 | 2.35 | 0.00 | 1.32 | 8.70 | 173.08 | 28.14 | 276.54 | 0.4712 | 854.0 | 713.3 | |
| 0.00 | 1.54 | 0.00 | 0.86 | 8.94 | 173.07 | 28.13 | 277.06 | 0.4712 | 889.0 | 744.0 | |
| 0.00 | 1.08 | 0.00 | 0.61 | 9.71 | 173.07 | 28.13 | 278.68 | 0.4720 | 744.0 | 630.4 | |
| 0.00 | 1.54 | 0.00 | 0.86 | 9.07 | 172.91 | 27.96 | 277.36 | 0.4688 | 830.0 | 768.4 | |
| 0.00 | 0.90 | 0.00 | 0.51 | 9.36 | 172.72 | 27.78 | 277.99 | 0.4663 | 774.0 | 723.7 | |
| 0.00 | 0.45 | 0.00 | 0.25 | 10.72 | 172.85 | 27.91 | 280.89 | 0.4702 | 537.0 | 446.4 | |
| 0.00 | 2.53 | 0.00 | 1.42 | 9.97 | 172.74 | 27.80 | 279.30 | 0.4674 | 820.0 | 544.5 | |
| 0.00 | 0.72 | 0.00 | 0.40 | 9.03 | 172.49 | 27.54 | 277.33 | 0.4623 | 801.0 | 716.4 | |
| 0.00 | 2.17 | 0.00 | 1.21 | 9.47 | 172.38 | 27.44 | 278.28 | 0.4612 | 1102.0 | 876.4 | |
| 0.00 | 1.54 | 0.00 | 0.86 | 9.16 | 172.32 | 27.38 | 277.64 | 0.4600 | 803.0 | 659.5 | |
| 0.00 | 1.26 | 0.00 | 0.70 | 9.61 | 172.05 | 27.11 | 278.64 | 0.4563 | 848.0 | 654.9 | |
| 0.00 | 4.24 | 0.00 | 2.30 | 8.78 | 169.01 | 24.07 | 277.26 | 0.4080 | 620.0 | 638.7 | |
| 0.00 | 1.08 | 0.00 | 0.56 | 12.87 | 162.16 | 17.21 | 292.21 | 0.3130 | -774.0 | -709.2 | |
| 0.00 | 1.72 | 0.00 | 0.88 | 13.70 | 158.87 | 13.93 | 299.17 | 0.2691 | 696.0 | 577.4 | |
| 0.00 | 1.17 | 0.00 | 0.59 | 13.65 | 152.72 | 7.78 | 314.11 | 0.1840 | 760.0 | 549.1 | |
| 0.00 | 1.54 | 0.00 | 0.77 | 13.71 | 152.50 | 7.56 | 315.17 | 0.1821 | 827.0 | 510.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
