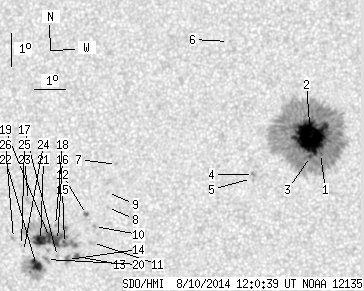

SDO HMI 2014-08-10 12:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 108.36 | 582.86 | 56.06 | 300.62 | 13.15 | 130.72 | -14.22 | 61.53 | 0.2734 | -252.9 | -170.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-10 12:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.44 | 430.10 | 0.74 | 219.84 | 13.60 | 133.24 | -11.71 | 57.03 | 0.2361 | -1128.6 | -393.5 | |
| 66.55 | -1.00 | 34.00 | -1.00 | 14.11 | 132.89 | -12.05 | 55.93 | 0.2456 | -1327.4 | 999999 | |
| 2.17 | -1.00 | 1.11 | -1.00 | 13.50 | 132.92 | -12.02 | 58.04 | 0.2398 | -1064.3 | 999999 | |
| 0.00 | 1.72 | 0.00 | 0.88 | 12.91 | 131.13 | -13.81 | 63.34 | 0.2616 | -1019.0 | -834.3 | |
| 0.00 | 1.17 | 0.00 | 0.60 | 12.79 | 131.07 | -13.87 | 63.87 | 0.2616 | -559.0 | -635.8 | |
| 0.00 | 0.54 | 0.00 | 0.28 | 16.97 | 130.04 | -14.90 | 52.69 | 0.3106 | -498.0 | -518.5 | |
| 0.00 | 1.17 | 0.00 | 0.62 | 13.09 | 126.67 | -18.27 | 68.19 | 0.3304 | 595.0 | 598.5 | |
| 0.00 | 0.99 | 0.00 | 0.52 | 11.76 | 126.47 | -18.47 | 72.23 | 0.3272 | 785.0 | 555.5 | |
| 0.00 | 1.35 | 0.00 | 0.71 | 12.22 | 126.44 | -18.51 | 70.90 | 0.3297 | 799.0 | 571.3 | |
| 0.00 | 1.17 | 0.00 | 0.62 | 11.17 | 126.08 | -18.86 | 74.26 | 0.3309 | 916.0 | 772.5 | |
| 0.00 | 3.25 | 0.00 | 1.70 | 10.68 | 126.05 | -18.89 | 75.74 | 0.3297 | 763.0 | 703.8 | |
| 0.63 | 2.80 | 0.33 | 1.47 | 11.53 | 125.80 | -19.15 | 73.41 | 0.3368 | 958.1 | 784.9 | |
| 1.72 | 3.25 | 0.90 | 1.71 | 10.24 | 125.55 | -19.39 | 77.32 | 0.3363 | 1049.5 | 900.6 | |
| 0.00 | 5.24 | 0.00 | 2.76 | 10.14 | 125.26 | -19.68 | 77.76 | 0.3407 | 1092.0 | 877.7 | |
| 1.90 | 81.81 | 1.00 | 43.30 | 10.62 | 125.13 | -19.81 | 76.43 | 0.3441 | 1169.9 | 536.6 | |
| 7.04 | -15.00 | 3.72 | -15.00 | 10.70 | 124.90 | -20.04 | 76.32 | 0.3481 | 1139.9 | 999999 | |
| 0.00 | 1.44 | 0.00 | 0.76 | 10.22 | 124.93 | -20.01 | 77.69 | 0.3462 | 639.0 | 563.6 | |
| 0.00 | 0.99 | 0.00 | 0.53 | 11.16 | 124.80 | -20.14 | 75.09 | 0.3511 | 641.0 | 526.5 | |
| 7.04 | -15.00 | 3.73 | -15.00 | 10.78 | 124.63 | -20.31 | 76.23 | 0.3526 | 1023.6 | 999999 | |
| 0.00 | 3.43 | 0.00 | 1.81 | 10.11 | 124.58 | -20.37 | 78.15 | 0.3516 | 1009.0 | 858.6 | |
| 11.11 | -15.00 | 5.89 | -15.00 | 10.68 | 124.34 | -20.60 | 76.66 | 0.3569 | 942.9 | 999999 | |
| 8.76 | 35.76 | 4.64 | 18.96 | 9.92 | 124.26 | -20.68 | 78.82 | 0.3562 | 1048.5 | 416.3 | |
| 0.00 | 2.26 | 0.00 | 1.20 | 11.89 | 123.85 | -21.09 | 73.66 | 0.3685 | 511.0 | 557.7 | |
| 0.00 | 0.81 | 0.00 | 0.43 | 10.33 | 123.80 | -21.14 | 77.88 | 0.3645 | 361.0 | 309.6 | |
| 0.00 | 1.26 | 0.00 | 0.67 | 10.51 | 123.72 | -21.22 | 77.43 | 0.3662 | 574.0 | 457.3 | |
| 0.00 | 2.35 | 0.00 | 1.25 | 10.71 | 123.44 | -21.50 | 77.01 | 0.3712 | 199.0 | 185.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
