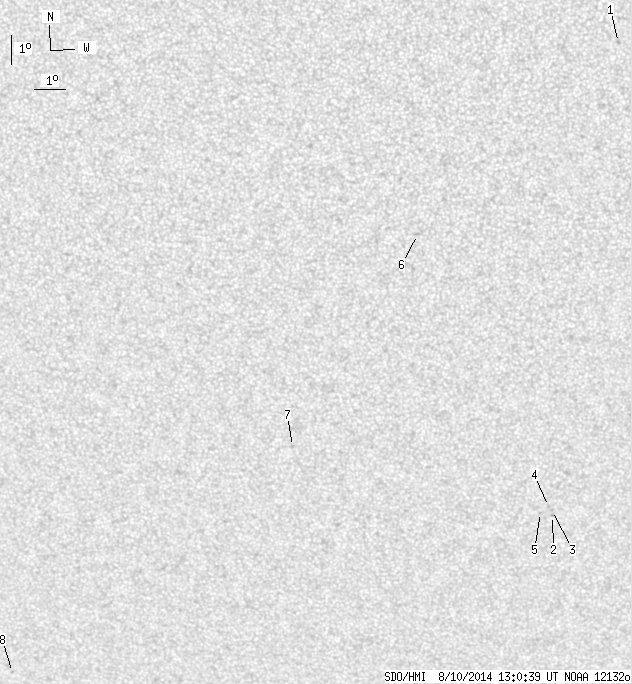

SDO HMI 2014-08-10 13:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 11.00 | 0.00 | 6.32 | -22.46 | 144.44 | 0.05 | 182.22 | 0.4902 | 154.2 | 78.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-10 13:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.90 | 0.00 | 0.99 | -10.56 | 150.46 | 6.07 | 199.68 | 0.3102 | 785.0 | 665.2 | |
| 0.00 | 0.99 | 0.00 | 0.59 | -26.45 | 148.79 | 4.40 | 187.23 | 0.5483 | 540.0 | 514.9 | |
| 0.00 | 1.17 | 0.00 | 0.69 | -26.27 | 148.79 | 4.40 | 187.26 | 0.5457 | 682.0 | 490.8 | |
| 0.00 | 1.08 | 0.00 | 0.64 | -26.12 | 148.65 | 4.25 | 187.07 | 0.5433 | 766.0 | 592.8 | |
| 0.00 | 0.90 | 0.00 | 0.53 | -26.34 | 148.38 | 3.99 | 186.58 | 0.5460 | 451.0 | 435.8 | |
| 0.00 | 2.35 | 0.00 | 1.26 | -16.73 | 144.23 | -0.16 | 179.60 | 0.3942 | -783.0 | -526.2 | |
| 0.00 | 1.35 | 0.00 | 0.78 | -23.97 | 140.05 | -4.34 | 172.20 | 0.5118 | -577.0 | -422.0 | |
| 0.00 | 1.26 | 0.00 | 0.84 | -32.54 | 129.41 | -14.98 | 160.78 | 0.6643 | -630.0 | -500.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
