SDO HMI 2014-08-10 13:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 91.01 | 572.66 | 46.87 | 294.45 | 13.18 | 130.82 | -13.57 | 60.36 | 0.2641 | -284.0 | -162.4 | |
|
previous
or next observation for the same group /

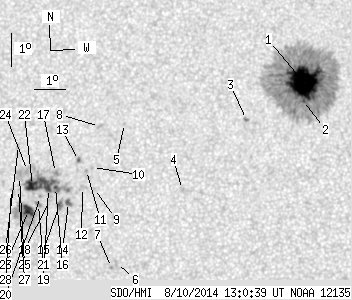

back to the solar disc SDO HMI 2014-08-10 13:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 63.65 | 427.06 | 32.46 | 217.81 | 14.13 | 132.92 | -11.48 | 54.64 | 0.2376 | -1323.3 | -405.1 | |
| 0.99 | -1.00 | 0.51 | -1.00 | 13.54 | 132.94 | -11.45 | 56.68 | 0.2319 | -1036.3 | 999999 | |
| 0.00 | 1.99 | 0.00 | 1.02 | 12.92 | 131.15 | -13.24 | 62.37 | 0.2530 | -969.0 | -854.9 | |
| 0.00 | 2.26 | 0.00 | 1.16 | 10.74 | 129.22 | -15.17 | 72.77 | 0.2704 | -797.0 | -532.4 | |
| 0.00 | 1.08 | 0.00 | 0.56 | 12.69 | 127.23 | -17.16 | 68.27 | 0.3113 | 794.0 | 643.0 | |
| 0.00 | 2.80 | 0.00 | 1.45 | 8.42 | 127.21 | -17.18 | 82.10 | 0.2963 | 676.0 | 505.9 | |
| 0.00 | 1.35 | 0.00 | 0.70 | 8.30 | 127.05 | -17.34 | 82.58 | 0.2987 | 848.0 | 731.0 | |
| 0.00 | 2.17 | 0.00 | 1.13 | 12.58 | 126.42 | -17.97 | 69.40 | 0.3231 | 728.0 | 627.4 | |
| 0.00 | 0.99 | 0.00 | 0.52 | 10.68 | 126.38 | -18.01 | 75.19 | 0.3157 | 910.0 | 668.3 | |
| 0.00 | 1.53 | 0.00 | 0.80 | 11.32 | 126.27 | -18.12 | 73.30 | 0.3197 | 183.0 | 231.3 | |
| 0.00 | 1.35 | 0.00 | 0.71 | 11.22 | 126.09 | -18.31 | 73.74 | 0.3223 | 926.0 | 772.1 | |
| 0.00 | 4.15 | 0.00 | 2.17 | 10.70 | 125.99 | -18.40 | 75.39 | 0.3220 | 847.0 | 702.2 | |
| 0.63 | 1.81 | 0.33 | 0.95 | 11.52 | 125.80 | -18.59 | 73.05 | 0.3279 | 954.0 | 801.9 | |
| 1.72 | 3.52 | 0.90 | 1.85 | 10.23 | 125.56 | -18.83 | 77.07 | 0.3273 | 1055.3 | 863.8 | |
| 1.63 | 6.05 | 0.85 | 3.17 | 10.16 | 125.27 | -19.12 | 77.43 | 0.3318 | 980.7 | 749.6 | |
| 0.99 | 54.80 | 0.52 | 28.88 | 10.67 | 125.11 | -19.28 | 76.01 | 0.3359 | 1197.5 | 825.7 | |
| 0.00 | 3.07 | 0.00 | 1.62 | 11.12 | 125.08 | -19.31 | 74.69 | 0.3379 | 876.0 | 787.4 | |
| 0.00 | 1.17 | 0.00 | 0.62 | 10.27 | 124.94 | -19.45 | 77.28 | 0.3374 | 732.0 | 612.5 | |
| 3.25 | -16.00 | 1.71 | -16.00 | 10.63 | 124.88 | -19.51 | 76.24 | 0.3394 | 1110.4 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.52 | 10.38 | 124.63 | -19.76 | 77.11 | 0.3426 | 855.0 | 750.4 | |
| 0.00 | 3.07 | 0.00 | 1.62 | 10.13 | 124.58 | -19.81 | 77.84 | 0.3427 | 1109.0 | 891.5 | |
| 9.48 | -16.00 | 5.01 | -16.00 | 10.70 | 124.35 | -20.04 | 76.32 | 0.3481 | 941.1 | 999999 | |
| 8.67 | 38.73 | 4.58 | 20.46 | 9.94 | 124.27 | -20.12 | 78.54 | 0.3473 | 1047.1 | 362.9 | |
| 0.00 | 3.16 | 0.00 | 1.67 | 11.15 | 124.15 | -20.24 | 75.16 | 0.3526 | 45.0 | 105.2 | |
| 0.00 | 7.31 | 0.00 | 3.87 | 10.96 | 123.90 | -20.49 | 75.83 | 0.3559 | -28.0 | 76.9 | |
| 0.00 | 1.17 | 0.00 | 0.62 | 11.90 | 123.80 | -20.59 | 73.31 | 0.3608 | 539.0 | 531.2 | |
| 0.00 | 0.72 | 0.00 | 0.38 | 10.56 | 123.90 | -20.49 | 76.94 | 0.3548 | 538.0 | 395.2 | |
| 0.00 | 0.36 | 0.00 | 0.19 | 10.55 | 123.67 | -20.72 | 77.07 | 0.3585 | 597.0 | 487.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
