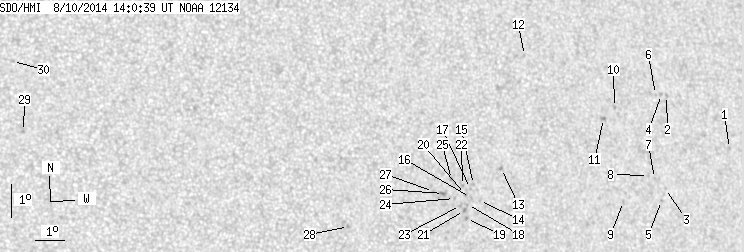

SDO HMI 2014-08-10 14:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 38.94 | 0.00 | 22.63 | 10.17 | 174.86 | 31.02 | 279.64 | 0.5147 | 214.0 | 179.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-10 14:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.17 | 0.00 | 0.75 | 10.23 | 183.19 | 39.35 | 278.38 | 0.6330 | -561.0 | -425.2 | |
| 0.00 | 1.72 | 0.00 | 1.06 | 12.01 | 180.98 | 37.14 | 281.50 | 0.6049 | -593.0 | -463.4 | |
| 0.00 | 0.90 | 0.00 | 0.56 | 9.19 | 180.54 | 36.70 | 276.84 | 0.5964 | -485.0 | -401.9 | |
| 0.00 | 1.35 | 0.00 | 0.84 | 12.05 | 180.79 | 36.95 | 281.60 | 0.6024 | -729.0 | -628.7 | |
| 0.00 | 1.08 | 0.00 | 0.67 | 8.84 | 180.34 | 36.50 | 276.25 | 0.5935 | -702.0 | -569.8 | |
| 0.00 | 0.54 | 0.00 | 0.33 | 12.07 | 180.56 | 36.72 | 281.66 | 0.5992 | -619.0 | -609.7 | |
| 0.00 | 1.08 | 0.00 | 0.66 | 9.52 | 180.16 | 36.32 | 277.42 | 0.5912 | -461.0 | -407.8 | |
| 0.00 | 1.08 | 0.00 | 0.66 | 9.63 | 179.94 | 36.10 | 277.61 | 0.5883 | -697.0 | -561.4 | |
| 0.00 | 1.44 | 0.00 | 0.87 | 8.90 | 178.91 | 35.07 | 276.42 | 0.5734 | -651.0 | -553.2 | |
| 0.00 | 1.26 | 0.00 | 0.76 | 11.77 | 178.94 | 35.10 | 281.42 | 0.5765 | -648.0 | -596.0 | |
| 0.00 | 2.44 | 0.00 | 1.47 | 11.47 | 178.48 | 34.64 | 280.96 | 0.5696 | -904.0 | -753.6 | |
| 0.00 | 0.90 | 0.00 | 0.53 | 13.56 | 175.84 | 32.00 | 285.35 | 0.5363 | -752.0 | -599.3 | |
| 0.00 | 1.72 | 0.00 | 0.99 | 10.17 | 174.56 | 30.72 | 279.20 | 0.5114 | 831.0 | 638.7 | |
| 0.00 | 0.72 | 0.00 | 0.41 | 9.24 | 173.68 | 29.84 | 277.48 | 0.4973 | 528.0 | 488.6 | |
| 0.00 | 1.08 | 0.00 | 0.62 | 9.74 | 173.51 | 29.67 | 278.51 | 0.4953 | 621.0 | 496.8 | |
| 0.00 | 1.17 | 0.00 | 0.67 | 9.35 | 173.37 | 29.53 | 277.74 | 0.4928 | 649.0 | 584.4 | |
| 0.00 | 0.72 | 0.00 | 0.41 | 9.63 | 173.40 | 29.56 | 278.29 | 0.4934 | 689.0 | 585.5 | |
| 0.00 | 0.90 | 0.00 | 0.51 | 9.15 | 173.24 | 29.40 | 277.33 | 0.4907 | 765.0 | 678.2 | |
| 0.00 | 1.53 | 0.00 | 0.87 | 8.72 | 173.17 | 29.33 | 276.47 | 0.4893 | 773.0 | 668.2 | |
| 0.00 | 1.35 | 0.00 | 0.77 | 9.45 | 173.20 | 29.36 | 277.97 | 0.4904 | 935.0 | 789.2 | |
| 0.00 | 1.72 | 0.00 | 0.97 | 8.97 | 173.12 | 29.28 | 276.98 | 0.4887 | 914.0 | 766.7 | |
| 0.00 | 1.17 | 0.00 | 0.67 | 9.73 | 173.12 | 29.28 | 278.55 | 0.4895 | 827.0 | 697.5 | |
| 0.00 | 2.08 | 0.00 | 1.18 | 9.13 | 173.00 | 29.16 | 277.33 | 0.4869 | 866.0 | 709.3 | |
| 0.00 | 0.81 | 0.00 | 0.46 | 9.35 | 172.80 | 28.97 | 277.81 | 0.4843 | 841.0 | 719.0 | |
| 0.00 | 1.17 | 0.00 | 0.66 | 9.94 | 172.75 | 28.91 | 279.02 | 0.4842 | 818.0 | 679.2 | |
| 0.00 | 2.80 | 0.00 | 1.58 | 9.53 | 172.43 | 28.59 | 278.22 | 0.4788 | 1018.0 | 833.9 | |
| 0.00 | 0.90 | 0.00 | 0.51 | 9.61 | 172.09 | 28.25 | 278.44 | 0.4737 | 916.0 | 776.4 | |
| 0.00 | 1.62 | 0.00 | 0.89 | 8.69 | 169.08 | 25.24 | 276.87 | 0.4264 | 854.0 | 733.3 | |
| 0.00 | 1.17 | 0.00 | 0.60 | 11.99 | 158.60 | 14.76 | 292.13 | 0.2702 | 862.0 | 703.2 | |
| 0.00 | 1.35 | 0.00 | 0.70 | 14.14 | 158.38 | 14.54 | 299.64 | 0.2813 | 516.0 | 433.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
