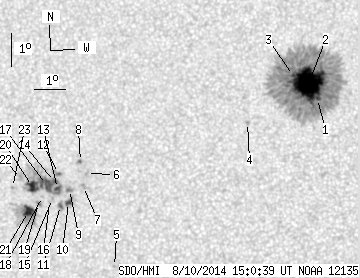

SDO HMI 2014-08-10 15:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 103.81 | 561.96 | 53.30 | 287.59 | 13.20 | 131.00 | -12.28 | 57.80 | 0.2457 | -222.7 | -191.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-10 15:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.89 | 427.21 | 1.46 | 217.04 | 13.63 | 133.33 | -9.96 | 52.74 | 0.2121 | -1202.0 | -400.6 | |
| 62.73 | -1.00 | 31.86 | -1.00 | 14.09 | 133.02 | -10.26 | 51.84 | 0.2207 | -1345.7 | 999999 | |
| 1.35 | -1.00 | 0.69 | -1.00 | 14.32 | 132.54 | -10.75 | 52.23 | 0.2297 | -965.9 | 999999 | |
| 0.00 | 1.99 | 0.00 | 1.01 | 12.86 | 131.14 | -12.15 | 60.70 | 0.2363 | -1001.0 | -668.7 | |
| 0.00 | 0.99 | 0.00 | 0.51 | 8.36 | 127.10 | -16.18 | 81.97 | 0.2797 | 857.0 | 723.5 | |
| 0.00 | 1.62 | 0.00 | 0.84 | 11.16 | 126.06 | -17.23 | 73.11 | 0.3050 | 974.0 | 754.9 | |
| 0.00 | 2.44 | 0.00 | 1.27 | 10.77 | 125.99 | -17.30 | 74.44 | 0.3046 | 996.0 | 814.1 | |
| 0.45 | 1.71 | 0.24 | 0.89 | 11.52 | 125.84 | -17.44 | 72.15 | 0.3099 | 974.2 | 805.4 | |
| 0.00 | 3.79 | 0.00 | 1.98 | 10.66 | 125.54 | -17.75 | 75.09 | 0.3114 | 1144.0 | 923.7 | |
| 2.26 | 5.42 | 1.18 | 2.82 | 10.26 | 125.53 | -17.76 | 76.35 | 0.3102 | 1075.5 | 868.6 | |
| 0.90 | 4.42 | 0.47 | 2.31 | 10.16 | 125.27 | -18.01 | 76.82 | 0.3140 | 1040.3 | 812.9 | |
| 0.63 | 3.61 | 0.33 | 1.89 | 11.13 | 125.15 | -18.14 | 73.88 | 0.3193 | 936.1 | 718.8 | |
| 2.26 | 60.57 | 1.18 | 31.73 | 10.68 | 125.15 | -18.14 | 75.30 | 0.3177 | 1221.8 | 626.1 | |
| 1.81 | -13.00 | 0.94 | -13.00 | 10.89 | 125.04 | -18.25 | 74.72 | 0.3202 | 1079.8 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.57 | 10.37 | 125.00 | -18.28 | 76.34 | 0.3190 | 841.0 | 677.8 | |
| 0.00 | 1.08 | 0.00 | 0.57 | 10.24 | 124.91 | -18.37 | 76.78 | 0.3200 | 662.0 | 500.7 | |
| 10.20 | -13.00 | 5.34 | -13.00 | 10.79 | 124.78 | -18.51 | 75.19 | 0.3239 | 1084.3 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.61 | 10.42 | 124.67 | -18.61 | 76.38 | 0.3244 | 773.0 | 641.3 | |
| 0.00 | 2.26 | 0.00 | 1.18 | 10.20 | 124.56 | -18.73 | 77.11 | 0.3256 | 1051.0 | 919.2 | |
| 9.12 | -13.00 | 4.78 | -13.00 | 10.71 | 124.33 | -18.96 | 75.70 | 0.3309 | 944.2 | 999999 | |
| 9.21 | 38.54 | 4.83 | 20.23 | 9.95 | 124.24 | -19.04 | 78.03 | 0.3299 | 1051.5 | 372.5 | |
| 0.00 | 2.80 | 0.00 | 1.47 | 10.94 | 123.92 | -19.37 | 75.27 | 0.3381 | 227.0 | 139.3 | |
| 0.00 | 1.26 | 0.00 | 0.67 | 10.66 | 123.68 | -19.61 | 76.23 | 0.3411 | 691.0 | 556.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
