SDO HMI 2014-08-10 16:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 9.01 | 0.00 | 5.14 | -19.34 | 140.16 | -2.57 | 180.97 | 0.4755 | 231.9 | 140.7 | |
|
previous
or next observation for the same group /

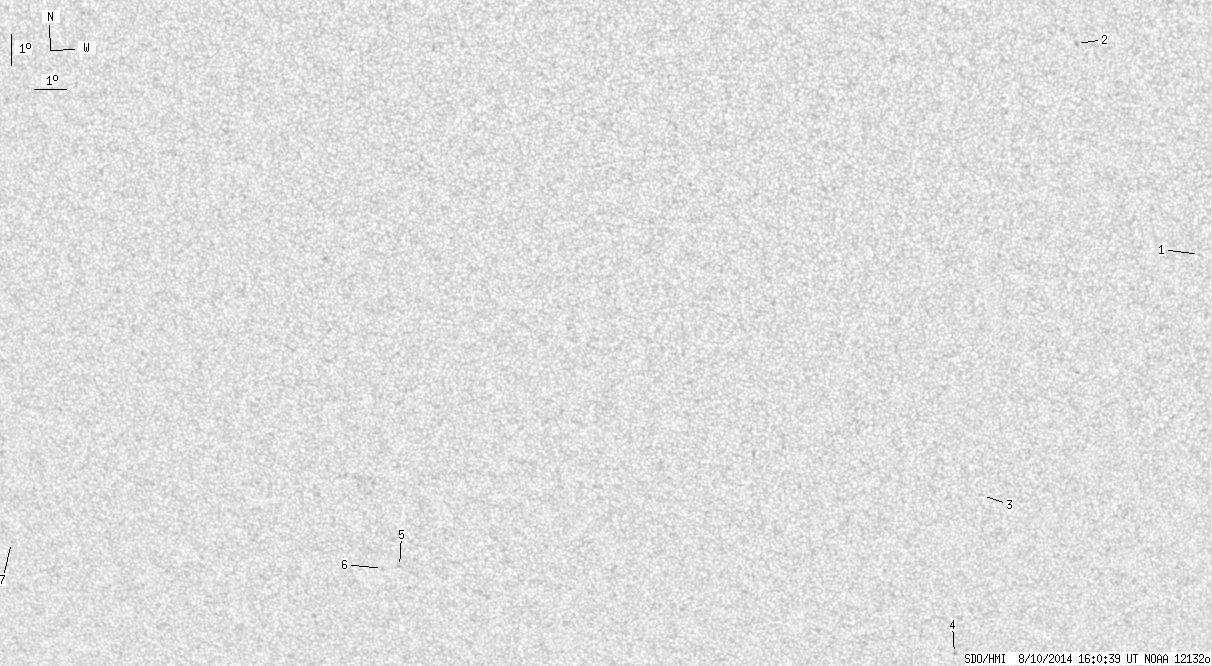

back to the solar disc SDO HMI 2014-08-10 16:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.63 | 0.00 | 0.34 | -12.93 | 155.56 | 12.82 | 213.40 | 0.3947 | 680.0 | 513.1 | |
| 0.00 | 2.08 | 0.00 | 1.07 | -6.17 | 151.48 | 8.75 | 214.98 | 0.2649 | 912.0 | 600.3 | |
| 0.00 | 0.99 | 0.00 | 0.56 | -20.77 | 148.94 | 6.21 | 192.51 | 0.4688 | 740.0 | 551.6 | |
| 0.00 | 1.62 | 0.00 | 0.96 | -26.31 | 148.25 | 5.52 | 189.07 | 0.5487 | 672.0 | 557.5 | |
| 0.00 | 1.53 | 0.00 | 0.90 | -23.34 | 129.63 | -13.10 | 157.12 | 0.5374 | -786.0 | -618.3 | |
| 0.00 | 1.44 | 0.00 | 0.85 | -23.42 | 129.04 | -13.69 | 156.28 | 0.5419 | -38.0 | -164.4 | |
| 0.00 | 0.72 | 0.00 | 0.46 | -23.04 | 115.99 | -26.74 | 139.24 | 0.6364 | -557.0 | -515.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
