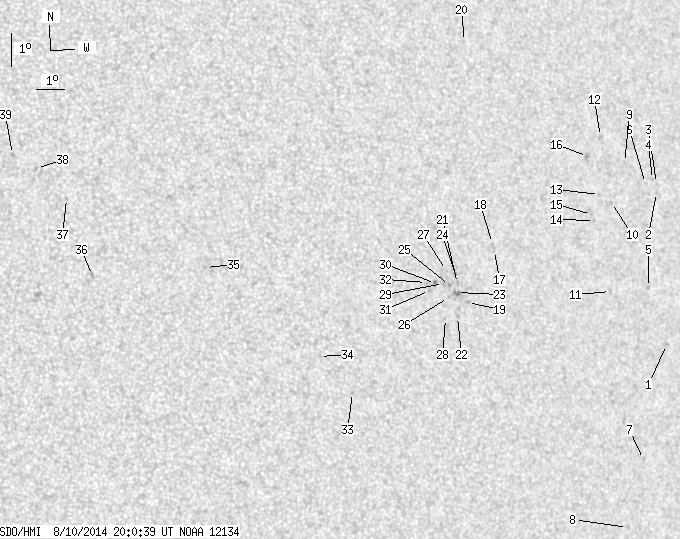

SDO HMI 2014-08-10 20:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 54.77 | 0.00 | 32.81 | 10.28 | 174.16 | 33.64 | 279.53 | 0.5527 | 152.2 | 137.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-10 20:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.44 | 0.00 | 0.94 | 7.16 | 181.11 | 40.59 | 273.54 | 0.6491 | -662.0 | -528.0 | |
| 0.00 | 1.17 | 0.00 | 0.77 | 11.80 | 181.38 | 40.86 | 280.66 | 0.6539 | -350.0 | -312.1 | |
| 0.00 | 0.54 | 0.00 | 0.35 | 12.07 | 181.43 | 40.91 | 281.07 | 0.6548 | -356.0 | -397.8 | |
| 0.00 | 0.90 | 0.00 | 0.59 | 12.20 | 181.29 | 40.77 | 281.29 | 0.6531 | -476.0 | -367.3 | |
| 0.00 | 1.26 | 0.00 | 0.81 | 8.94 | 180.60 | 40.08 | 276.29 | 0.6422 | -713.0 | -591.5 | |
| 0.00 | 0.90 | 0.00 | 0.59 | 12.10 | 180.98 | 40.46 | 281.17 | 0.6491 | -339.0 | -434.6 | |
| 0.00 | 1.26 | 0.00 | 0.81 | 3.75 | 179.91 | 39.39 | 268.09 | 0.6359 | -352.0 | -369.7 | |
| 0.00 | 1.26 | 0.00 | 0.80 | 1.72 | 179.20 | 38.68 | 264.77 | 0.6296 | -622.0 | -445.7 | |
| 0.00 | 0.90 | 0.00 | 0.58 | 12.80 | 180.25 | 39.74 | 282.35 | 0.6404 | -625.0 | -461.7 | |
| 0.00 | 0.99 | 0.00 | 0.63 | 11.62 | 179.52 | 39.00 | 280.59 | 0.6294 | -613.0 | -502.5 | |
| 0.00 | 1.71 | 0.00 | 1.08 | 8.93 | 179.08 | 38.56 | 276.31 | 0.6218 | -430.0 | -446.5 | |
| 0.00 | 2.26 | 0.00 | 1.44 | 13.66 | 179.45 | 38.93 | 283.83 | 0.6311 | -644.0 | -520.1 | |
| 0.00 | 0.90 | 0.00 | 0.57 | 11.90 | 179.09 | 38.57 | 281.08 | 0.6239 | -586.0 | -517.8 | |
| 0.00 | 0.99 | 0.00 | 0.62 | 11.12 | 178.76 | 38.24 | 279.87 | 0.6187 | -559.0 | -451.2 | |
| 0.00 | 0.90 | 0.00 | 0.57 | 11.31 | 178.67 | 38.16 | 280.19 | 0.6177 | -760.0 | -639.6 | |
| 0.00 | 4.15 | 0.00 | 2.62 | 13.08 | 178.82 | 38.30 | 283.03 | 0.6219 | -714.0 | -590.0 | |
| 0.00 | 1.89 | 0.00 | 1.13 | 10.46 | 174.82 | 34.30 | 279.21 | 0.5636 | 501.0 | 415.9 | |
| 0.00 | 1.17 | 0.00 | 0.70 | 10.68 | 174.77 | 34.26 | 279.60 | 0.5632 | 577.0 | 429.7 | |
| 0.00 | 1.98 | 0.00 | 1.17 | 8.95 | 173.64 | 33.13 | 276.58 | 0.5455 | 649.0 | 577.1 | |
| 0.00 | 0.54 | 0.00 | 0.33 | 16.90 | 174.77 | 34.25 | 290.44 | 0.5768 | -459.0 | -319.5 | |
| 0.00 | 1.53 | 0.00 | 0.90 | 9.55 | 173.34 | 32.82 | 277.71 | 0.5415 | 605.0 | 642.6 | |
| 0.00 | 1.35 | 0.00 | 0.80 | 8.55 | 173.24 | 32.72 | 275.86 | 0.5394 | 307.0 | 341.5 | |
| 0.00 | 3.52 | 0.00 | 2.07 | 9.28 | 173.27 | 32.76 | 277.21 | 0.5403 | 780.0 | 737.6 | |
| 0.00 | 1.35 | 0.00 | 0.80 | 9.82 | 173.30 | 32.78 | 278.23 | 0.5411 | 814.0 | 650.1 | |
| 0.00 | 1.53 | 0.00 | 0.90 | 9.50 | 173.04 | 32.52 | 277.66 | 0.5371 | 818.0 | 750.1 | |
| 0.00 | 0.99 | 0.00 | 0.58 | 9.14 | 172.97 | 32.45 | 276.99 | 0.5358 | 707.0 | 622.8 | |
| 0.00 | 0.36 | 0.00 | 0.21 | 9.97 | 172.98 | 32.47 | 278.53 | 0.5367 | 567.0 | 618.8 | |
| 0.00 | 0.81 | 0.00 | 0.47 | 8.51 | 172.79 | 32.28 | 275.82 | 0.5329 | 719.0 | 584.9 | |
| 0.00 | 1.80 | 0.00 | 1.06 | 9.58 | 172.83 | 32.31 | 277.82 | 0.5341 | 731.0 | 624.0 | |
| 0.00 | 2.35 | 0.00 | 1.37 | 9.59 | 172.54 | 32.02 | 277.88 | 0.5299 | 893.0 | 733.2 | |
| 0.00 | 1.26 | 0.00 | 0.73 | 9.40 | 172.30 | 31.78 | 277.53 | 0.5262 | 768.0 | 667.0 | |
| 0.00 | 0.81 | 0.00 | 0.47 | 9.64 | 172.22 | 31.70 | 278.01 | 0.5252 | 855.0 | 666.2 | |
| 0.00 | 0.81 | 0.00 | 0.46 | 6.46 | 169.32 | 28.80 | 271.75 | 0.4809 | 711.0 | 580.6 | |
| 0.00 | 0.99 | 0.00 | 0.55 | 7.61 | 168.25 | 27.73 | 274.18 | 0.4643 | 646.0 | 519.6 | |
| 0.00 | 0.99 | 0.00 | 0.54 | 10.50 | 164.57 | 24.05 | 281.43 | 0.4106 | 648.0 | 530.9 | |
| 0.00 | 2.44 | 0.00 | 1.29 | 10.42 | 160.79 | 20.27 | 282.70 | 0.3509 | 713.0 | 620.9 | |
| 0.00 | 1.44 | 0.00 | 0.76 | 12.80 | 160.11 | 19.60 | 289.78 | 0.3491 | 759.0 | 610.6 | |
| 0.00 | 1.71 | 0.00 | 0.90 | 13.75 | 159.20 | 18.69 | 293.23 | 0.3401 | 723.0 | 597.3 | |
| 0.00 | 1.62 | 0.00 | 0.85 | 14.21 | 158.45 | 17.93 | 295.29 | 0.3315 | 703.0 | 599.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
