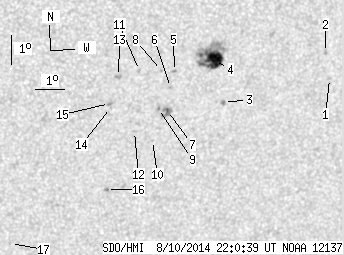

SDO HMI 2014-08-10 22:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.93 | 82.98 | 12.30 | 48.75 | -17.73 | 161.55 | 22.14 | 221.80 | 0.5409 | 597.2 | 469.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-10 22:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.35 | 0.00 | 0.83 | -18.08 | 166.17 | 26.76 | 226.71 | 0.5902 | 573.0 | 474.2 | |
| 0.00 | 1.35 | 0.00 | 0.82 | -17.20 | 165.89 | 26.48 | 227.56 | 0.5793 | 727.0 | 619.3 | |
| 0.00 | 2.44 | 0.00 | 1.45 | -18.69 | 162.52 | 23.11 | 221.79 | 0.5599 | 806.0 | 687.1 | |
| 19.76 | 54.77 | 11.61 | 32.13 | -17.27 | 162.01 | 22.60 | 223.00 | 0.5402 | 971.0 | 571.8 | |
| 0.00 | 1.71 | 0.00 | 1.00 | -17.58 | 160.67 | 21.26 | 220.88 | 0.5303 | 738.0 | 510.3 | |
| 0.00 | 1.08 | 0.00 | 0.63 | -18.11 | 160.60 | 21.19 | 220.11 | 0.5354 | 723.0 | 655.1 | |
| 1.17 | 7.58 | 0.69 | 4.47 | -18.87 | 160.60 | 21.19 | 219.15 | 0.5438 | 974.9 | 691.2 | |
| 0.00 | 0.90 | 0.00 | 0.52 | -17.52 | 160.22 | 20.81 | 220.35 | 0.5254 | -563.0 | -476.7 | |
| 0.00 | 1.35 | 0.00 | 0.80 | -18.79 | 160.28 | 20.87 | 218.83 | 0.5399 | 787.0 | 747.5 | |
| 0.00 | 0.72 | 0.00 | 0.43 | -19.87 | 160.21 | 20.80 | 217.46 | 0.5513 | 393.0 | 370.1 | |
| 0.00 | 1.35 | 0.00 | 0.78 | -17.49 | 159.47 | 20.06 | 219.36 | 0.5178 | -741.0 | -469.7 | |
| 0.00 | 1.08 | 0.00 | 0.64 | -19.54 | 159.55 | 20.14 | 216.96 | 0.5417 | 740.0 | 523.2 | |
| 0.00 | 2.80 | 0.00 | 1.61 | -17.66 | 158.78 | 19.37 | 218.17 | 0.5133 | -707.0 | -586.5 | |
| 0.00 | 0.99 | 0.00 | 0.58 | -18.69 | 158.63 | 19.21 | 216.69 | 0.5238 | 462.0 | 463.8 | |
| 0.00 | 1.71 | 0.00 | 0.99 | -18.55 | 158.58 | 19.16 | 216.78 | 0.5218 | 581.0 | 695.4 | |
| 0.00 | 1.44 | 0.00 | 0.86 | -21.48 | 158.84 | 19.43 | 213.83 | 0.5582 | -864.0 | -754.4 | |
| 0.00 | 0.36 | 0.00 | 0.21 | -23.23 | 155.76 | 16.35 | 207.80 | 0.5567 | 703.0 | 586.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
