SDO HMI 2014-08-11 00:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 10.00 | 0.00 | 5.83 | -22.32 | 141.75 | 3.44 | 190.27 | 0.5174 | 31.1 | 40.5 | |
|
previous
or next observation for the same group /

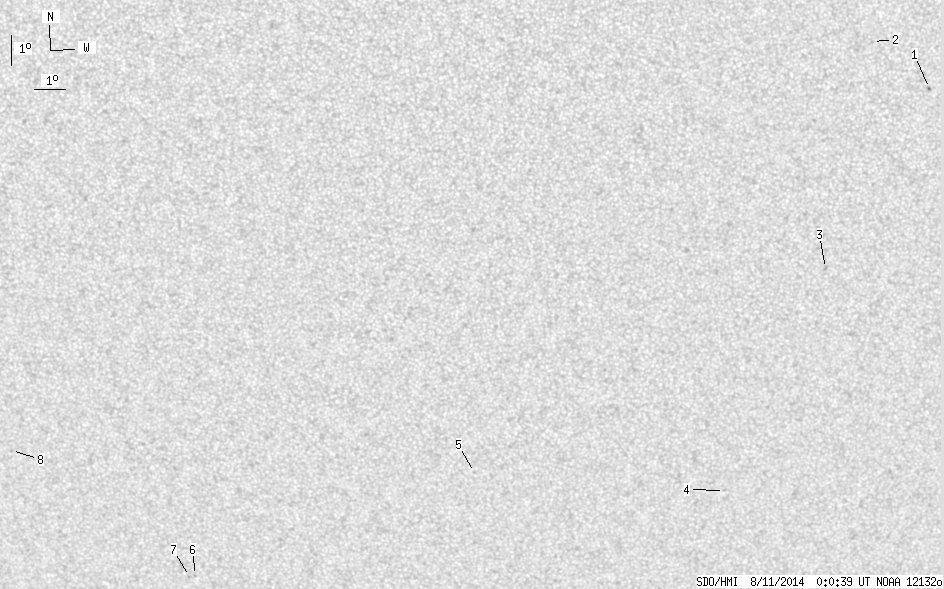

back to the solar disc SDO HMI 2014-08-11 00:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.44 | 0.00 | 0.79 | -12.94 | 153.86 | 15.56 | 218.59 | 0.4208 | 827.0 | 675.7 | |
| 0.00 | 0.99 | 0.00 | 0.53 | -11.37 | 151.95 | 13.64 | 217.38 | 0.3824 | 759.0 | 613.3 | |
| 0.00 | 2.08 | 0.00 | 1.17 | -18.76 | 150.88 | 12.57 | 205.98 | 0.4725 | 640.0 | 473.0 | |
| 0.00 | 1.08 | 0.00 | 0.65 | -26.41 | 148.11 | 9.80 | 195.75 | 0.5640 | 645.0 | 502.4 | |
| 0.00 | 0.99 | 0.00 | 0.58 | -25.65 | 139.57 | 1.26 | 182.14 | 0.5335 | -570.0 | -426.0 | |
| 0.00 | 1.17 | 0.00 | 0.73 | -29.50 | 129.84 | -8.47 | 167.65 | 0.6017 | -635.0 | -556.0 | |
| 0.00 | 1.35 | 0.00 | 0.84 | -29.54 | 129.62 | -8.69 | 167.37 | 0.6029 | -726.0 | -621.9 | |
| 0.00 | 0.90 | 0.00 | 0.54 | -25.06 | 123.88 | -14.43 | 156.50 | 0.5682 | -691.0 | -602.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
