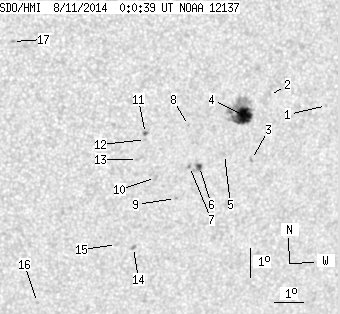

SDO HMI 2014-08-11 00:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 24.64 | 79.12 | 14.61 | 46.84 | -17.79 | 161.32 | 23.01 | 222.79 | 0.5503 | 579.7 | 428.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-11 00:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.99 | 0.00 | 0.60 | -17.04 | 164.97 | 26.66 | 227.96 | 0.5798 | 648.0 | 531.3 | |
| 0.00 | 1.44 | 0.00 | 0.86 | -16.60 | 162.90 | 24.59 | 226.27 | 0.5539 | 83.0 | 112.7 | |
| 0.00 | 1.62 | 0.00 | 0.98 | -18.71 | 162.57 | 24.26 | 223.14 | 0.5714 | 729.0 | 604.9 | |
| 21.66 | 51.35 | 12.84 | 30.39 | -17.22 | 162.08 | 23.77 | 224.48 | 0.5515 | 917.4 | 539.1 | |
| 0.00 | 1.17 | 0.00 | 0.70 | -18.49 | 161.59 | 23.28 | 222.25 | 0.5597 | 731.0 | 477.3 | |
| 2.35 | 6.14 | 1.40 | 3.65 | -18.86 | 160.77 | 22.46 | 220.79 | 0.5556 | 867.7 | 625.2 | |
| 0.00 | 1.71 | 0.00 | 1.02 | -18.84 | 160.42 | 22.11 | 220.37 | 0.5521 | 846.0 | 677.3 | |
| 0.00 | 0.63 | 0.00 | 0.37 | -17.46 | 160.21 | 21.90 | 221.85 | 0.5354 | -616.0 | -536.9 | |
| 0.00 | 1.08 | 0.00 | 0.65 | -19.90 | 160.09 | 21.78 | 218.66 | 0.5605 | 725.0 | 625.7 | |
| 0.00 | 2.44 | 0.00 | 1.44 | -19.16 | 159.29 | 20.98 | 218.53 | 0.5451 | 714.0 | 638.4 | |
| 0.63 | 2.26 | 0.37 | 1.31 | -17.67 | 158.76 | 20.45 | 219.67 | 0.5236 | -666.0 | -534.0 | |
| 0.00 | 1.26 | 0.00 | 0.73 | -17.87 | 158.78 | 20.48 | 219.45 | 0.5261 | 549.0 | 394.0 | |
| 0.00 | 1.08 | 0.00 | 0.63 | -18.52 | 158.59 | 20.28 | 218.36 | 0.5317 | 811.0 | 692.8 | |
| 0.00 | 2.17 | 0.00 | 1.30 | -21.52 | 158.86 | 20.55 | 215.26 | 0.5679 | -789.0 | -599.1 | |
| 0.00 | 1.71 | 0.00 | 1.02 | -21.39 | 158.25 | 19.94 | 214.60 | 0.5614 | -635.0 | -332.3 | |
| 0.00 | 0.81 | 0.00 | 0.49 | -23.30 | 155.77 | 17.46 | 209.30 | 0.5653 | 563.0 | 485.6 | |
| 0.00 | 1.26 | 0.00 | 0.70 | -14.46 | 154.03 | 15.72 | 216.67 | 0.4413 | 723.0 | 622.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
