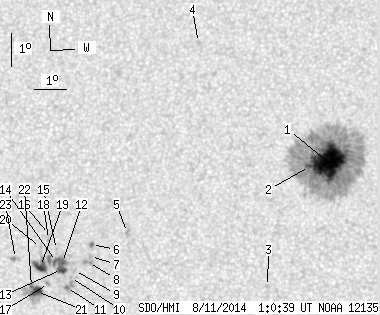

SDO HMI 2014-08-11 01:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 98.66 | 529.90 | 49.71 | 266.57 | 13.44 | 131.66 | -6.10 | 37.33 | 0.1700 | -319.2 | -238.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-11 01:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 66.70 | 423.76 | 33.44 | 212.50 | 14.12 | 133.37 | -4.39 | 28.96 | 0.1539 | -1432.8 | -431.9 | |
| 2.08 | -1.00 | 1.04 | -1.00 | 13.99 | 132.77 | -4.98 | 32.56 | 0.1573 | -1040.7 | 999999 | |
| 0.00 | 1.71 | 0.00 | 0.86 | 10.31 | 131.54 | -6.22 | 57.33 | 0.1272 | -842.0 | -581.4 | |
| 0.00 | 1.99 | 0.00 | 1.01 | 17.77 | 129.12 | -8.64 | 35.88 | 0.2452 | -723.0 | -511.2 | |
| 0.00 | 4.06 | 0.00 | 2.06 | 11.89 | 127.11 | -10.65 | 61.76 | 0.2061 | 906.0 | 722.3 | |
| 0.54 | 2.17 | 0.27 | 1.10 | 11.50 | 125.99 | -11.77 | 65.58 | 0.2205 | 1105.5 | 906.3 | |
| 0.00 | 2.17 | 0.00 | 1.10 | 11.14 | 125.97 | -11.79 | 67.17 | 0.2185 | 965.0 | 770.5 | |
| 0.00 | 3.88 | 0.00 | 1.97 | 10.95 | 125.91 | -11.84 | 68.05 | 0.2182 | 1089.0 | 917.0 | |
| 0.00 | 2.08 | 0.00 | 1.05 | 10.70 | 125.48 | -12.28 | 69.77 | 0.2237 | 772.0 | 705.8 | |
| 0.00 | 0.99 | 0.00 | 0.50 | 10.48 | 125.36 | -12.39 | 70.85 | 0.2244 | 1020.0 | 819.5 | |
| 0.72 | 7.40 | 0.37 | 3.76 | 10.18 | 125.25 | -12.51 | 72.31 | 0.2248 | 1066.0 | 918.9 | |
| 3.61 | 41.88 | 1.84 | 21.35 | 10.94 | 125.09 | -12.67 | 69.33 | 0.2311 | 1218.7 | 772.6 | |
| 5.42 | -12.00 | 2.76 | -12.00 | 10.72 | 125.07 | -12.69 | 70.24 | 0.2303 | 1222.0 | 999999 | |
| 2.80 | -12.00 | 1.43 | -12.00 | 10.96 | 124.90 | -12.86 | 69.48 | 0.2343 | 1093.1 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.46 | 11.33 | 124.88 | -12.87 | 68.03 | 0.2366 | 743.0 | 599.0 | |
| 0.00 | 1.53 | 0.00 | 0.78 | 11.78 | 124.64 | -13.12 | 66.61 | 0.2431 | 633.0 | 426.7 | |
| 0.00 | 2.35 | 0.00 | 1.20 | 10.29 | 124.67 | -13.08 | 72.53 | 0.2345 | 1003.0 | 812.6 | |
| 0.00 | 1.26 | 0.00 | 0.65 | 11.63 | 124.61 | -13.14 | 67.24 | 0.2426 | 876.0 | 728.7 | |
| 9.30 | -12.00 | 4.74 | -12.00 | 10.80 | 124.40 | -13.36 | 70.78 | 0.2414 | 1033.3 | 999999 | |
| 0.00 | 1.62 | 0.00 | 0.83 | 11.38 | 124.37 | -13.38 | 68.54 | 0.2449 | 704.0 | 526.4 | |
| 6.77 | 26.36 | 3.45 | 13.45 | 10.03 | 124.30 | -13.45 | 73.96 | 0.2394 | 1159.0 | 515.4 | |
| 0.72 | -21.00 | 0.37 | -21.00 | 10.18 | 124.14 | -13.62 | 73.52 | 0.2427 | 824.1 | 999999 | |
| 0.00 | 3.79 | 0.00 | 1.94 | 11.02 | 123.59 | -14.17 | 70.86 | 0.2554 | 807.0 | 710.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
