SDO HMI 2014-08-11 03:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 92.08 | 519.36 | 46.28 | 260.74 | 13.44 | 131.79 | -4.87 | 31.33 | 0.1591 | -416.1 | -244.5 | |
|
previous
or next observation for the same group /

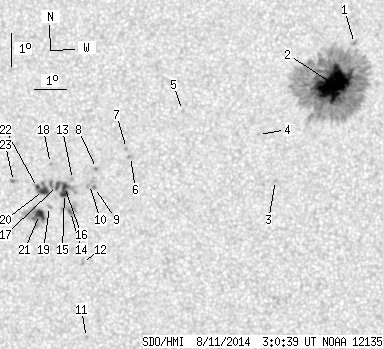

back to the solar disc SDO HMI 2014-08-11 03:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.35 | 0.00 | 1.18 | 15.42 | 134.10 | -2.55 | 15.36 | 0.1629 | -908.0 | -732.4 | |
| 67.44 | 413.84 | 33.77 | 207.25 | 14.16 | 133.46 | -3.20 | 21.89 | 0.1457 | -1432.2 | -450.1 | |
| 0.00 | 1.53 | 0.00 | 0.77 | 11.22 | 131.69 | -4.97 | 45.39 | 0.1198 | -755.0 | -671.1 | |
| 0.00 | 0.72 | 0.00 | 0.36 | 12.62 | 131.14 | -5.52 | 40.96 | 0.1439 | 777.0 | 562.1 | |
| 0.00 | 1.35 | 0.00 | 0.68 | 13.32 | 128.73 | -7.92 | 47.97 | 0.1814 | -684.0 | -527.4 | |
| 0.00 | 2.44 | 0.00 | 1.23 | 11.89 | 127.14 | -9.52 | 59.16 | 0.1892 | 910.0 | 778.1 | |
| 0.00 | 1.17 | 0.00 | 0.59 | 12.13 | 127.01 | -9.65 | 58.40 | 0.1933 | 827.0 | 730.3 | |
| 0.00 | 1.26 | 0.00 | 0.64 | 11.51 | 126.08 | -10.57 | 63.35 | 0.2021 | 961.0 | 902.9 | |
| 0.00 | 2.08 | 0.00 | 1.05 | 10.93 | 126.04 | -10.61 | 66.10 | 0.1987 | 1124.0 | 929.9 | |
| 0.00 | 2.98 | 0.00 | 1.51 | 11.01 | 125.88 | -10.78 | 65.99 | 0.2018 | 1000.0 | 864.1 | |
| 0.00 | 1.17 | 0.00 | 0.59 | 6.36 | 125.92 | -10.74 | 89.80 | 0.1860 | 895.0 | 722.2 | |
| 0.00 | 2.71 | 0.00 | 1.37 | 8.64 | 125.74 | -10.92 | 77.83 | 0.1925 | 863.0 | 648.8 | |
| 0.00 | 1.44 | 0.00 | 0.73 | 11.16 | 125.34 | -11.32 | 66.32 | 0.2112 | 853.0 | 644.7 | |
| 0.99 | 13.00 | 0.50 | 6.58 | 10.18 | 125.31 | -11.34 | 70.79 | 0.2059 | 1015.5 | 808.0 | |
| 3.79 | 24.29 | 1.92 | 12.31 | 10.72 | 125.10 | -11.55 | 68.63 | 0.2123 | 1237.2 | 864.7 | |
| 3.52 | -15.00 | 1.79 | -15.00 | 10.94 | 125.10 | -11.56 | 67.70 | 0.2136 | 1198.3 | 999999 | |
| 2.44 | -15.00 | 1.24 | -15.00 | 10.96 | 124.87 | -11.78 | 67.94 | 0.2173 | 1123.1 | 999999 | |
| 0.00 | 1.26 | 0.00 | 0.64 | 11.63 | 124.62 | -12.03 | 65.53 | 0.2253 | 875.0 | 717.1 | |
| 0.00 | 1.99 | 0.00 | 1.01 | 10.32 | 124.65 | -12.01 | 71.10 | 0.2174 | 992.0 | 780.9 | |
| 5.42 | 13.72 | 2.75 | 6.97 | 10.80 | 124.44 | -12.22 | 69.29 | 0.2233 | 1089.6 | 748.0 | |
| 6.95 | 27.35 | 3.53 | 13.90 | 10.07 | 124.34 | -12.32 | 72.59 | 0.2211 | 1163.7 | 479.1 | |
| 1.53 | -20.00 | 0.78 | -20.00 | 10.89 | 124.24 | -12.41 | 69.20 | 0.2268 | 849.5 | 999999 | |
| 0.00 | 2.71 | 0.00 | 1.38 | 11.05 | 123.48 | -13.18 | 69.56 | 0.2399 | 951.0 | 782.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
