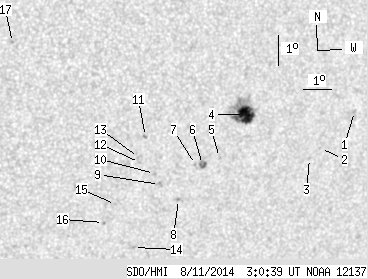

SDO HMI 2014-08-11 03:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 24.10 | 75.82 | 14.50 | 45.54 | -17.71 | 161.51 | 24.85 | 225.03 | 0.5680 | 634.5 | 466.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-11 03:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.63 | 0.00 | 1.02 | -17.29 | 166.11 | 29.45 | 230.39 | 0.6116 | 735.0 | 631.3 | |
| 0.00 | 0.72 | 0.00 | 0.45 | -18.46 | 165.08 | 28.42 | 227.88 | 0.6108 | 444.0 | 298.6 | |
| 0.00 | 0.99 | 0.00 | 0.62 | -18.78 | 164.73 | 28.07 | 227.14 | 0.6101 | 567.0 | 443.5 | |
| 24.10 | 50.29 | 14.50 | 30.19 | -17.17 | 162.14 | 25.48 | 226.50 | 0.5688 | 906.0 | 514.7 | |
| 0.00 | 1.35 | 0.00 | 0.82 | -18.57 | 161.47 | 24.81 | 223.93 | 0.5755 | 672.0 | 579.3 | |
| 0.00 | 5.33 | 0.00 | 3.21 | -18.77 | 160.90 | 24.24 | 223.02 | 0.5719 | 887.0 | 743.1 | |
| 0.00 | 1.08 | 0.00 | 0.65 | -18.76 | 160.65 | 23.99 | 222.75 | 0.5694 | 772.0 | 587.4 | |
| 0.00 | 1.53 | 0.00 | 0.93 | -19.92 | 160.23 | 23.57 | 220.83 | 0.5772 | 731.0 | 560.0 | |
| 0.00 | 2.71 | 0.00 | 1.62 | -19.37 | 159.48 | 22.82 | 220.59 | 0.5646 | 783.0 | 626.5 | |
| 0.00 | 1.63 | 0.00 | 0.97 | -18.99 | 159.25 | 22.59 | 220.77 | 0.5584 | 792.0 | 698.8 | |
| 0.00 | 1.63 | 0.00 | 0.96 | -17.74 | 158.77 | 22.11 | 221.75 | 0.5404 | -679.0 | -450.6 | |
| 0.00 | 1.26 | 0.00 | 0.75 | -18.60 | 158.67 | 22.02 | 220.54 | 0.5487 | 653.0 | 574.0 | |
| 0.00 | 1.26 | 0.00 | 0.75 | -18.43 | 158.62 | 21.96 | 220.68 | 0.5464 | 844.0 | 616.7 | |
| 0.00 | 1.35 | 0.00 | 0.82 | -21.49 | 158.89 | 22.23 | 217.40 | 0.5819 | -699.0 | -543.4 | |
| 0.00 | 0.81 | 0.00 | 0.48 | -19.98 | 158.03 | 21.38 | 218.05 | 0.5579 | -633.0 | -447.8 | |
| 0.00 | 1.08 | 0.00 | 0.65 | -20.58 | 157.70 | 21.04 | 216.93 | 0.5616 | -397.0 | -483.1 | |
| 0.00 | 1.17 | 0.00 | 0.65 | -14.45 | 153.95 | 17.30 | 219.31 | 0.4563 | 743.0 | 616.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
