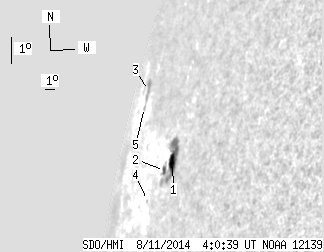

SDO HMI 2014-08-11 04:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.03 | 47.04 | 20.91 | 117.60 | 14.07 | 56.39 | -79.71 | 76.88 | 0.9793 | -274.5 | -19.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-11 04:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.31 | 36.66 | 17.16 | 76.71 | 13.67 | 58.93 | -77.18 | 77.46 | 0.9717 | -383.6 | -183.3 | |
| 1.72 | -1.00 | 3.75 | -1.00 | 13.33 | 58.11 | -78.00 | 77.76 | 0.9749 | -96.9 | 999999 | |
| 0.00 | 8.13 | 0.00 | 33.02 | 15.15 | 51.68 | -84.42 | 75.46 | 0.9930 | 306.0 | 203.9 | |
| 0.00 | 0.72 | 0.00 | 1.79 | 12.23 | 56.61 | -79.50 | 78.79 | 0.9805 | -239.0 | -190.9 | |
| 0.00 | 1.53 | 0.00 | 6.08 | 14.62 | 51.81 | -84.30 | 76.00 | 0.9929 | 317.0 | 315.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
