groupProj. UProj. WSCorr. UCorr. WS BLLCMPos. angler MU MP

12134 0.00 39.26 0.00 25.10 10.82 174.49 38.92 279.60 0.6246 13.0 13.4


previous   or   next   observation for the same group / back to the solar disc

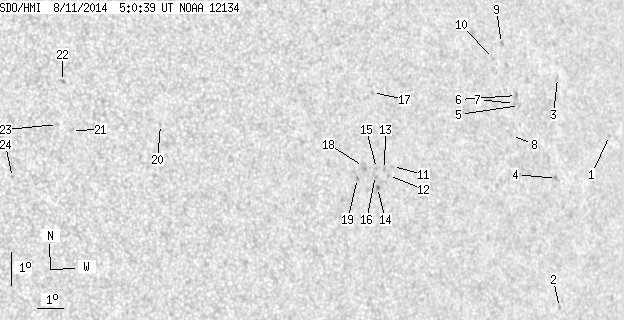

SDO HMI 2014-08-11 05:00:39 UT
No observation available
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)


spotProj. UProj. WSCorr. UCorr. WSBLLCMPos. angler MU MP

1 0.00 1.44 0.00 1.06 10.23 183.45 47.89 278.00 0.7395 -575.0 -440.4
2 0.00 1.08 0.00 0.76 5.22 180.49 44.92 270.92 0.7056 -461.0 -428.4
3 0.00 1.63 0.00 1.15 12.18 181.50 45.93 280.75 0.7172 -482.0 -370.3
4 0.00 2.26 0.00 1.58 9.13 180.86 45.30 276.48 0.7086 -796.0 -678.1
5 0.00 1.17 0.00 0.81 11.46 179.67 44.11 279.86 0.6946 -449.0 -391.3
6 0.00 2.89 0.00 1.98 11.77 179.60 44.04 280.31 0.6940 -650.0 -515.8
7 0.00 1.08 0.00 0.74 11.54 179.47 43.90 279.98 0.6922 -539.0 -471.0
8 0.00 0.63 0.00 0.43 10.58 179.15 43.59 278.61 0.6878 -542.0 -468.9
9 0.00 2.17 0.00 1.48 13.40 179.30 43.74 282.69 0.6917 -655.0 -573.4
10 0.00 0.90 0.00 0.61 12.97 178.86 43.30 282.12 0.6858 -640.0 -572.1
11 0.00 1.26 0.00 0.80 10.00 174.17 38.60 277.98 0.6227 399.0 281.6
12 0.00 0.90 0.00 0.57 9.74 173.97 38.41 277.57 0.6200 523.0 431.7
13 0.00 1.26 0.00 0.80 9.93 173.84 38.28 277.89 0.6183 622.0 415.1
14 0.00 1.63 0.00 1.02 9.40 173.49 37.93 277.05 0.6133 771.0 670.4
15 0.00 0.90 0.00 0.57 9.98 173.53 37.97 278.00 0.6141 705.0 628.1
16 0.00 2.53 0.00 1.58 9.77 173.46 37.90 277.66 0.6131 725.0 603.5
17 0.00 1.26 0.00 0.80 12.30 173.74 38.18 281.74 0.6190 465.0 350.8
18 0.00 5.24 0.00 3.26 10.08 173.04 37.48 278.19 0.6074 704.0 546.4
19 0.00 1.26 0.00 0.78 9.73 172.76 37.20 277.63 0.6034 767.0 727.4
20 0.00 1.26 0.00 0.72 11.82 165.68 30.12 282.47 0.5051 594.0 482.8
21 0.00 1.63 0.00 0.90 11.80 162.53 26.97 283.36 0.4582 -486.0 -394.2
22 0.00 2.35 0.00 1.31 13.31 162.39 26.83 286.66 0.4603 591.0 442.7
23 0.00 1.54 0.00 0.85 12.01 162.07 26.50 283.98 0.4517 -803.0 -614.8
24 0.00 0.99 0.00 0.54 10.47 160.37 24.81 281.05 0.4221 523.0 444.0


  		• Proj. U -  Projected umbra area in millionths of solar disc, negative values indicate
    that the umbra consists of fragmented regions which cannot be separated without losing umbral area.
    In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that
    the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
  		• Proj. WS -  Projected whole spot area in millionths of solar disc, negative values indicate
    that several umbras have a common penumbra, e.g. -7 means that the given umbra shares
    a penumbra with umbra No.7, and the WS value is indicated at No.7.
  		• Corr. U -  Corrected umbra area in millionths of solar hemisphere, for negative values see above
  		• Corr. WS -  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
  		• B -  Heliographic latitude B; positive: North, negative: South
  		• L -  Heliographic longitude L
  		• LCM -  Longitudinal distance from the Sun's central meridian
  		• Pos. angle -  Position angle
  		• r -  Distance from the centre of Sun's disc in terms of Sun's radius
  		• MU -  Mean magnetic field within the umbra contour averaged the pixel values with sign.
  		• MP -  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
