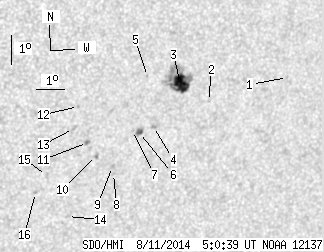

SDO HMI 2014-08-11 05:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19.69 | 75.75 | 11.96 | 45.92 | -17.82 | 161.44 | 25.88 | 226.06 | 0.5797 | 615.4 | 465.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-11 05:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.81 | 0.00 | 0.51 | -17.19 | 166.10 | 30.54 | 231.51 | 0.6224 | 758.0 | 575.7 | |
| 0.00 | 1.17 | 0.00 | 0.72 | -17.82 | 163.33 | 27.76 | 228.05 | 0.5985 | 539.0 | 435.9 | |
| 17.88 | 49.66 | 10.86 | 30.11 | -17.16 | 162.21 | 26.65 | 227.77 | 0.5810 | 949.9 | 556.5 | |
| 0.00 | 1.90 | 0.00 | 1.16 | -18.55 | 161.47 | 25.91 | 225.17 | 0.5863 | 692.0 | 597.2 | |
| 0.00 | 0.99 | 0.00 | 0.60 | -16.87 | 161.00 | 25.44 | 226.86 | 0.5656 | 780.0 | 562.7 | |
| 1.81 | 3.79 | 1.10 | 2.31 | -18.73 | 161.00 | 25.44 | 224.43 | 0.5833 | 872.0 | 679.5 | |
| 0.00 | 0.54 | 0.00 | 0.33 | -18.65 | 160.74 | 25.18 | 224.24 | 0.5800 | 491.0 | 520.3 | |
| 0.00 | 0.99 | 0.00 | 0.61 | -20.07 | 160.30 | 24.74 | 221.98 | 0.5897 | 485.0 | 410.0 | |
| 0.00 | 1.35 | 0.00 | 0.83 | -19.83 | 160.22 | 24.66 | 222.19 | 0.5866 | 675.0 | 619.5 | |
| 0.00 | 2.17 | 0.00 | 1.31 | -19.43 | 159.59 | 24.03 | 221.95 | 0.5766 | 749.0 | 647.8 | |
| 0.00 | 2.80 | 0.00 | 1.68 | -18.97 | 159.20 | 23.64 | 222.06 | 0.5682 | 902.0 | 725.5 | |
| 0.00 | 0.99 | 0.00 | 0.59 | -17.75 | 158.71 | 23.15 | 223.03 | 0.5508 | -574.0 | -374.9 | |
| 0.00 | 3.25 | 0.00 | 1.94 | -18.48 | 158.64 | 23.08 | 222.01 | 0.5577 | 713.0 | 602.1 | |
| 0.00 | 1.72 | 0.00 | 1.05 | -21.47 | 158.89 | 23.33 | 218.73 | 0.5913 | -684.0 | -497.7 | |
| 0.00 | 2.08 | 0.00 | 1.25 | -20.03 | 157.92 | 22.36 | 219.23 | 0.5673 | -126.0 | -207.7 | |
| 0.00 | 1.54 | 0.00 | 0.92 | -20.59 | 157.62 | 22.06 | 218.20 | 0.5707 | -699.0 | -557.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
