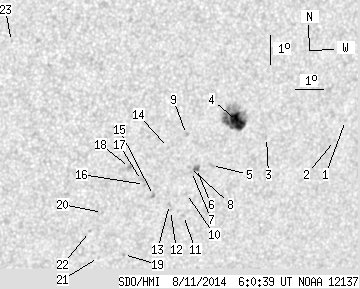

SDO HMI 2014-08-11 06:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.33 | 78.35 | 11.20 | 47.80 | -17.86 | 161.51 | 26.50 | 226.65 | 0.5863 | 611.8 | 523.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-11 06:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.90 | 0.00 | 0.58 | -17.37 | 166.25 | 31.24 | 231.90 | 0.6312 | 614.0 | 504.1 | |
| 0.00 | 1.26 | 0.00 | 0.81 | -18.01 | 165.97 | 30.95 | 230.81 | 0.6333 | 411.0 | 377.0 | |
| 0.00 | 0.63 | 0.00 | 0.39 | -17.76 | 163.42 | 28.40 | 228.77 | 0.6046 | 741.0 | 602.3 | |
| 16.98 | 46.69 | 10.37 | 28.46 | -17.16 | 162.27 | 27.26 | 228.40 | 0.5874 | 956.4 | 600.8 | |
| 0.00 | 2.62 | 0.00 | 1.61 | -18.59 | 161.57 | 26.56 | 225.82 | 0.5931 | 750.0 | 539.4 | |
| 1.35 | 3.97 | 0.83 | 2.43 | -18.66 | 161.05 | 26.03 | 225.17 | 0.5885 | 902.6 | 700.1 | |
| 0.00 | 0.90 | 0.00 | 0.55 | -18.75 | 160.88 | 25.87 | 224.87 | 0.5878 | 671.0 | 588.3 | |
| 0.00 | 1.90 | 0.00 | 1.16 | -18.61 | 160.79 | 25.78 | 224.95 | 0.5855 | 720.0 | 449.6 | |
| 0.00 | 1.72 | 0.00 | 1.03 | -17.50 | 160.51 | 25.49 | 226.08 | 0.5721 | 776.0 | 594.3 | |
| 0.00 | 0.63 | 0.00 | 0.39 | -19.49 | 160.83 | 25.81 | 223.89 | 0.5943 | 324.0 | 196.7 | |
| 0.00 | 1.17 | 0.00 | 0.73 | -20.23 | 160.85 | 25.84 | 223.01 | 0.6017 | 474.0 | 398.0 | |
| 0.00 | 0.90 | 0.00 | 0.56 | -20.04 | 160.35 | 25.33 | 222.70 | 0.5950 | 505.0 | 404.5 | |
| 0.00 | 1.44 | 0.00 | 0.89 | -19.83 | 160.28 | 25.26 | 222.87 | 0.5923 | 852.0 | 647.6 | |
| 0.00 | 0.90 | 0.00 | 0.54 | -17.90 | 159.93 | 24.92 | 224.91 | 0.5701 | 522.0 | 411.6 | |
| 0.00 | 2.44 | 0.00 | 1.48 | -19.49 | 159.65 | 24.64 | 222.58 | 0.5830 | 736.0 | 599.4 | |
| 0.00 | 0.99 | 0.00 | 0.60 | -19.11 | 159.27 | 24.26 | 222.62 | 0.5755 | 596.0 | 572.9 | |
| 0.00 | 2.08 | 0.00 | 1.25 | -18.96 | 159.14 | 24.13 | 222.65 | 0.5728 | 785.0 | 700.3 | |
| 0.00 | 3.07 | 0.00 | 1.84 | -18.50 | 158.65 | 23.64 | 222.65 | 0.5634 | 874.0 | 688.1 | |
| 0.00 | 1.08 | 0.00 | 0.67 | -21.46 | 158.91 | 23.90 | 219.40 | 0.5962 | -542.0 | -493.1 | |
| 0.00 | 0.99 | 0.00 | 0.60 | -19.98 | 157.93 | 22.91 | 219.96 | 0.5719 | -371.0 | -323.0 | |
| 0.00 | 0.54 | 0.00 | 0.33 | -21.52 | 158.03 | 23.02 | 218.30 | 0.5891 | -374.0 | -371.8 | |
| 0.00 | 0.90 | 0.00 | 0.55 | -20.61 | 157.57 | 22.55 | 218.78 | 0.5753 | -632.0 | -481.9 | |
| 0.00 | 0.63 | 0.00 | 0.35 | -14.16 | 154.13 | 19.12 | 222.57 | 0.4714 | 601.0 | 467.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
