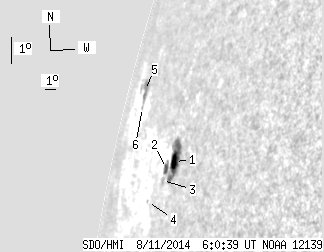

SDO HMI 2014-08-11 06:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.84 | 52.37 | 21.12 | 123.95 | 14.14 | 55.86 | -79.15 | 76.85 | 0.9772 | -277.1 | -32.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-11 06:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.22 | 37.11 | 15.81 | 71.97 | 13.69 | 58.89 | -76.12 | 77.50 | 0.9673 | -390.7 | -235.3 | |
| 2.62 | -1.00 | 5.31 | -1.00 | 13.39 | 58.10 | -76.91 | 77.77 | 0.9706 | -190.8 | 999999 | |
| 0.00 | 2.08 | 0.00 | 4.25 | 13.00 | 57.94 | -77.07 | 78.16 | 0.9714 | -59.0 | -52.5 | |
| 0.00 | 0.27 | 0.00 | 0.62 | 12.19 | 56.53 | -78.48 | 78.90 | 0.9770 | -260.0 | -249.7 | |
| 0.00 | 11.74 | 0.00 | 43.04 | 15.10 | 51.29 | -83.72 | 75.56 | 0.9916 | 153.0 | 173.8 | |
| 0.00 | 1.17 | 0.00 | 4.07 | 14.62 | 51.85 | -83.16 | 76.09 | 0.9904 | 395.0 | 365.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
