SDO HMI 2014-08-11 07:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 11.91 | 0.00 | 6.94 | -22.13 | 135.01 | 0.55 | 184.65 | 0.5219 | -115.8 | -177.8 | |
|
previous
or next observation for the same group /

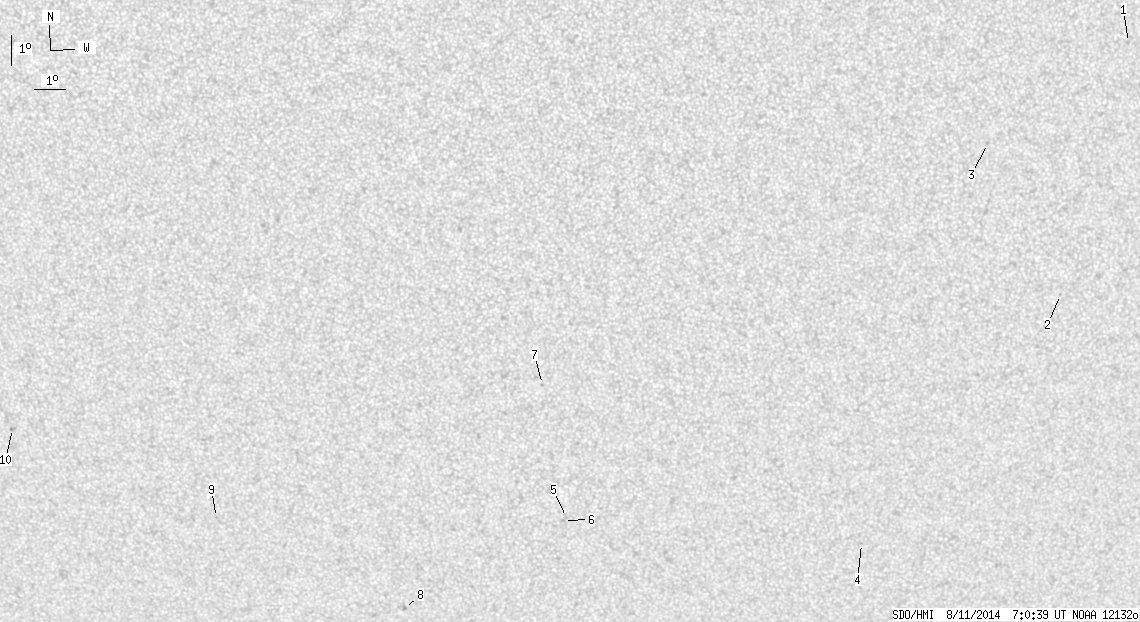

back to the solar disc SDO HMI 2014-08-11 07:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.54 | 0.00 | 0.84 | -10.60 | 152.80 | 18.33 | 227.09 | 0.4239 | 725.0 | 538.4 | |
| 0.00 | 0.72 | 0.00 | 0.41 | -18.75 | 151.22 | 16.76 | 212.95 | 0.5039 | 612.0 | 464.6 | |
| 0.00 | 1.44 | 0.00 | 0.79 | -13.69 | 148.42 | 13.96 | 214.50 | 0.4154 | 390.0 | 259.1 | |
| 0.00 | 0.63 | 0.00 | 0.38 | -27.27 | 145.31 | 10.85 | 196.83 | 0.5801 | 553.0 | 436.7 | |
| 0.00 | 0.27 | 0.00 | 0.16 | -26.19 | 135.15 | 0.69 | 181.14 | 0.5414 | -556.0 | -564.0 | |
| 0.00 | 0.99 | 0.00 | 0.58 | -26.30 | 135.05 | 0.59 | 180.97 | 0.5429 | -94.0 | -123.1 | |
| 0.00 | 1.35 | 0.00 | 0.76 | -21.50 | 134.35 | -0.12 | 179.77 | 0.4704 | -548.0 | -491.8 | |
| 0.00 | 2.08 | 0.00 | 1.28 | -29.56 | 129.50 | -4.96 | 172.70 | 0.5944 | -868.0 | -504.9 | |
| 0.00 | 0.90 | 0.00 | 0.54 | -26.31 | 123.21 | -11.25 | 162.02 | 0.5688 | -728.0 | -579.2 | |
| 0.00 | 1.99 | 0.00 | 1.20 | -23.34 | 116.50 | -17.96 | 150.06 | 0.5695 | -644.0 | -631.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
