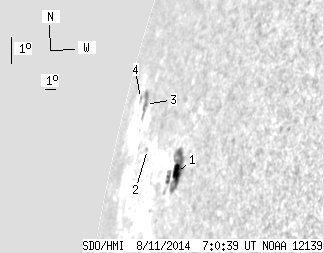

SDO HMI 2014-08-11 07:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.67 | 54.27 | 16.11 | 120.88 | 14.16 | 56.27 | -78.20 | 76.89 | 0.9738 | -346.1 | -37.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-11 07:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.67 | 41.36 | 16.11 | 77.48 | 13.69 | 58.87 | -75.60 | 77.54 | 0.9650 | -442.6 | -205.6 | |
| 0.00 | 0.72 | 0.00 | 1.88 | 13.90 | 54.17 | -80.29 | 77.03 | 0.9827 | 306.0 | 242.6 | |
| 0.00 | 10.84 | 0.00 | 36.15 | 15.05 | 51.70 | -82.77 | 75.69 | 0.9894 | 416.0 | 246.0 | |
| 0.00 | 1.35 | 0.00 | 5.37 | 15.07 | 50.19 | -84.28 | 75.55 | 0.9927 | -207.0 | -116.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
