SDO HMI 2014-08-11 08:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.55 | 56.98 | 22.74 | 126.01 | 14.20 | 55.71 | -78.20 | 76.85 | 0.9737 | -321.4 | -2.7 | |
|
previous
or next observation for the same group /

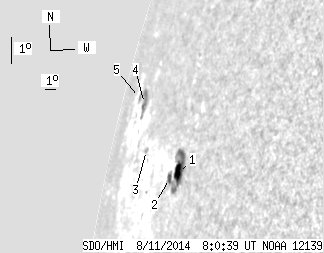

back to the solar disc SDO HMI 2014-08-11 08:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.29 | 39.82 | 18.48 | 72.04 | 13.69 | 58.95 | -74.97 | 77.57 | 0.9621 | -436.3 | -210.4 | |
| 2.26 | -1.00 | 4.26 | -1.00 | 13.41 | 58.07 | -75.85 | 77.81 | 0.9661 | -210.6 | 999999 | |
| 0.00 | 2.17 | 0.00 | 5.46 | 13.85 | 54.07 | -79.85 | 77.11 | 0.9813 | 402.0 | 340.3 | |
| 0.00 | 12.46 | 0.00 | 39.30 | 15.06 | 51.61 | -82.30 | 75.71 | 0.9882 | 418.0 | 229.1 | |
| 0.00 | 2.53 | 0.00 | 9.21 | 15.10 | 50.19 | -83.72 | 75.57 | 0.9916 | -133.0 | -83.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
