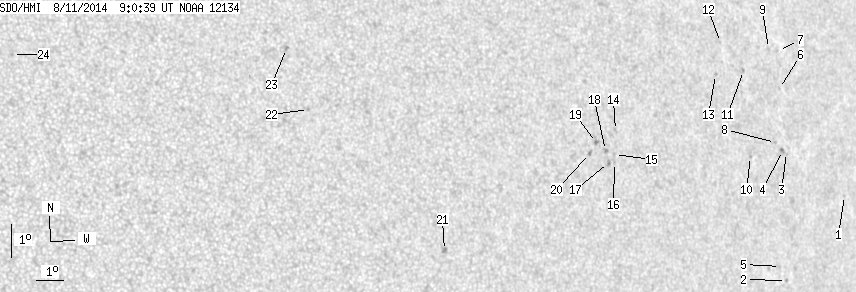

SDO HMI 2014-08-11 09:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 34.66 | 0.00 | 22.92 | 9.96 | 174.60 | 41.23 | 278.21 | 0.6542 | -27.9 | 79.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-11 09:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.90 | 0.00 | 0.69 | 7.61 | 183.65 | 50.28 | 274.54 | 0.7671 | -444.0 | -343.9 | |
| 0.00 | 1.35 | 0.00 | 0.98 | 5.27 | 180.64 | 47.27 | 271.21 | 0.7339 | -604.0 | -444.1 | |
| 0.00 | 0.90 | 0.00 | 0.66 | 9.14 | 181.18 | 47.81 | 276.51 | 0.7385 | -555.0 | -544.0 | |
| 0.00 | 1.99 | 0.00 | 1.45 | 9.21 | 181.01 | 47.64 | 276.61 | 0.7365 | -821.0 | -653.4 | |
| 0.00 | 0.72 | 0.00 | 0.52 | 5.71 | 180.41 | 47.04 | 271.80 | 0.7309 | -607.0 | -512.1 | |
| 0.00 | 1.08 | 0.00 | 0.79 | 11.09 | 181.25 | 47.88 | 279.16 | 0.7395 | -495.0 | -395.8 | |
| 0.00 | 0.81 | 0.00 | 0.60 | 12.25 | 181.47 | 48.10 | 280.71 | 0.7425 | -555.0 | -469.4 | |
| 0.00 | 0.99 | 0.00 | 0.72 | 9.48 | 180.74 | 47.37 | 276.97 | 0.7334 | -684.0 | -604.2 | |
| 0.00 | 1.08 | 0.00 | 0.79 | 12.34 | 181.02 | 47.65 | 280.87 | 0.7375 | -281.0 | -252.5 | |
| 0.00 | 0.90 | 0.00 | 0.64 | 9.15 | 179.55 | 46.18 | 276.51 | 0.7192 | -499.0 | -457.1 | |
| 0.00 | 1.44 | 0.00 | 1.03 | 11.77 | 179.75 | 46.38 | 280.16 | 0.7223 | -511.0 | -447.9 | |
| 0.00 | 0.63 | 0.00 | 0.45 | 12.70 | 178.92 | 45.55 | 281.51 | 0.7130 | -538.0 | -508.4 | |
| 0.00 | 1.35 | 0.00 | 0.95 | 11.75 | 178.49 | 45.12 | 280.20 | 0.7072 | -633.0 | -541.5 | |
| 0.00 | 1.72 | 0.00 | 1.12 | 10.37 | 174.00 | 40.63 | 278.45 | 0.6498 | 512.0 | 417.3 | |
| 0.00 | 1.72 | 0.00 | 1.11 | 9.65 | 173.84 | 40.47 | 277.34 | 0.6475 | 631.0 | 436.2 | |
| 0.00 | 0.81 | 0.00 | 0.53 | 9.41 | 173.81 | 40.44 | 276.97 | 0.6469 | 461.0 | 392.4 | |
| 0.00 | 2.35 | 0.00 | 1.52 | 9.42 | 173.57 | 40.20 | 277.00 | 0.6438 | 863.0 | 701.6 | |
| 0.00 | 2.08 | 0.00 | 1.34 | 9.79 | 173.50 | 40.13 | 277.58 | 0.6430 | 711.0 | 661.2 | |
| 0.00 | 1.90 | 0.00 | 1.22 | 10.06 | 173.18 | 39.81 | 278.02 | 0.6388 | 777.0 | 696.9 | |
| 0.00 | 1.90 | 0.00 | 1.21 | 9.75 | 172.85 | 39.48 | 277.54 | 0.6343 | 742.0 | 668.6 | |
| 0.00 | 3.16 | 0.00 | 1.88 | 7.18 | 167.00 | 33.63 | 273.29 | 0.5525 | 809.0 | 641.9 | |
| 0.00 | 1.54 | 0.00 | 0.87 | 11.75 | 162.55 | 29.18 | 282.57 | 0.4910 | -655.0 | -480.9 | |
| 0.00 | 2.35 | 0.00 | 1.33 | 13.65 | 162.00 | 28.63 | 286.60 | 0.4879 | 871.0 | 654.7 | |
| 0.00 | 0.99 | 0.00 | 0.52 | 13.89 | 152.63 | 19.26 | 292.98 | 0.3493 | 836.0 | 726.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
