SDO HMI 2014-08-11 09:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 99.13 | 518.51 | 49.63 | 259.46 | 13.63 | 132.16 | -1.21 | 310.60 | 0.1404 | -485.5 | -251.3 | |
|
previous
or next observation for the same group /

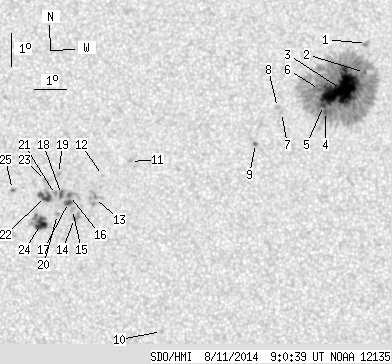

back to the solar disc SDO HMI 2014-08-11 09:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.34 | 0.00 | 1.68 | 15.64 | 134.41 | 1.04 | 353.78 | 0.1617 | -982.0 | -805.6 | |
| 0.90 | 425.13 | 0.45 | 212.60 | 14.75 | 134.34 | 0.97 | 353.55 | 0.1462 | -607.2 | -424.8 | |
| 70.43 | -2.00 | 35.22 | -2.00 | 14.23 | 133.61 | 0.24 | 358.25 | 0.1363 | -1446.6 | 999999 | |
| 1.35 | -2.00 | 0.68 | -2.00 | 13.56 | 133.11 | -0.26 | 2.01 | 0.1246 | -926.2 | 999999 | |
| 2.98 | -2.00 | 1.49 | -2.00 | 13.74 | 133.05 | -0.32 | 2.44 | 0.1278 | -1202.9 | 999999 | |
| 0.81 | -2.00 | 0.41 | -2.00 | 14.23 | 132.93 | -0.44 | 3.17 | 0.1365 | -933.8 | 999999 | |
| 0.00 | 1.72 | 0.00 | 0.86 | 13.53 | 131.74 | -1.63 | 12.64 | 0.1271 | -720.0 | -565.3 | |
| 0.00 | 2.71 | 0.00 | 1.35 | 13.68 | 131.61 | -1.76 | 13.30 | 0.1302 | -955.0 | -767.2 | |
| 0.54 | 1.63 | 0.27 | 0.81 | 12.58 | 130.93 | -2.44 | 21.19 | 0.1153 | 1002.5 | 855.0 | |
| 0.00 | 1.72 | 0.00 | 0.85 | 6.84 | 128.09 | -5.28 | 85.36 | 0.0922 | 820.0 | 666.1 | |
| 0.00 | 1.63 | 0.00 | 0.81 | 12.00 | 127.04 | -6.33 | 47.84 | 0.1461 | 957.0 | 745.7 | |
| 0.00 | 0.99 | 0.00 | 0.50 | 11.56 | 126.18 | -7.19 | 53.67 | 0.1529 | 936.0 | 699.0 | |
| 0.00 | 12.46 | 0.00 | 6.24 | 10.86 | 125.95 | -7.42 | 58.42 | 0.1496 | 972.0 | 739.1 | |
| 0.54 | 4.42 | 0.27 | 2.22 | 10.24 | 125.34 | -8.03 | 63.89 | 0.1538 | 1090.3 | 901.9 | |
| 0.00 | 2.53 | 0.00 | 1.27 | 10.51 | 125.27 | -8.10 | 62.49 | 0.1569 | 928.0 | 799.5 | |
| 0.99 | 16.61 | 0.50 | 8.34 | 10.94 | 125.16 | -8.21 | 60.41 | 0.1619 | 1214.4 | 886.3 | |
| 2.62 | -16.00 | 1.31 | -16.00 | 10.72 | 125.14 | -8.23 | 61.66 | 0.1606 | 1263.2 | 999999 | |
| 1.81 | -16.00 | 0.91 | -16.00 | 10.97 | 124.91 | -8.46 | 60.97 | 0.1659 | 1160.9 | 999999 | |
| 0.00 | 1.26 | 0.00 | 0.64 | 11.60 | 124.80 | -8.57 | 57.98 | 0.1729 | 1005.0 | 888.6 | |
| 0.00 | 1.99 | 0.00 | 1.00 | 10.35 | 124.80 | -8.57 | 64.61 | 0.1629 | 812.0 | 582.3 | |
| 0.00 | 1.90 | 0.00 | 0.95 | 10.96 | 124.72 | -8.64 | 61.50 | 0.1687 | 1152.0 | 893.0 | |
| 6.68 | 12.73 | 3.36 | 6.40 | 10.90 | 124.41 | -8.96 | 62.65 | 0.1729 | 1038.2 | 705.5 | |
| 0.00 | 3.70 | 0.00 | 1.86 | 11.38 | 124.40 | -8.97 | 60.19 | 0.1770 | 664.0 | 668.8 | |
| 9.12 | 19.78 | 4.58 | 9.94 | 10.07 | 124.31 | -9.06 | 67.32 | 0.1688 | 1160.7 | 688.9 | |
| 0.36 | 2.26 | 0.18 | 1.14 | 11.09 | 123.37 | -10.00 | 64.08 | 0.1903 | 971.8 | 823.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
