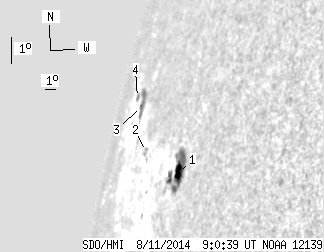

SDO HMI 2014-08-11 09:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.84 | 59.32 | 18.52 | 125.76 | 14.17 | 55.79 | -77.58 | 76.92 | 0.9713 | -241.9 | -36.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-11 09:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.76 | 40.72 | 15.26 | 71.27 | 13.68 | 58.89 | -74.48 | 77.60 | 0.9598 | -413.8 | -242.1 | |
| 0.00 | 3.52 | 0.00 | 8.42 | 13.82 | 54.09 | -79.27 | 77.18 | 0.9794 | 377.0 | 303.6 | |
| 1.08 | 12.73 | 3.26 | 38.05 | 14.96 | 51.52 | -81.85 | 75.85 | 0.9870 | 319.8 | 225.8 | |
| 0.00 | 2.35 | 0.00 | 8.02 | 15.10 | 50.22 | -83.15 | 75.61 | 0.9903 | -69.0 | -99.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
