SDO HMI 2014-08-11 10:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.89 | 63.29 | 31.97 | 130.30 | 14.10 | 55.64 | -77.18 | 77.01 | 0.9698 | -162.7 | -14.1 | |
|
previous
or next observation for the same group /

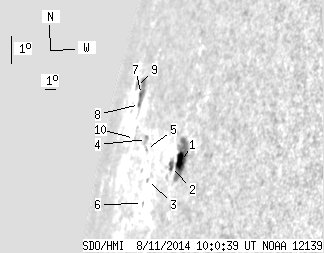

back to the solar disc SDO HMI 2014-08-11 10:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.56 | 36.21 | 19.47 | 60.90 | 13.68 | 58.94 | -73.88 | 77.63 | 0.9569 | -433.5 | -238.3 | |
| 2.44 | 4.24 | 4.31 | 7.51 | 13.43 | 58.10 | -74.72 | 77.84 | 0.9610 | -240.6 | -117.6 | |
| 0.00 | 0.90 | 0.00 | 1.87 | 12.73 | 55.61 | -77.21 | 78.43 | 0.9720 | -109.0 | -74.8 | |
| 0.00 | 3.43 | 0.00 | 7.85 | 13.86 | 54.19 | -78.63 | 77.18 | 0.9771 | 351.0 | 279.1 | |
| 0.00 | 1.08 | 0.00 | 2.42 | 13.58 | 54.53 | -78.29 | 77.49 | 0.9760 | -11.0 | -17.7 | |
| 0.00 | 0.45 | 0.00 | 0.94 | 12.01 | 55.59 | -77.23 | 79.17 | 0.9723 | 45.0 | -5.6 | |
| 2.08 | 13.91 | 5.91 | 39.30 | 14.99 | 51.60 | -81.22 | 75.86 | 0.9853 | 311.4 | 214.7 | |
| 0.81 | -7.00 | 2.28 | -7.00 | 14.69 | 51.70 | -81.12 | 76.17 | 0.9850 | 358.6 | 999999 | |
| 0.00 | 2.35 | 0.00 | 7.59 | 15.10 | 50.24 | -82.58 | 75.65 | 0.9889 | 38.0 | -63.1 | |
| 0.00 | 0.72 | 0.00 | 1.92 | 13.68 | 52.30 | -80.52 | 77.23 | 0.9835 | 328.0 | 342.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
