SDO HMI 2014-08-11 11:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 23.92 | 66.24 | 15.00 | 41.56 | -17.87 | 161.62 | 29.35 | 229.50 | 0.6159 | 687.8 | 441.9 | |
|
previous
or next observation for the same group /

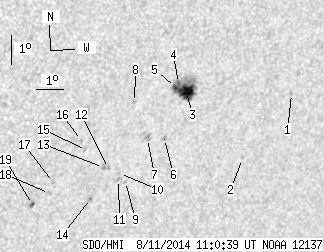

back to the solar disc SDO HMI 2014-08-11 11:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.44 | 0.00 | 0.95 | -17.42 | 166.37 | 34.09 | 234.18 | 0.6619 | 657.0 | 457.0 | |
| 0.00 | 0.99 | 0.00 | 0.65 | -19.49 | 164.94 | 32.67 | 230.43 | 0.6624 | 516.0 | 408.5 | |
| 18.87 | 42.52 | 11.85 | 26.66 | -17.10 | 162.35 | 30.08 | 231.22 | 0.6167 | 911.4 | 462.9 | |
| 1.35 | -3.00 | 0.85 | -3.00 | -16.81 | 162.01 | 29.74 | 231.28 | 0.6107 | 834.6 | 999999 | |
| 2.62 | -3.00 | 1.63 | -3.00 | -16.94 | 161.92 | 29.65 | 231.03 | 0.6108 | 925.6 | 999999 | |
| 0.00 | 1.90 | 0.00 | 1.20 | -18.63 | 161.82 | 29.55 | 228.75 | 0.6238 | 787.0 | 617.0 | |
| 0.00 | 3.43 | 0.00 | 2.15 | -18.59 | 161.19 | 28.92 | 228.20 | 0.6170 | 851.0 | 694.7 | |
| 0.00 | 0.90 | 0.00 | 0.56 | -17.35 | 160.50 | 28.22 | 229.13 | 0.5992 | 730.0 | 632.5 | |
| 0.00 | 1.08 | 0.00 | 0.69 | -20.00 | 160.65 | 28.38 | 225.91 | 0.6240 | 486.0 | 482.7 | |
| 0.00 | 1.17 | 0.00 | 0.74 | -19.72 | 160.37 | 28.10 | 225.99 | 0.6188 | 820.0 | 665.3 | |
| 0.00 | 1.81 | 0.00 | 1.14 | -19.92 | 160.38 | 28.11 | 225.75 | 0.6206 | 732.0 | 571.4 | |
| 0.00 | 0.99 | 0.00 | 0.62 | -19.52 | 159.94 | 27.66 | 225.79 | 0.6127 | 734.0 | 666.3 | |
| 0.00 | 2.26 | 0.00 | 1.41 | -19.48 | 159.75 | 27.47 | 225.65 | 0.6104 | 784.0 | 683.2 | |
| 0.00 | 1.26 | 0.00 | 0.79 | -20.51 | 159.47 | 27.19 | 224.11 | 0.6172 | 786.0 | 681.6 | |
| 0.00 | 0.63 | 0.00 | 0.39 | -18.87 | 159.02 | 26.75 | 225.67 | 0.5976 | 518.0 | 504.4 | |
| 0.00 | 0.90 | 0.00 | 0.55 | -18.52 | 158.78 | 26.51 | 225.86 | 0.5920 | 686.0 | 575.1 | |
| 0.00 | 1.17 | 0.00 | 0.72 | -19.89 | 158.01 | 25.74 | 223.32 | 0.5974 | -556.0 | -482.6 | |
| 0.00 | 1.53 | 0.00 | 0.95 | -20.26 | 157.93 | 25.66 | 222.79 | 0.6002 | -371.0 | -350.4 | |
| 1.08 | 2.26 | 0.67 | 1.39 | -20.60 | 157.38 | 25.11 | 221.77 | 0.5985 | -813.1 | -661.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
