SDO HMI 2014-08-11 12:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.18 | 75.73 | 21.65 | 148.41 | 14.20 | 55.18 | -76.54 | 76.94 | 0.9671 | -208.9 | 14.0 | |
|
previous
or next observation for the same group /

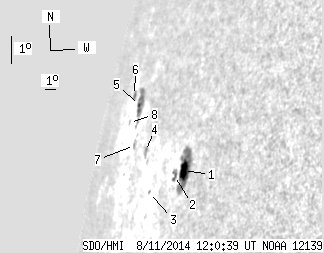

back to the solar disc SDO HMI 2014-08-11 12:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.20 | 40.80 | 16.23 | 64.78 | 13.72 | 58.84 | -72.88 | 77.63 | 0.9519 | -411.2 | -230.7 | |
| 0.00 | 5.60 | 0.00 | 9.31 | 13.48 | 58.04 | -73.68 | 77.85 | 0.9560 | -345.0 | -179.8 | |
| 0.00 | 0.81 | 0.00 | 1.56 | 12.69 | 55.68 | -76.04 | 78.54 | 0.9672 | -164.0 | -114.2 | |
| 0.00 | 3.88 | 0.00 | 8.26 | 13.79 | 53.99 | -77.73 | 77.30 | 0.9738 | 381.0 | 315.9 | |
| 1.17 | 18.69 | 3.06 | 47.97 | 14.96 | 51.41 | -80.31 | 75.95 | 0.9825 | 285.3 | 241.9 | |
| 0.81 | 2.89 | 2.36 | 8.43 | 15.13 | 50.08 | -81.64 | 75.69 | 0.9864 | -18.3 | -47.2 | |
| 0.00 | 1.62 | 0.00 | 4.00 | 13.79 | 52.21 | -79.51 | 77.20 | 0.9802 | 364.0 | 372.3 | |
| 0.00 | 1.44 | 0.00 | 4.10 | 14.32 | 50.44 | -81.28 | 76.54 | 0.9856 | 42.0 | 36.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
