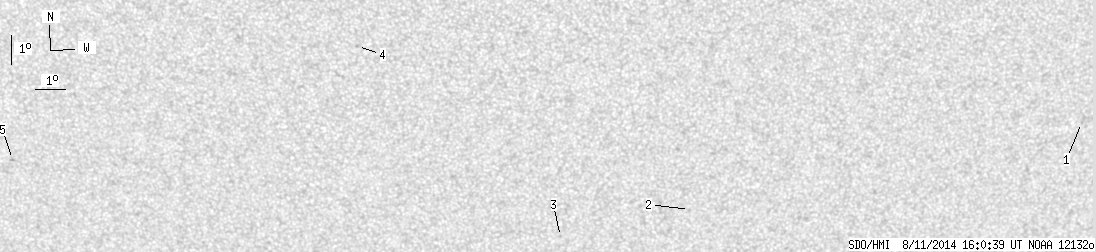

SDO HMI 2014-08-11 16:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 5.49 | 0.00 | 3.24 | -23.89 | 127.27 | -2.24 | 175.91 | 0.5387 | -346.0 | -328.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-11 16:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.81 | 0.00 | 0.49 | -23.37 | 148.27 | 18.75 | 210.98 | 0.5756 | 689.0 | 598.1 | |
| 0.00 | 0.90 | 0.00 | 0.53 | -26.10 | 135.08 | 5.57 | 189.21 | 0.5466 | -452.0 | -465.8 | |
| 0.00 | 0.81 | 0.00 | 0.48 | -27.04 | 130.72 | 1.20 | 181.94 | 0.5542 | -659.0 | -549.3 | |
| 0.00 | 1.53 | 0.00 | 0.86 | -20.38 | 124.08 | -5.44 | 168.86 | 0.4613 | -722.0 | -493.8 | |
| 0.00 | 1.44 | 0.00 | 0.88 | -24.57 | 112.12 | -17.39 | 151.97 | 0.5806 | -586.0 | -481.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
