SDO HMI 2014-08-11 16:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.35 | 30.11 | 0.80 | 20.43 | 11.63 | 172.07 | 42.56 | 280.76 | 0.6695 | -56.1 | -34.8 | |
|
previous
or next observation for the same group /

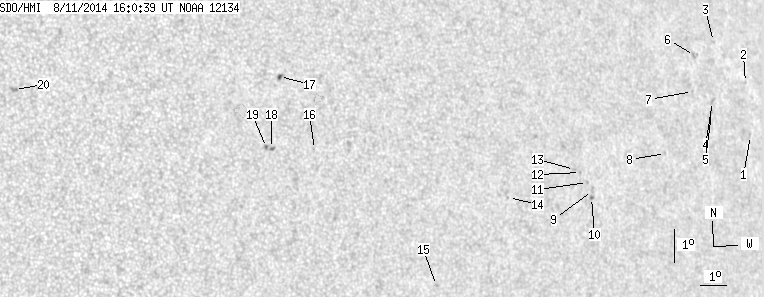

back to the solar disc SDO HMI 2014-08-11 16:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.72 | 0.00 | 0.57 | 10.66 | 181.32 | 51.80 | 278.52 | 0.7832 | -457.0 | -345.4 | |
| 0.00 | 0.99 | 0.00 | 0.79 | 12.28 | 181.49 | 51.97 | 280.58 | 0.7853 | -466.0 | -397.1 | |
| 0.00 | 1.26 | 0.00 | 0.98 | 13.65 | 180.28 | 50.77 | 282.41 | 0.7730 | -514.0 | -461.9 | |
| 0.00 | 2.62 | 0.00 | 2.01 | 11.85 | 179.73 | 50.22 | 280.08 | 0.7662 | -557.0 | -453.1 | |
| 0.00 | 0.90 | 0.00 | 0.69 | 11.52 | 179.60 | 50.09 | 279.66 | 0.7646 | -510.0 | -449.8 | |
| 0.00 | 3.43 | 0.00 | 2.61 | 13.31 | 179.25 | 49.73 | 282.02 | 0.7615 | -653.0 | -504.3 | |
| 0.00 | 0.72 | 0.00 | 0.54 | 12.23 | 178.86 | 49.35 | 280.62 | 0.7567 | -611.0 | -565.1 | |
| 0.00 | 0.63 | 0.00 | 0.46 | 10.46 | 177.18 | 47.67 | 278.31 | 0.7370 | -490.0 | -440.1 | |
| 0.00 | 2.35 | 0.00 | 1.61 | 9.60 | 173.77 | 44.26 | 277.17 | 0.6958 | 603.0 | 471.3 | |
| 0.00 | 1.62 | 0.00 | 1.12 | 9.40 | 173.69 | 44.18 | 276.87 | 0.6948 | 727.0 | 574.1 | |
| 0.00 | 1.26 | 0.00 | 0.87 | 9.86 | 173.60 | 44.09 | 277.55 | 0.6937 | 597.0 | 541.3 | |
| 0.00 | 1.08 | 0.00 | 0.74 | 10.19 | 173.35 | 43.84 | 278.02 | 0.6908 | 635.0 | 541.4 | |
| 0.00 | 1.26 | 0.00 | 0.86 | 10.30 | 173.11 | 43.60 | 278.19 | 0.6878 | 608.0 | 487.9 | |
| 0.00 | 0.81 | 0.00 | 0.53 | 9.66 | 170.25 | 40.74 | 277.34 | 0.6510 | 543.0 | 460.7 | |
| 0.00 | 1.08 | 0.00 | 0.67 | 7.20 | 167.09 | 37.58 | 273.43 | 0.6084 | 662.0 | 571.2 | |
| 0.00 | 0.63 | 0.00 | 0.37 | 11.62 | 162.99 | 33.48 | 281.35 | 0.5532 | -646.0 | -425.1 | |
| 0.99 | 2.26 | 0.59 | 1.33 | 13.92 | 162.03 | 32.52 | 285.75 | 0.5443 | 867.8 | 665.1 | |
| 0.36 | 1.89 | 0.21 | 1.11 | 11.74 | 161.42 | 31.91 | 281.89 | 0.5309 | -803.0 | -703.2 | |
| 0.00 | 1.80 | 0.00 | 1.05 | 11.79 | 161.24 | 31.73 | 282.01 | 0.5284 | -906.0 | -745.5 | |
| 0.00 | 2.80 | 0.00 | 1.52 | 14.01 | 152.64 | 23.13 | 290.22 | 0.4079 | 784.0 | 718.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
