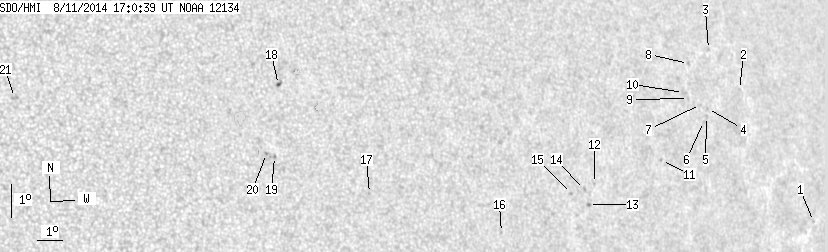

SDO HMI 2014-08-11 17:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.72 | 26.30 | 0.43 | 18.16 | 11.63 | 172.43 | 43.47 | 280.81 | 0.6802 | -65.9 | -28.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-11 17:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.90 | 0.00 | 0.78 | 7.98 | 184.28 | 55.32 | 275.24 | 0.8200 | -322.0 | -317.3 | |
| 0.00 | 0.81 | 0.00 | 0.65 | 12.30 | 181.45 | 52.49 | 280.59 | 0.7907 | -460.0 | -392.4 | |
| 0.00 | 1.08 | 0.00 | 0.85 | 13.64 | 180.27 | 51.31 | 282.35 | 0.7788 | -514.0 | -422.0 | |
| 0.00 | 0.63 | 0.00 | 0.49 | 11.86 | 179.72 | 50.76 | 280.08 | 0.7721 | -550.0 | -486.0 | |
| 0.00 | 1.71 | 0.00 | 1.33 | 11.63 | 179.61 | 50.65 | 279.78 | 0.7709 | -487.0 | -471.2 | |
| 0.00 | 0.45 | 0.00 | 0.35 | 11.49 | 179.43 | 50.47 | 279.60 | 0.7688 | -506.0 | -461.4 | |
| 0.00 | 0.27 | 0.00 | 0.21 | 12.01 | 179.41 | 50.46 | 280.29 | 0.7688 | -631.0 | -589.3 | |
| 0.00 | 1.53 | 0.00 | 1.18 | 13.30 | 179.18 | 50.22 | 281.98 | 0.7668 | -686.0 | -575.5 | |
| 0.00 | 0.99 | 0.00 | 0.76 | 12.24 | 178.89 | 49.93 | 280.61 | 0.7631 | -619.0 | -522.8 | |
| 0.00 | 1.80 | 0.00 | 1.37 | 12.44 | 178.70 | 49.74 | 280.88 | 0.7611 | -232.0 | -355.5 | |
| 0.00 | 1.17 | 0.00 | 0.87 | 10.48 | 177.19 | 48.23 | 278.31 | 0.7435 | -537.0 | -372.8 | |
| 0.00 | 0.99 | 0.00 | 0.69 | 10.03 | 174.07 | 45.12 | 277.75 | 0.7065 | 530.0 | 434.1 | |
| 0.00 | 1.62 | 0.00 | 1.13 | 9.41 | 173.71 | 44.75 | 276.88 | 0.7018 | 770.0 | 626.7 | |
| 0.00 | 1.44 | 0.00 | 1.00 | 9.88 | 173.61 | 44.65 | 277.55 | 0.7007 | 613.0 | 543.6 | |
| 0.00 | 0.99 | 0.00 | 0.68 | 9.80 | 173.03 | 44.08 | 277.45 | 0.6936 | 712.0 | 549.8 | |
| 0.00 | 1.17 | 0.00 | 0.77 | 8.84 | 169.95 | 40.99 | 276.08 | 0.6541 | 493.0 | 374.4 | |
| 0.00 | 0.99 | 0.00 | 0.61 | 10.39 | 164.95 | 35.99 | 278.83 | 0.5872 | 699.0 | 587.9 | |
| 0.72 | 2.53 | 0.43 | 1.50 | 13.91 | 162.04 | 33.08 | 285.57 | 0.5521 | 856.1 | 716.0 | |
| 0.00 | 1.17 | 0.00 | 0.69 | 11.73 | 161.56 | 32.61 | 281.72 | 0.5409 | -746.0 | -664.6 | |
| 0.00 | 1.08 | 0.00 | 0.63 | 11.84 | 161.28 | 32.33 | 281.98 | 0.5371 | -921.0 | -776.2 | |
| 0.00 | 2.98 | 0.00 | 1.62 | 14.01 | 152.64 | 23.68 | 289.88 | 0.4161 | 757.0 | 628.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
