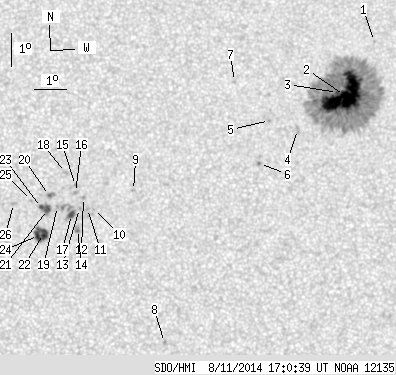

SDO HMI 2014-08-11 17:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 87.42 | 478.91 | 43.80 | 240.14 | 13.90 | 132.53 | 3.57 | 301.25 | 0.1530 | -424.7 | -305.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-11 17:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.81 | 0.00 | 0.41 | 16.04 | 134.72 | 5.76 | 330.00 | 0.1939 | -758.0 | -578.9 | |
| 67.03 | 407.57 | 33.64 | 204.58 | 14.39 | 133.73 | 4.77 | 329.83 | 0.1610 | -1457.5 | -448.1 | |
| 0.27 | -2.00 | 0.14 | -2.00 | 14.48 | 133.51 | 4.55 | 331.26 | 0.1606 | -1018.7 | 999999 | |
| 0.00 | 3.25 | 0.00 | 1.62 | 13.36 | 132.24 | 3.28 | 335.23 | 0.1334 | -898.0 | -688.2 | |
| 0.00 | 1.17 | 0.00 | 0.59 | 13.64 | 131.36 | 2.41 | 341.97 | 0.1324 | -1137.0 | -865.5 | |
| 0.00 | 1.44 | 0.00 | 0.72 | 12.33 | 131.04 | 2.08 | 340.93 | 0.1090 | 1175.0 | 965.0 | |
| 0.00 | 1.26 | 0.00 | 0.63 | 14.84 | 130.28 | 1.32 | 351.33 | 0.1484 | -35.0 | -105.3 | |
| 0.00 | 1.71 | 0.00 | 0.85 | 6.89 | 128.09 | -0.87 | 62.60 | 0.0170 | 859.0 | 674.3 | |
| 0.00 | 1.35 | 0.00 | 0.67 | 11.51 | 127.13 | -1.83 | 19.52 | 0.0942 | 835.0 | 686.9 | |
| 0.00 | 0.72 | 0.00 | 0.36 | 10.93 | 125.89 | -3.07 | 33.86 | 0.0947 | 935.0 | 785.8 | |
| 0.00 | 1.53 | 0.00 | 0.76 | 10.96 | 125.71 | -3.25 | 35.25 | 0.0970 | 1036.0 | 822.9 | |
| 0.00 | 1.08 | 0.00 | 0.54 | 11.29 | 125.58 | -3.38 | 34.33 | 0.1030 | 1028.0 | 893.8 | |
| 0.00 | 1.26 | 0.00 | 0.63 | 10.96 | 125.46 | -3.50 | 37.25 | 0.0995 | 917.0 | 831.1 | |
| 0.00 | 3.70 | 0.00 | 1.84 | 10.32 | 125.40 | -3.56 | 42.03 | 0.0916 | 1071.0 | 929.5 | |
| 0.00 | 1.08 | 0.00 | 0.54 | 11.66 | 125.33 | -3.63 | 34.28 | 0.1107 | 959.0 | 887.7 | |
| 0.00 | 2.71 | 0.00 | 1.35 | 11.44 | 125.33 | -3.63 | 35.40 | 0.1076 | 1167.0 | 844.2 | |
| 2.71 | 12.36 | 1.35 | 6.15 | 10.77 | 125.21 | -3.75 | 40.31 | 0.0997 | 1206.9 | 904.1 | |
| 0.00 | 2.17 | 0.00 | 1.08 | 12.05 | 125.01 | -3.95 | 34.52 | 0.1194 | 787.0 | 650.5 | |
| 0.00 | 1.44 | 0.00 | 0.72 | 11.01 | 124.77 | -4.18 | 41.86 | 0.1078 | 995.0 | 760.8 | |
| 0.63 | 3.79 | 0.31 | 1.89 | 11.35 | 124.52 | -4.44 | 41.49 | 0.1150 | 1029.7 | 821.1 | |
| 2.98 | 9.47 | 1.48 | 4.72 | 10.92 | 124.47 | -4.49 | 44.48 | 0.1103 | 1258.1 | 853.7 | |
| 6.77 | 15.70 | 3.37 | 7.82 | 10.19 | 124.35 | -4.61 | 50.31 | 0.1032 | 1220.1 | 794.1 | |
| 1.80 | -21.00 | 0.90 | -21.00 | 10.98 | 124.28 | -4.68 | 45.25 | 0.1133 | 999.7 | 999999 | |
| 5.23 | -22.00 | 2.61 | -22.00 | 10.13 | 124.20 | -4.76 | 51.68 | 0.1046 | 1026.9 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.59 | 11.19 | 123.96 | -4.99 | 45.77 | 0.1197 | 757.0 | 617.8 | |
| 0.00 | 2.17 | 0.00 | 1.08 | 11.09 | 123.41 | -5.55 | 49.34 | 0.1257 | 870.0 | 710.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
