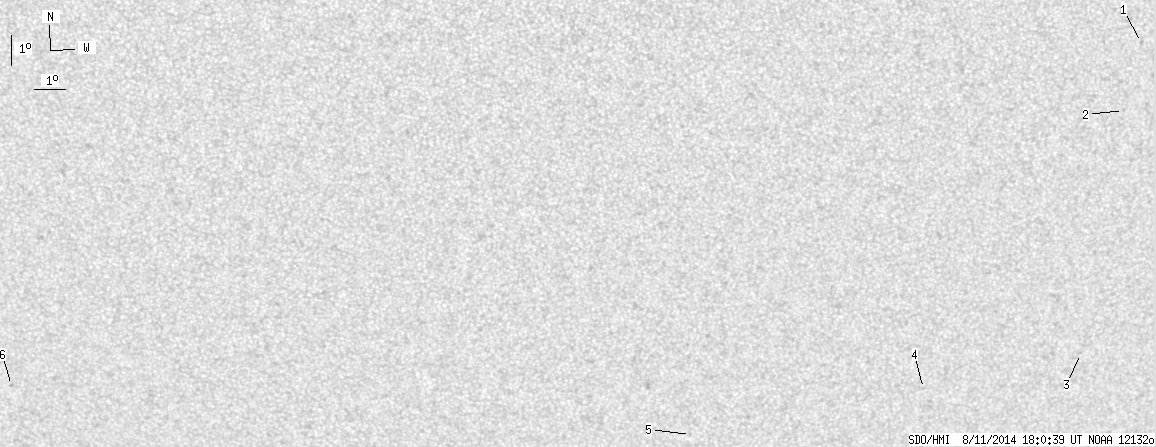

SDO HMI 2014-08-11 18:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 6.03 | 0.00 | 3.55 | -20.01 | 141.13 | 12.73 | 205.86 | 0.5303 | 12.7 | 50.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-11 18:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.80 | 0.00 | 1.02 | -13.24 | 149.13 | 20.73 | 226.25 | 0.4789 | 740.0 | 520.2 | |
| 0.00 | 0.99 | 0.00 | 0.57 | -15.43 | 148.74 | 20.33 | 222.47 | 0.4981 | 669.0 | 526.4 | |
| 0.00 | 0.63 | 0.00 | 0.39 | -23.62 | 148.32 | 19.91 | 212.24 | 0.5872 | 647.0 | 518.9 | |
| 0.00 | 0.90 | 0.00 | 0.54 | -24.65 | 142.98 | 14.58 | 204.03 | 0.5641 | -572.0 | -429.2 | |
| 0.00 | 0.99 | 0.00 | 0.59 | -26.11 | 135.13 | 6.73 | 191.07 | 0.5498 | -686.0 | -592.6 | |
| 0.00 | 0.72 | 0.00 | 0.44 | -24.56 | 112.13 | -16.27 | 153.50 | 0.5733 | -722.0 | -613.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
