SDO HMI 2014-08-11 20:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.81 | 57.78 | 8.53 | 38.34 | -17.90 | 161.56 | 34.26 | 233.66 | 0.6679 | 623.8 | 431.6 | |
|
previous
or next observation for the same group /

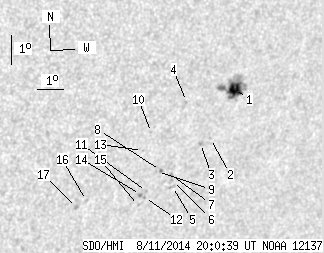

back to the solar disc SDO HMI 2014-08-11 20:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.45 | 37.25 | 8.29 | 24.78 | -16.94 | 162.47 | 35.17 | 235.59 | 0.6703 | 932.7 | 465.6 | |
| 0.00 | 0.99 | 0.00 | 0.66 | -18.52 | 161.89 | 34.59 | 233.15 | 0.6750 | 516.0 | 437.6 | |
| 0.00 | 1.62 | 0.00 | 1.08 | -18.66 | 161.53 | 34.24 | 232.70 | 0.6724 | 785.0 | 682.9 | |
| 0.00 | 0.72 | 0.00 | 0.47 | -17.21 | 160.68 | 33.38 | 233.86 | 0.6531 | 446.0 | 466.8 | |
| 0.00 | 2.44 | 0.00 | 1.63 | -20.05 | 160.77 | 33.48 | 230.38 | 0.6749 | 414.0 | 416.8 | |
| 0.00 | 0.54 | 0.00 | 0.36 | -19.85 | 160.72 | 33.43 | 230.59 | 0.6729 | 672.0 | 596.5 | |
| 0.00 | 1.80 | 0.00 | 1.20 | -19.68 | 160.64 | 33.35 | 230.74 | 0.6708 | 769.0 | 649.2 | |
| 0.36 | 1.44 | 0.24 | 0.95 | -19.48 | 160.17 | 32.88 | 230.60 | 0.6646 | 811.2 | 651.0 | |
| 0.00 | 1.44 | 0.00 | 0.95 | -19.50 | 160.06 | 32.77 | 230.47 | 0.6637 | 661.0 | 476.0 | |
| 0.00 | 0.99 | 0.00 | 0.64 | -18.17 | 159.54 | 32.25 | 231.71 | 0.6482 | 631.0 | 520.5 | |
| 0.00 | 1.08 | 0.00 | 0.72 | -20.16 | 159.79 | 32.49 | 229.45 | 0.6660 | 641.0 | 516.5 | |
| 0.00 | 1.08 | 0.00 | 0.72 | -20.36 | 159.76 | 32.47 | 229.18 | 0.6673 | 587.0 | 541.2 | |
| 0.00 | 0.36 | 0.00 | 0.23 | -18.75 | 159.32 | 32.03 | 230.79 | 0.6504 | 385.0 | 494.0 | |
| 0.00 | 1.80 | 0.00 | 1.19 | -20.25 | 159.58 | 32.28 | 229.16 | 0.6646 | 728.0 | 673.3 | |
| 0.00 | 0.99 | 0.00 | 0.66 | -20.62 | 159.59 | 32.30 | 228.72 | 0.6677 | 599.0 | 493.3 | |
| 0.00 | 1.44 | 0.00 | 0.93 | -20.32 | 157.55 | 30.25 | 227.28 | 0.6453 | -473.0 | -376.9 | |
| 0.00 | 1.80 | 0.00 | 1.17 | -20.54 | 157.22 | 29.92 | 226.72 | 0.6439 | -797.0 | -542.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
