SDO HMI 2014-08-11 20:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.21 | 25.88 | 4.37 | 15.66 | 13.49 | 162.10 | 34.80 | 284.37 | 0.5750 | 252.5 | 159.1 | |
|
previous
or next observation for the same group /

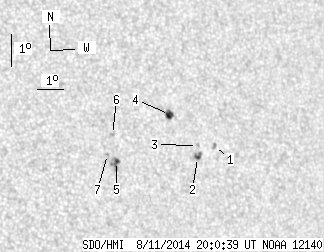

back to the solar disc SDO HMI 2014-08-11 20:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.53 | 0.00 | 1.57 | 13.31 | 164.25 | 36.95 | 283.58 | 0.6040 | -792.0 | -614.6 | |
| 1.53 | 4.42 | 0.94 | 2.72 | 13.02 | 163.53 | 36.24 | 283.23 | 0.5939 | -924.2 | -764.6 | |
| 0.00 | 1.62 | 0.00 | 1.00 | 13.39 | 163.60 | 36.30 | 283.83 | 0.5954 | -520.0 | -484.4 | |
| 4.06 | 6.13 | 2.47 | 3.74 | 14.40 | 162.70 | 35.40 | 285.75 | 0.5852 | 775.1 | 520.1 | |
| 1.62 | 8.66 | 0.96 | 5.13 | 13.09 | 160.47 | 33.17 | 284.05 | 0.5515 | 805.9 | 718.6 | |
| 0.00 | 1.71 | 0.00 | 1.02 | 13.92 | 160.45 | 33.15 | 285.55 | 0.5531 | 765.0 | 575.7 | |
| 0.00 | 0.81 | 0.00 | 0.48 | 13.33 | 160.17 | 32.87 | 284.55 | 0.5477 | 841.0 | 747.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
