SDO HMI 2014-08-11 22:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 86.12 | 497.53 | 43.36 | 250.61 | 14.06 | 132.72 | 6.53 | 324.85 | 0.1779 | -462.7 | -291.0 | |
|
previous
or next observation for the same group /

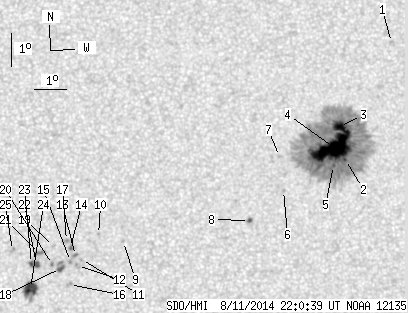

back to the solar disc SDO HMI 2014-08-11 22:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.16 | 0.00 | 1.11 | 17.64 | 135.76 | 9.57 | 320.92 | 0.2526 | -688.0 | -566.6 | |
| 0.90 | 429.81 | 0.46 | 216.90 | 14.07 | 134.13 | 7.94 | 314.83 | 0.1899 | -1073.1 | -424.3 | |
| 9.29 | -2.00 | 4.70 | -2.00 | 15.08 | 133.98 | 7.79 | 319.03 | 0.2005 | -1203.5 | 999999 | |
| 57.82 | -2.00 | 29.17 | -2.00 | 14.44 | 133.77 | 7.58 | 317.55 | 0.1901 | -1488.6 | 999999 | |
| 1.08 | -2.00 | 0.55 | -2.00 | 13.89 | 133.75 | 7.56 | 315.53 | 0.1831 | -1053.4 | 999999 | |
| 0.00 | 1.26 | 0.00 | 0.63 | 13.15 | 132.15 | 5.96 | 319.11 | 0.1553 | -788.0 | -517.1 | |
| 0.00 | 1.26 | 0.00 | 0.63 | 14.19 | 132.06 | 5.87 | 323.70 | 0.1681 | -851.0 | -575.1 | |
| 0.90 | 2.26 | 0.45 | 1.13 | 12.24 | 131.07 | 4.88 | 320.53 | 0.1314 | 1023.9 | 844.4 | |
| 0.00 | 1.26 | 0.00 | 0.63 | 11.63 | 127.15 | 0.96 | 349.70 | 0.0918 | 802.0 | 654.2 | |
| 0.00 | 1.17 | 0.00 | 0.58 | 11.84 | 126.37 | 0.18 | 358.10 | 0.0941 | 731.0 | 629.4 | |
| 0.00 | 1.26 | 0.00 | 0.63 | 11.08 | 125.84 | -0.35 | 4.21 | 0.0810 | 862.0 | 670.6 | |
| 0.00 | 2.71 | 0.00 | 1.34 | 10.90 | 125.72 | -0.47 | 5.94 | 0.0780 | 874.0 | 728.9 | |
| 0.00 | 2.26 | 0.00 | 1.12 | 11.21 | 125.66 | -0.53 | 6.29 | 0.0834 | 1111.0 | 870.5 | |
| 0.36 | 2.80 | 0.18 | 1.39 | 11.45 | 125.50 | -0.69 | 7.70 | 0.0880 | 1261.0 | 951.8 | |
| 0.00 | 2.07 | 0.00 | 1.03 | 11.02 | 125.50 | -0.69 | 8.42 | 0.0806 | 1131.0 | 897.2 | |
| 0.00 | 2.35 | 0.00 | 1.16 | 10.32 | 125.47 | -0.72 | 10.37 | 0.0686 | 917.0 | 758.6 | |
| 0.00 | 2.16 | 0.00 | 1.08 | 11.66 | 125.38 | -0.81 | 8.70 | 0.0920 | 1026.0 | 801.1 | |
| 1.98 | 7.13 | 0.99 | 3.54 | 10.81 | 125.20 | -0.99 | 12.70 | 0.0779 | 1254.1 | 983.0 | |
| 0.00 | 1.44 | 0.00 | 0.72 | 11.48 | 124.98 | -1.21 | 13.37 | 0.0902 | 688.0 | 574.8 | |
| 0.00 | 1.71 | 0.00 | 0.85 | 10.93 | 124.95 | -1.24 | 15.31 | 0.0810 | 1187.0 | 968.2 | |
| 0.00 | 4.69 | 0.00 | 2.33 | 11.27 | 124.54 | -1.65 | 18.62 | 0.0886 | 1043.0 | 880.6 | |
| 1.89 | 6.49 | 0.94 | 3.23 | 10.93 | 124.45 | -1.74 | 20.94 | 0.0837 | 1322.4 | 978.9 | |
| 0.90 | -22.00 | 0.45 | -22.00 | 10.96 | 124.30 | -1.89 | 22.48 | 0.0852 | 1103.6 | 999999 | |
| 11.00 | 19.30 | 5.47 | 9.59 | 10.20 | 124.27 | -1.92 | 26.86 | 0.0733 | 1173.8 | 578.1 | |
| 0.00 | 1.98 | 0.00 | 0.99 | 11.35 | 123.71 | -2.48 | 26.49 | 0.0957 | 849.0 | 716.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
