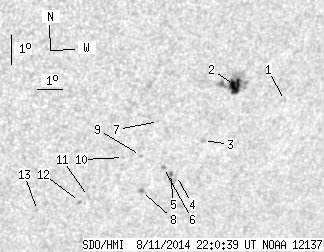

SDO HMI 2014-08-11 22:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.62 | 57.54 | 9.20 | 38.75 | -17.91 | 161.57 | 35.38 | 234.47 | 0.6795 | 596.8 | 420.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-11 22:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.44 | 0.00 | 1.01 | -17.56 | 164.62 | 38.43 | 237.06 | 0.7084 | 547.0 | 475.1 | |
| 12.90 | 35.27 | 8.71 | 23.80 | -16.91 | 162.46 | 36.27 | 236.41 | 0.6817 | 901.9 | 433.3 | |
| 0.00 | 2.44 | 0.00 | 1.65 | -18.67 | 161.64 | 35.45 | 233.60 | 0.6850 | 822.0 | 654.3 | |
| 0.00 | 0.99 | 0.00 | 0.67 | -19.79 | 160.85 | 34.66 | 231.63 | 0.6848 | 481.0 | 311.0 | |
| 0.72 | 7.13 | 0.49 | 4.83 | -19.70 | 160.60 | 34.41 | 231.54 | 0.6817 | 771.8 | 553.4 | |
| 0.00 | 1.71 | 0.00 | 1.15 | -19.48 | 160.27 | 34.08 | 231.55 | 0.6768 | 840.0 | 649.2 | |
| 0.00 | 0.45 | 0.00 | 0.30 | -17.91 | 159.72 | 33.53 | 233.08 | 0.6597 | 667.0 | 584.0 | |
| 0.00 | 2.53 | 0.00 | 1.69 | -20.24 | 159.59 | 33.41 | 230.09 | 0.6757 | 842.0 | 717.2 | |
| 0.00 | 1.08 | 0.00 | 0.71 | -19.01 | 159.27 | 33.08 | 231.33 | 0.6632 | 697.0 | 614.2 | |
| 0.00 | 0.81 | 0.00 | 0.53 | -19.04 | 158.62 | 32.43 | 230.76 | 0.6568 | 434.0 | 401.0 | |
| 0.00 | 1.62 | 0.00 | 1.06 | -20.28 | 157.57 | 31.38 | 228.33 | 0.6561 | -624.0 | -374.1 | |
| 0.00 | 1.44 | 0.00 | 0.94 | -20.43 | 157.26 | 31.07 | 227.88 | 0.6543 | -432.0 | -498.7 | |
| 0.00 | 0.63 | 0.00 | 0.41 | -20.64 | 155.72 | 29.53 | 226.22 | 0.6412 | -628.0 | -468.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
