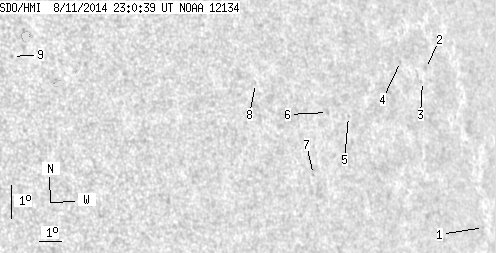

SDO HMI 2014-08-11 23:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 9.27 | 0.00 | 7.13 | 11.45 | 175.54 | 49.90 | 279.73 | 0.7599 | 97.7 | 68.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-11 23:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.54 | 0.00 | 0.48 | 7.05 | 181.98 | 56.35 | 274.15 | 0.8304 | -433.0 | -352.5 | |
| 0.00 | 1.62 | 0.00 | 1.37 | 12.11 | 180.07 | 54.43 | 280.28 | 0.8105 | -206.0 | -179.8 | |
| 0.00 | 0.45 | 0.00 | 0.38 | 11.73 | 179.80 | 54.16 | 279.82 | 0.8077 | -333.0 | -356.4 | |
| 0.00 | 1.08 | 0.00 | 0.89 | 12.44 | 178.84 | 53.21 | 280.72 | 0.7981 | -462.0 | -363.1 | |
| 0.00 | 0.81 | 0.00 | 0.62 | 11.01 | 175.84 | 50.21 | 278.96 | 0.7658 | 358.0 | 297.4 | |
| 0.00 | 1.80 | 0.00 | 1.36 | 11.21 | 174.88 | 49.24 | 279.25 | 0.7551 | 110.0 | 132.9 | |
| 0.00 | 0.99 | 0.00 | 0.73 | 9.40 | 173.84 | 48.20 | 276.83 | 0.7430 | 576.0 | 517.6 | |
| 0.00 | 0.81 | 0.00 | 0.58 | 12.36 | 171.81 | 46.17 | 280.95 | 0.7201 | 465.0 | 366.1 | |
| 0.00 | 1.17 | 0.00 | 0.72 | 13.92 | 162.00 | 36.36 | 284.68 | 0.5971 | 804.0 | 555.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
