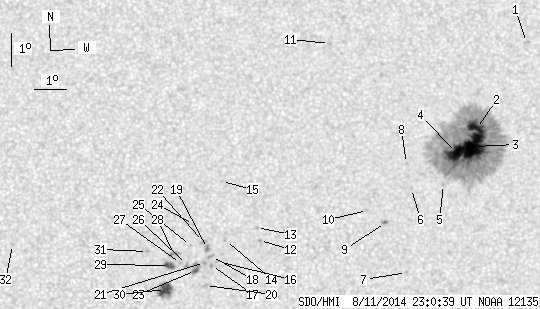

SDO HMI 2014-08-11 23:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 81.09 | 499.25 | 40.84 | 251.77 | 14.09 | 132.68 | 7.04 | 321.64 | 0.1835 | -351.4 | -304.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-11 23:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.07 | 0.00 | 1.06 | 17.66 | 135.80 | 10.16 | 319.34 | 0.2591 | -764.0 | -612.1 | |
| 11.10 | 425.60 | 5.62 | 215.06 | 15.04 | 134.06 | 8.43 | 316.70 | 0.2073 | -1198.8 | -442.1 | |
| 35.72 | -2.00 | 18.06 | -2.00 | 14.49 | 133.98 | 8.34 | 315.04 | 0.1996 | -1466.8 | 999999 | |
| 17.32 | -2.00 | 8.74 | -2.00 | 14.32 | 133.40 | 7.76 | 316.40 | 0.1907 | -1527.3 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.54 | 13.35 | 132.96 | 7.32 | 314.18 | 0.1737 | -702.0 | -513.8 | |
| 0.00 | 0.72 | 0.00 | 0.36 | 13.24 | 131.95 | 6.31 | 317.89 | 0.1603 | -758.0 | -567.6 | |
| 0.00 | 1.08 | 0.00 | 0.54 | 10.68 | 131.73 | 6.09 | 305.31 | 0.1284 | -814.0 | -602.7 | |
| 0.00 | 0.99 | 0.00 | 0.50 | 14.01 | 131.81 | 6.18 | 321.59 | 0.1688 | -675.0 | -504.5 | |
| 0.54 | 2.07 | 0.27 | 1.04 | 12.21 | 131.11 | 5.47 | 317.12 | 0.1376 | 959.8 | 792.0 | |
| 0.00 | 0.63 | 0.00 | 0.32 | 12.58 | 130.56 | 4.92 | 321.91 | 0.1363 | 642.0 | 479.1 | |
| 0.00 | 1.71 | 0.00 | 0.87 | 17.72 | 129.47 | 3.83 | 341.95 | 0.2063 | -919.0 | -675.5 | |
| 0.00 | 1.26 | 0.00 | 0.63 | 11.69 | 127.18 | 1.55 | 343.79 | 0.0951 | 838.0 | 623.6 | |
| 0.00 | 1.44 | 0.00 | 0.72 | 12.09 | 127.09 | 1.46 | 345.75 | 0.1014 | 857.0 | 630.2 | |
| 0.00 | 1.26 | 0.00 | 0.63 | 11.70 | 126.13 | 0.49 | 354.71 | 0.0918 | 885.0 | 705.2 | |
| 0.00 | 0.90 | 0.00 | 0.45 | 13.50 | 126.01 | 0.37 | 357.03 | 0.1230 | 906.0 | 629.3 | |
| 0.00 | 1.44 | 0.00 | 0.72 | 11.06 | 125.88 | 0.24 | 357.01 | 0.0803 | 845.0 | 578.1 | |
| 0.00 | 1.53 | 0.00 | 0.76 | 10.93 | 125.69 | 0.06 | 359.28 | 0.0781 | 1073.0 | 841.8 | |
| 0.00 | 2.53 | 0.00 | 1.26 | 11.21 | 125.70 | 0.06 | 359.31 | 0.0829 | 958.0 | 826.9 | |
| 0.00 | 3.34 | 0.00 | 1.66 | 11.45 | 125.57 | -0.07 | 0.74 | 0.0871 | 1306.0 | 985.3 | |
| 0.00 | 1.80 | 0.00 | 0.90 | 10.33 | 125.51 | -0.13 | 1.89 | 0.0675 | 795.0 | 656.5 | |
| 0.00 | 1.35 | 0.00 | 0.67 | 11.03 | 125.48 | -0.16 | 1.97 | 0.0797 | 1017.0 | 892.5 | |
| 0.00 | 2.62 | 0.00 | 1.30 | 11.67 | 125.45 | -0.19 | 2.05 | 0.0909 | 1032.0 | 831.2 | |
| 1.89 | 7.67 | 0.94 | 3.81 | 10.78 | 125.20 | -0.44 | 5.70 | 0.0758 | 1212.9 | 909.5 | |
| 0.00 | 0.99 | 0.00 | 0.49 | 12.18 | 125.14 | -0.50 | 4.90 | 0.1003 | 759.0 | 519.9 | |
| 0.00 | 0.99 | 0.00 | 0.49 | 11.54 | 125.04 | -0.59 | 6.54 | 0.0893 | 760.0 | 481.6 | |
| 0.00 | 2.26 | 0.00 | 1.12 | 10.97 | 124.92 | -0.72 | 8.91 | 0.0796 | 942.0 | 823.3 | |
| 0.00 | 1.26 | 0.00 | 0.63 | 11.00 | 124.74 | -0.90 | 11.09 | 0.0807 | 848.0 | 618.9 | |
| 0.00 | 3.70 | 0.00 | 1.84 | 11.27 | 124.55 | -1.09 | 12.56 | 0.0860 | 804.0 | 870.0 | |
| 3.97 | 5.95 | 1.97 | 2.96 | 10.93 | 124.40 | -1.24 | 15.30 | 0.0810 | 1207.5 | 913.3 | |
| 10.55 | 17.95 | 5.24 | 8.91 | 10.20 | 124.27 | -1.36 | 19.80 | 0.0694 | 1158.7 | 729.7 | |
| 0.00 | 1.71 | 0.00 | 0.85 | 11.36 | 123.71 | -1.92 | 21.13 | 0.0917 | 838.0 | 600.8 | |
| 0.00 | 1.35 | 0.00 | 0.68 | 11.55 | 119.52 | -6.12 | 49.58 | 0.1378 | 808.0 | 601.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
