SDO HMI 2014-08-11 23:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.51 | 48.97 | 10.54 | 33.13 | -17.96 | 161.33 | 35.69 | 234.64 | 0.6831 | 589.5 | 365.2 | |
|
previous
or next observation for the same group /

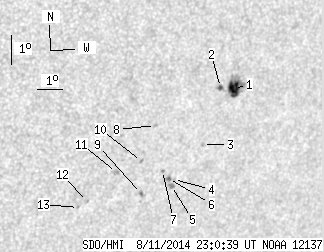

back to the solar disc SDO HMI 2014-08-11 23:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.35 | 26.79 | 9.08 | 18.23 | -16.88 | 162.46 | 36.82 | 236.82 | 0.6874 | 856.4 | 381.8 | |
| 1.44 | 2.35 | 0.97 | 1.58 | -16.81 | 161.92 | 36.29 | 236.54 | 0.6814 | 775.4 | 684.4 | |
| 0.00 | 1.26 | 0.00 | 0.86 | -18.68 | 161.65 | 36.01 | 234.00 | 0.6907 | 770.0 | 698.4 | |
| 0.00 | 1.71 | 0.00 | 1.17 | -19.79 | 160.78 | 35.14 | 232.00 | 0.6896 | 477.0 | 447.5 | |
| 0.00 | 2.80 | 0.00 | 1.91 | -19.99 | 160.75 | 35.11 | 231.73 | 0.6907 | 577.0 | 505.0 | |
| 0.72 | 2.07 | 0.49 | 1.41 | -19.74 | 160.57 | 34.93 | 231.89 | 0.6872 | 756.2 | 644.5 | |
| 0.00 | 1.17 | 0.00 | 0.79 | -19.45 | 160.26 | 34.62 | 232.01 | 0.6820 | 582.0 | 607.2 | |
| 0.00 | 1.62 | 0.00 | 1.07 | -17.91 | 159.63 | 33.99 | 233.44 | 0.6646 | 526.0 | 439.8 | |
| 0.00 | 2.35 | 0.00 | 1.58 | -20.18 | 159.61 | 33.98 | 230.62 | 0.6809 | 851.0 | 676.4 | |
| 0.00 | 1.53 | 0.00 | 1.02 | -19.09 | 159.35 | 33.72 | 231.75 | 0.6703 | 627.0 | 544.5 | |
| 0.00 | 3.07 | 0.00 | 2.03 | -19.40 | 158.46 | 32.82 | 230.64 | 0.6636 | -57.0 | -92.5 | |
| 0.00 | 1.26 | 0.00 | 0.83 | -20.31 | 157.56 | 31.92 | 228.76 | 0.6617 | -567.0 | -465.1 | |
| 0.00 | 0.99 | 0.00 | 0.65 | -20.50 | 157.26 | 31.62 | 228.27 | 0.6603 | -743.0 | -528.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
