SDO HMI 2014-08-12 00:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 25.08 | 116.47 | 33.32 | 164.02 | 14.14 | 54.79 | -70.30 | 77.28 | 0.9355 | -107.3 | 45.2 | |
|
previous
or next observation for the same group /

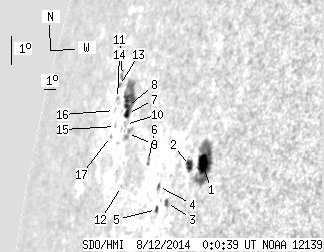

back to the solar disc SDO HMI 2014-08-12 00:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.27 | 50.16 | 14.53 | 59.29 | 13.81 | 58.98 | -66.10 | 77.75 | 0.9103 | -659.1 | -308.8 | |
| 4.15 | 7.40 | 5.10 | 9.09 | 13.65 | 58.04 | -67.05 | 77.90 | 0.9168 | -419.2 | -226.9 | |
| 0.81 | 2.53 | 1.05 | 3.26 | 12.38 | 56.85 | -68.24 | 79.26 | 0.9249 | -522.4 | -476.8 | |
| 0.00 | 2.17 | 0.00 | 2.90 | 12.78 | 55.92 | -69.16 | 78.79 | 0.9307 | -322.0 | -187.3 | |
| 1.08 | 2.26 | 1.44 | 2.99 | 12.09 | 56.15 | -68.94 | 79.54 | 0.9295 | -334.6 | -218.2 | |
| 0.00 | 3.70 | 0.00 | 5.25 | 13.45 | 54.58 | -70.51 | 78.02 | 0.9387 | -106.0 | -52.4 | |
| 3.16 | 32.21 | 5.21 | 53.63 | 14.60 | 51.52 | -73.56 | 76.69 | 0.9551 | 577.7 | 374.0 | |
| 3.61 | -7.00 | 5.99 | -7.00 | 14.80 | 51.34 | -73.74 | 76.48 | 0.9559 | 535.3 | 999999 | |
| 0.00 | 4.78 | 0.00 | 7.69 | 14.02 | 52.02 | -73.07 | 77.32 | 0.9527 | 597.0 | 507.4 | |
| 0.00 | 1.44 | 0.00 | 2.38 | 14.26 | 51.59 | -73.49 | 77.05 | 0.9548 | 586.0 | 495.3 | |
| 0.00 | 3.61 | 0.00 | 6.50 | 15.62 | 49.93 | -75.16 | 75.56 | 0.9625 | 251.0 | 143.3 | |
| 0.00 | 0.27 | 0.00 | 0.42 | 12.43 | 52.59 | -72.49 | 79.02 | 0.9501 | 429.0 | 426.7 | |
| 0.00 | 1.71 | 0.00 | 3.09 | 15.30 | 49.89 | -75.19 | 75.89 | 0.9627 | -1.0 | 36.6 | |
| 0.00 | 1.08 | 0.00 | 1.94 | 14.91 | 50.05 | -75.04 | 76.30 | 0.9621 | 209.0 | 149.4 | |
| 0.00 | 0.72 | 0.00 | 1.26 | 14.09 | 50.59 | -74.50 | 77.18 | 0.9597 | 263.0 | 224.1 | |
| 0.00 | 1.35 | 0.00 | 2.42 | 14.53 | 50.05 | -75.04 | 76.69 | 0.9622 | -201.0 | -36.3 | |
| 0.00 | 1.08 | 0.00 | 1.91 | 13.75 | 50.30 | -74.78 | 77.53 | 0.9612 | 67.0 | 103.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
